4T80-E Automatic Transaxle

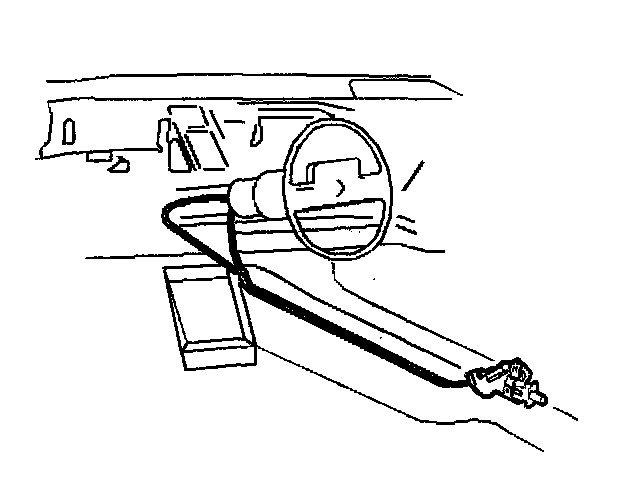

Removal Procedure
1. Remove the shift knob.
2. Remove the console and the radio trim.





3. Remove the cables from the floorshift control.
4. Remove the floorshift control.

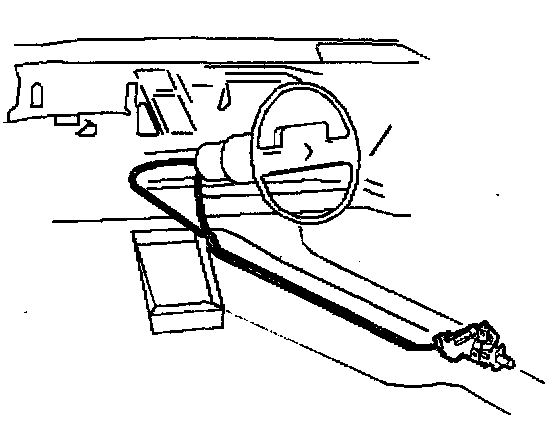

Installation Procedure





1. Install the floorshift control.
2. Install the cables to the floorshift control.
3. Install the console and the radio trim.
4. Install the shift knob.
