Shift Cable: Service and Repair

Removal Procedure

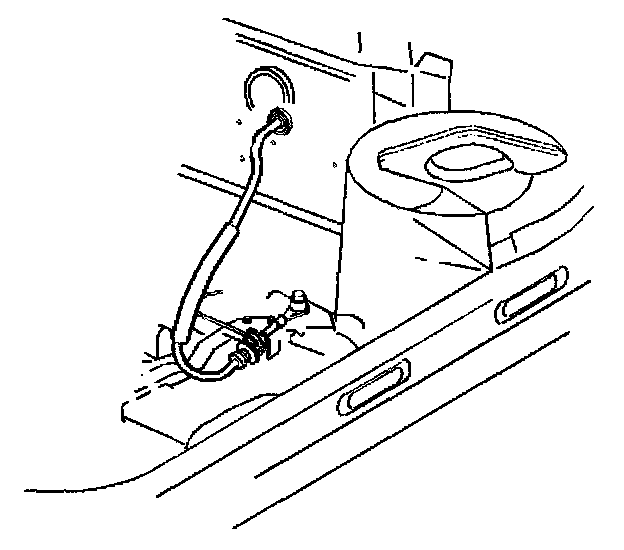

1. Remove the cable end cap from the transmission park/neutral position switch lever.





2. Remove the cable from the bracket by prying on the lock button to the unlocked position.
3. Remove the left I/P sound insulator. Refer to Sound Insulators in Instrument Panel, Gauges and Warning Indicators.
4. Remove the console center trim panel. Refer to Trim Plate Replacement-Front Floor Console in Instrument Panel, Gauges and Warning Indicators.

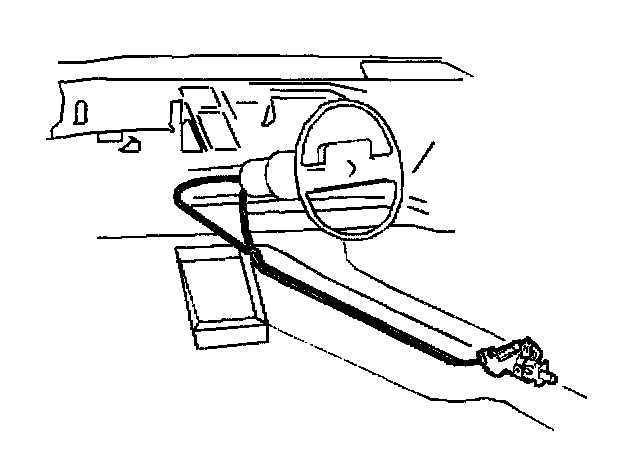

5. Remove the shift control cable from the floor shift assembly.





6. Remove the cable from the vehicle.

Installation Procedure

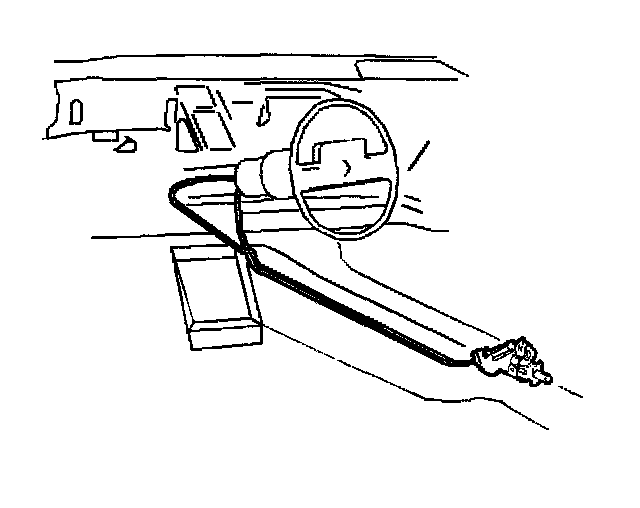

1. Install the shift control cable to the vehicle.





2. install the cable end cap to the floor shift assembly.
3. Install the console center trim panel. Refer to Trim Plate Replacement - Front Floor Console in Instrument Panel, Gauges and Warning Indicators.
4. Install the left l/P sound insulator. Refer to Sound Insulators in Instrument Panel, Gauges and warning Indicators.

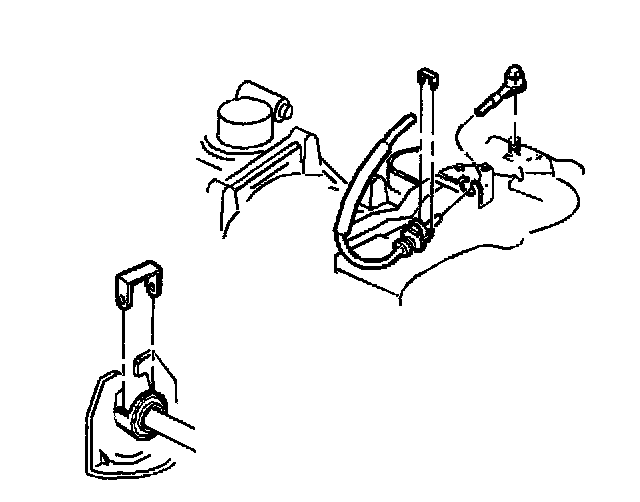

5. Install the cable into the retaining bracket. Push down on the locking tab. Refer to AT Range Selector Cable Adjustment.

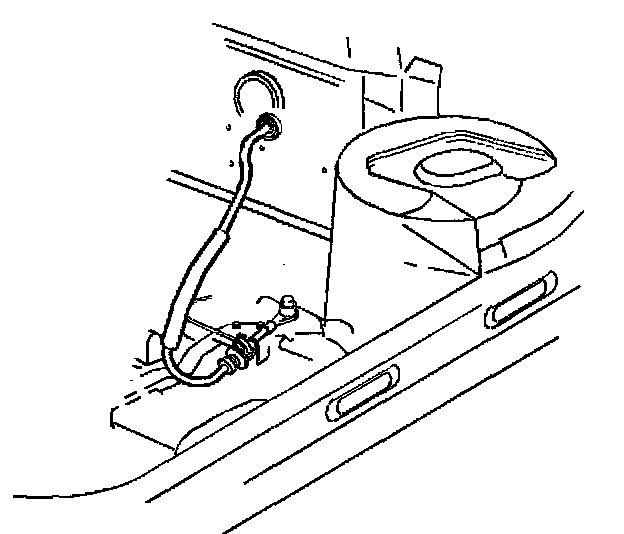

6. Install the cable end cap to the transmission position switch lever.
