Spacer Plate Fluid Passages

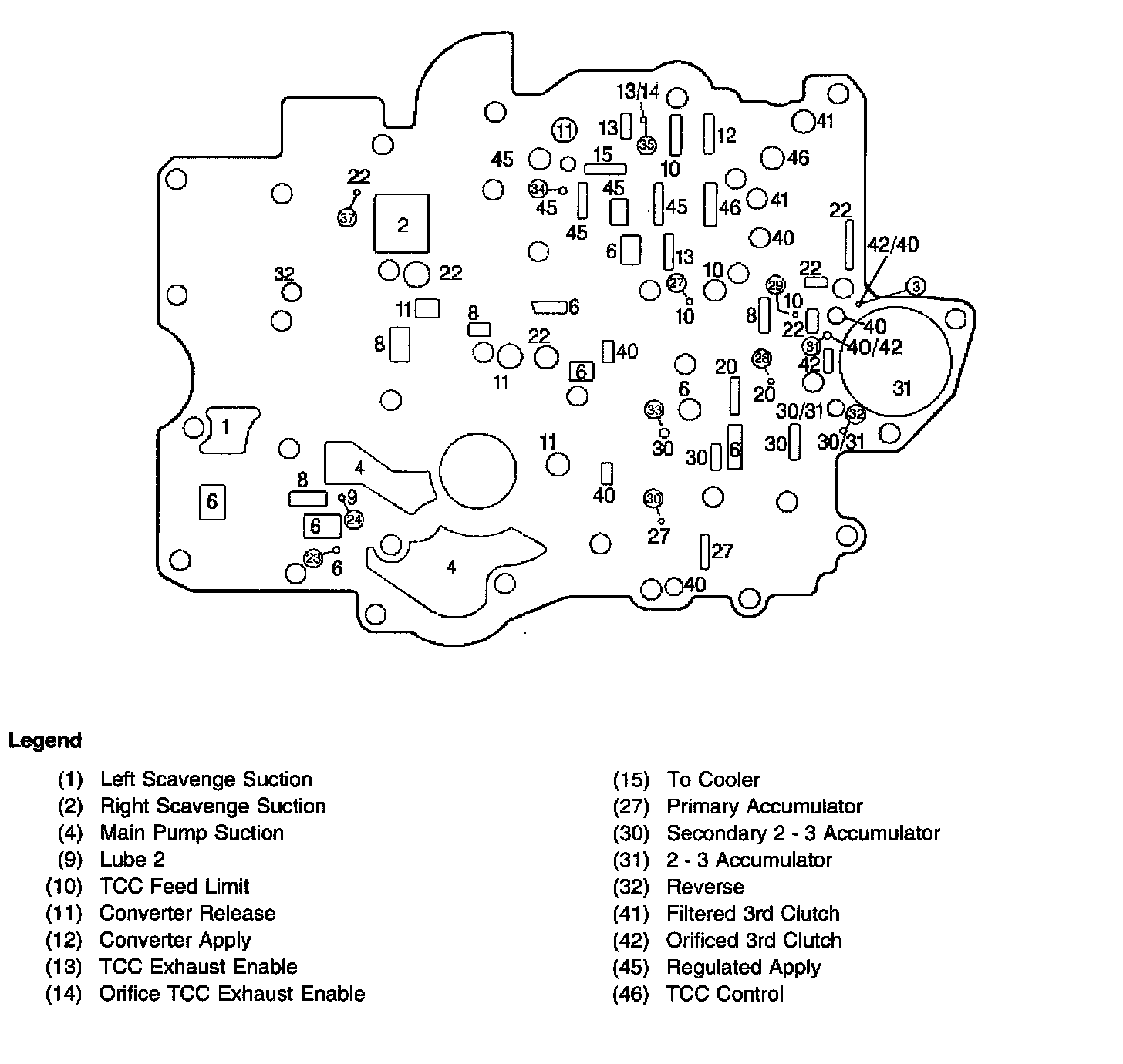

Spacer Plate Fluid Passages (Secondary Pump Body and Upper Control Valve Body to Case Cover):
