Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse Block >> Application and ID >> RH Rear Fuse Block

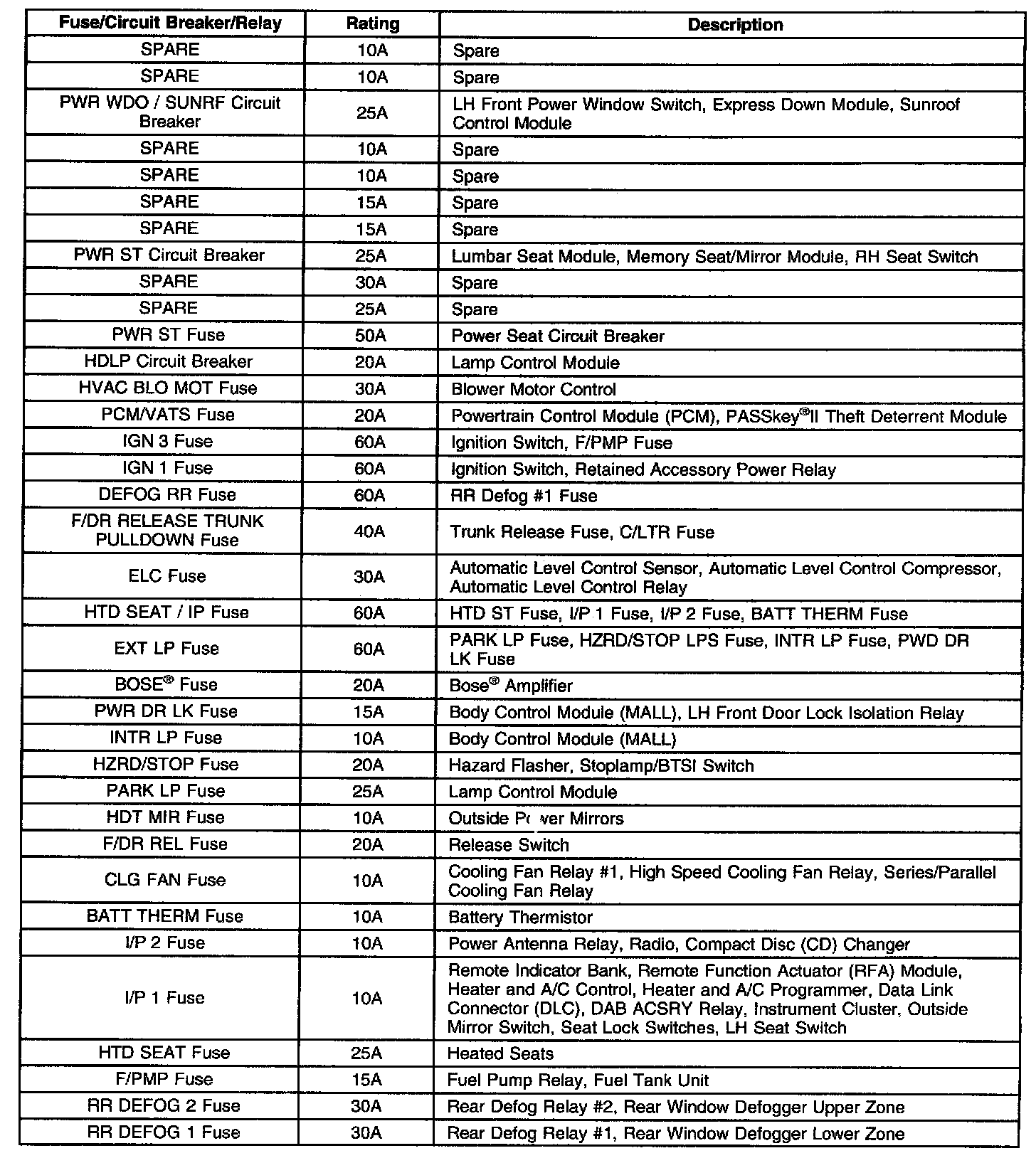

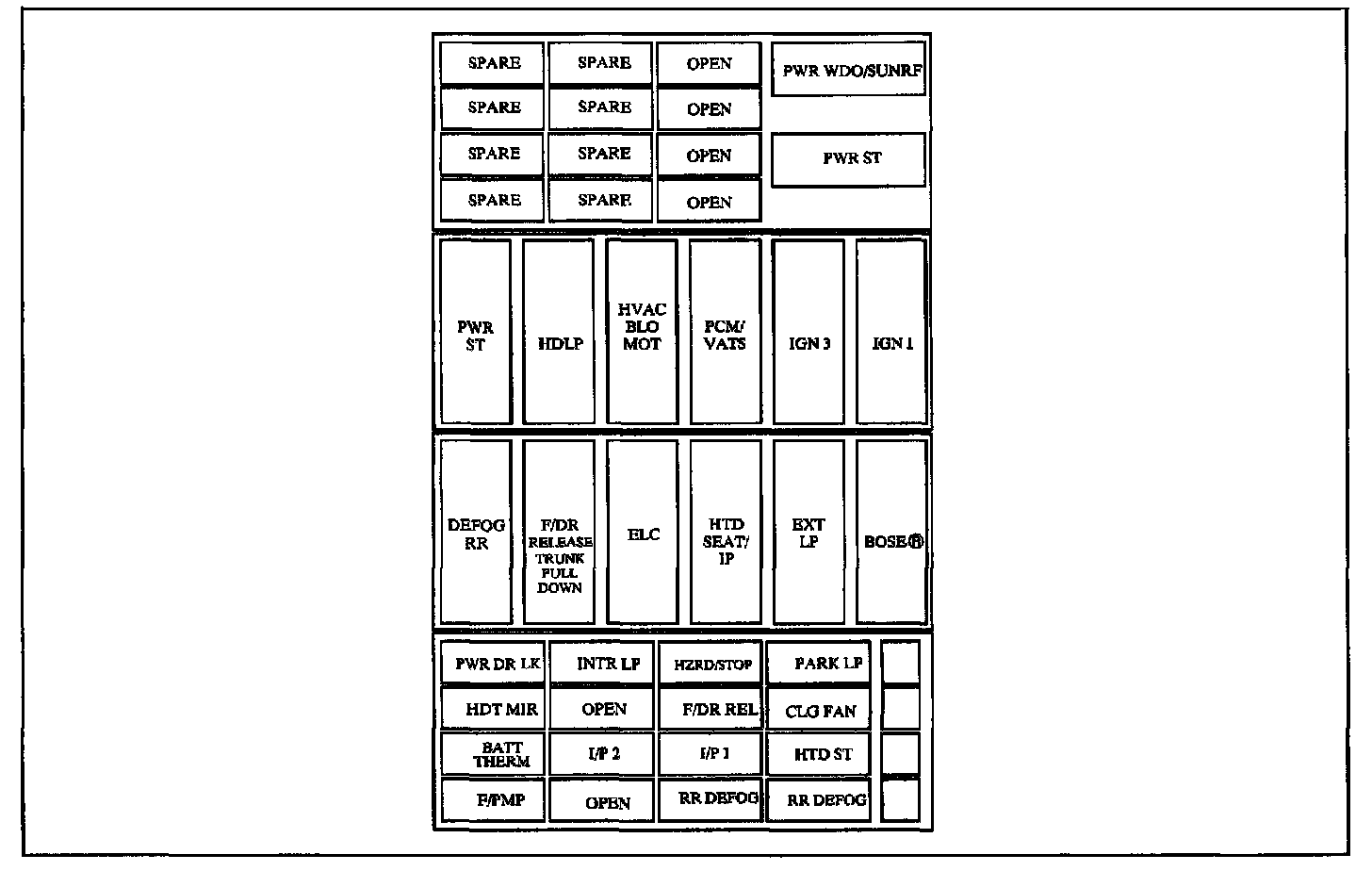

RH Rear Fuse Block

RH Rear Fuse Block (Oldsmobile):
