Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution Diagrams >> Schematics By Component Name >> Relays >> Power Antenna Relay

Power Antenna Relay

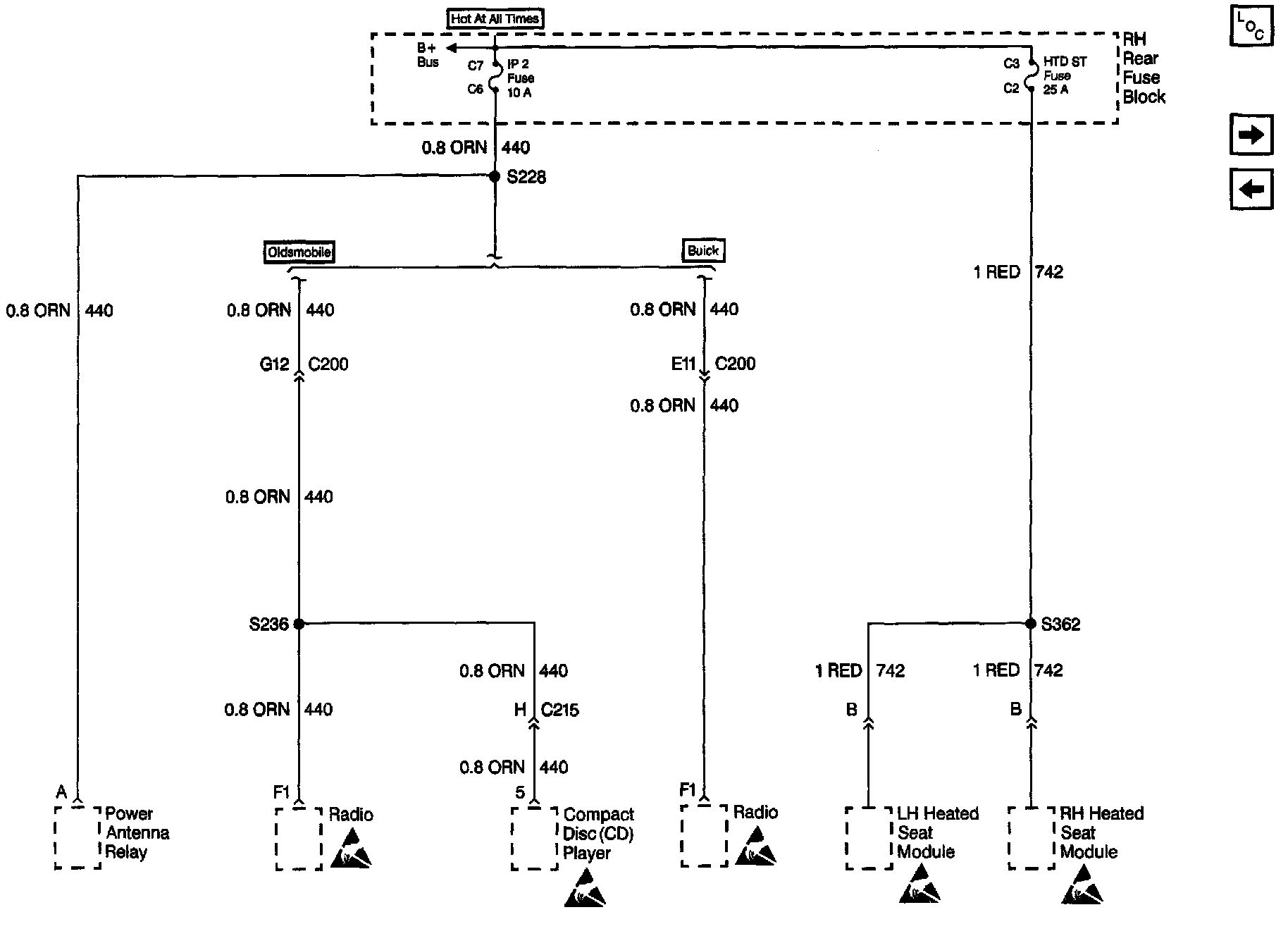

Power Distribution Schematics: IP 2 Fuse And HTD ST Fuse:
