Cooling Fan (High Speed)

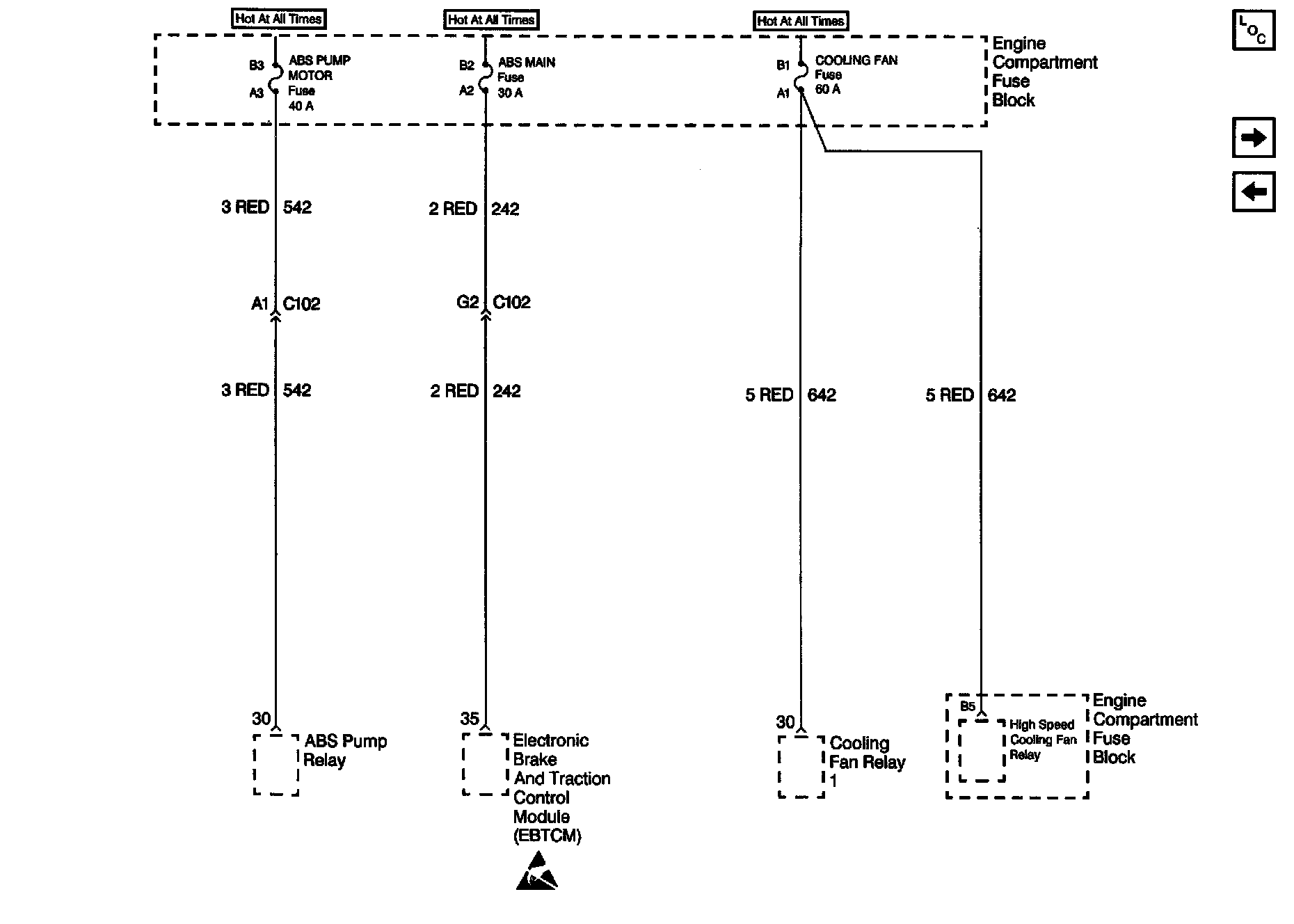

Power Distribution Schematics: ABS PUMP MOTOR Fuse, ABS MAIN Fuse, And COOLING FAN Fuse:



Power Distribution Schematics: CLG FAN Fuse, HTD MIR Fuse, RR DEFOG 1 Fuse, And RR DEFOG 2 Fuse:
