HTD MIR
HTD MIR

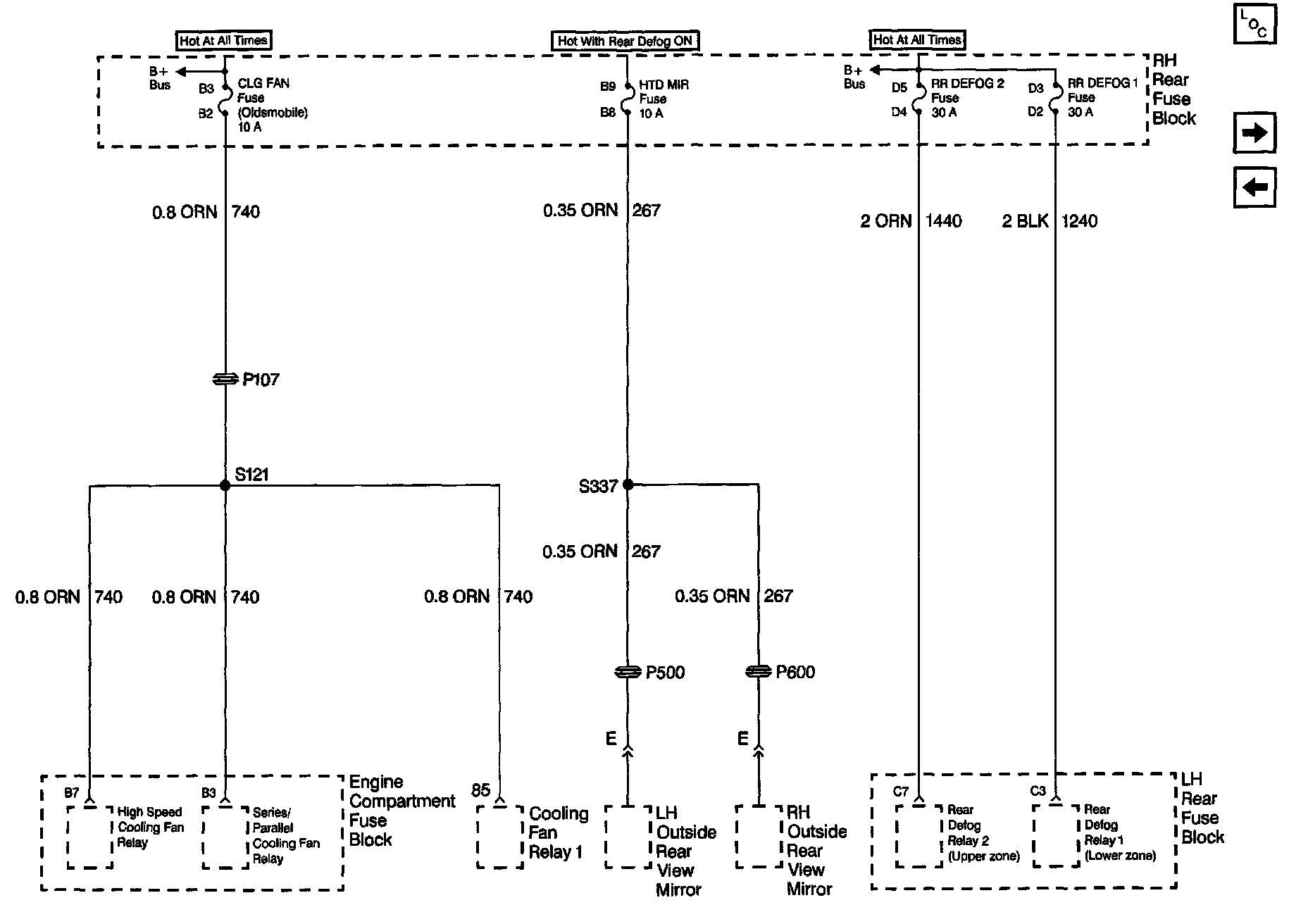

Power Distribution Schematics: CLG FAN Fuse, HTD MIR Fuse, RR DEFOG 1 Fuse, And RR DEFOG 2 Fuse:
