Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution Diagrams >> Navigational Aids >> B >> "B" Source

"B" Source

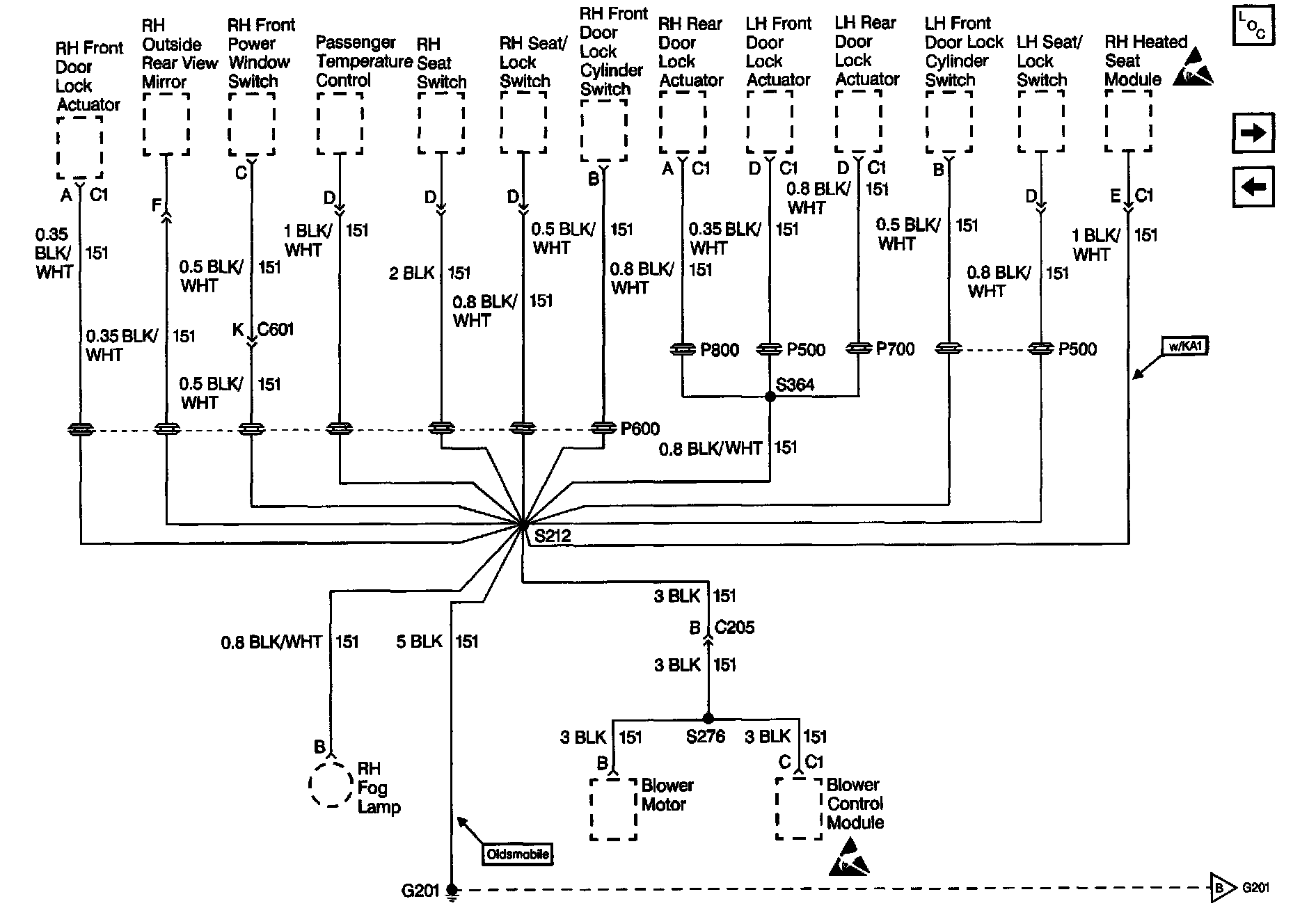

Ground Distribution Schematics: G201 (1 Of 2):
