Removal Procedure

1. Remove the rear seat cushion. Refer to Seats and Carpet.

2. Disconnect the negative battery cable. Refer to Battery Disconnect Caution in General Information.

3. Remove the radiator. Refer to Radiator Replacement in Engine Cooling.

4. Remove the accessory drive belt from the power steering pulley.

5. Remove the accessory drive belt from the generator.

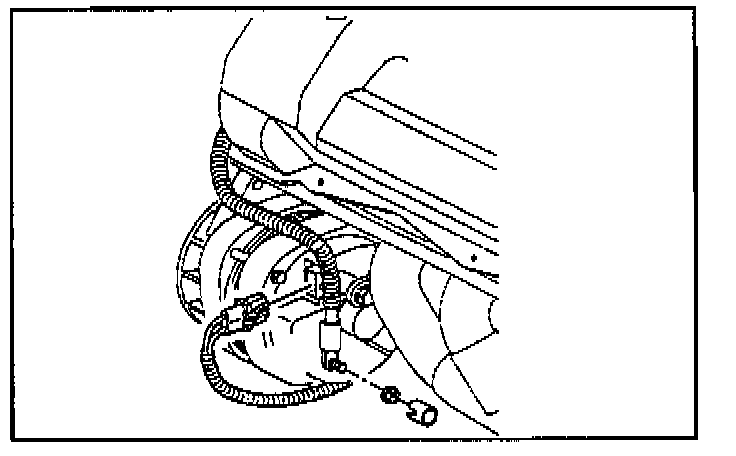

6. Remove the upper generator bolts.





7. Disconnect the battery lead.

8. Disconnect the voltage regulator connector.

9. Disconnect the [1][2]ground strap.

10. Remove the power steering line bracket to gain access to the generator.

11. Raise and suitably support the vehicle.

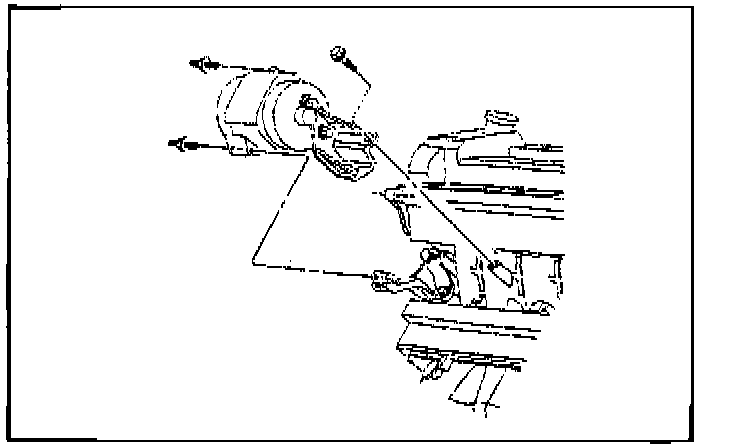

12. Remove the lower generator bolts.

13. Remove the air inlet duct.

14. Remove the generator through the top left side of the engine compartment.
