Generator Replacement RPO (L67)
REMOVAL PROCEDURE1. Remove the rear seat cushion.
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
2. Disconnect the negative battery cable.
3. Remove the accessory drive belt.
4. Remove the engine front cover.

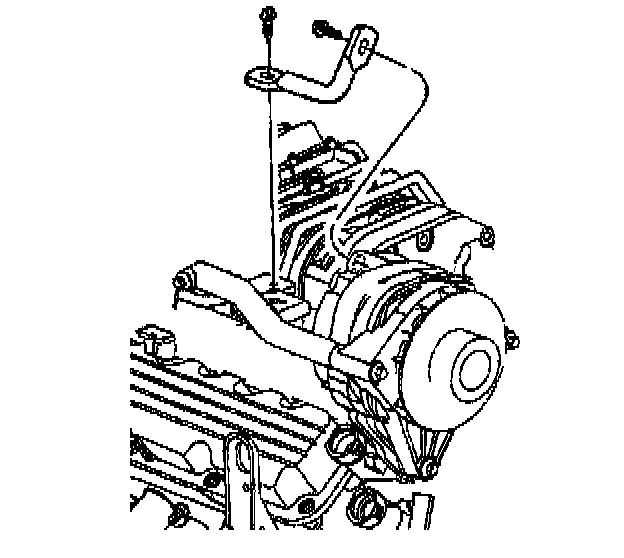

5. Remove the rear pencil brace bolts.
6. Remove the brace.
7. Remove the generator mounting bolts.

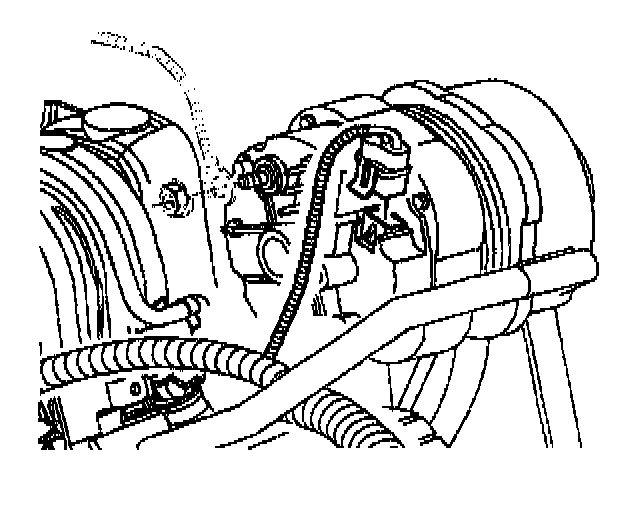

8. Remove the output terminal nut.
9. Disconnect the electrical connector.
10. Remove the generator.
INSTALLATION PROCEDURE
1. Install the generator.
2. Connect the electrical connector.
NOTE: Refer to Fastener Notice in Cautions and Notices.
3. Install the output terminal nut.
Tighten
Tighten the nut to 20 Nm (15 lb ft).
4. Install the generator mounting bolts.
Tighten
Tighten the bolts to 50 Nm (37 lb ft).
5. Install the rear pencil brace.
6. Install the rear pencil brace bolt.
Tighten
Tighten the bolts to 30 Nm (22 lb ft).
7. Install the engine front cover.
8. Install the accessory drive belt.
9. Install the rear seat cushion.
10. Connect the negative battery cable.
Tighten
Tighten the cable nut to 15 Nm (11 lb ft).
