Oldsmobile
>>
1999
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Windows and Glass
>>
Power Window Switch
>>
Diagrams
>>
Connector Views
>>
Power Window Switch, RH Front
Power Window Switch, RH Front

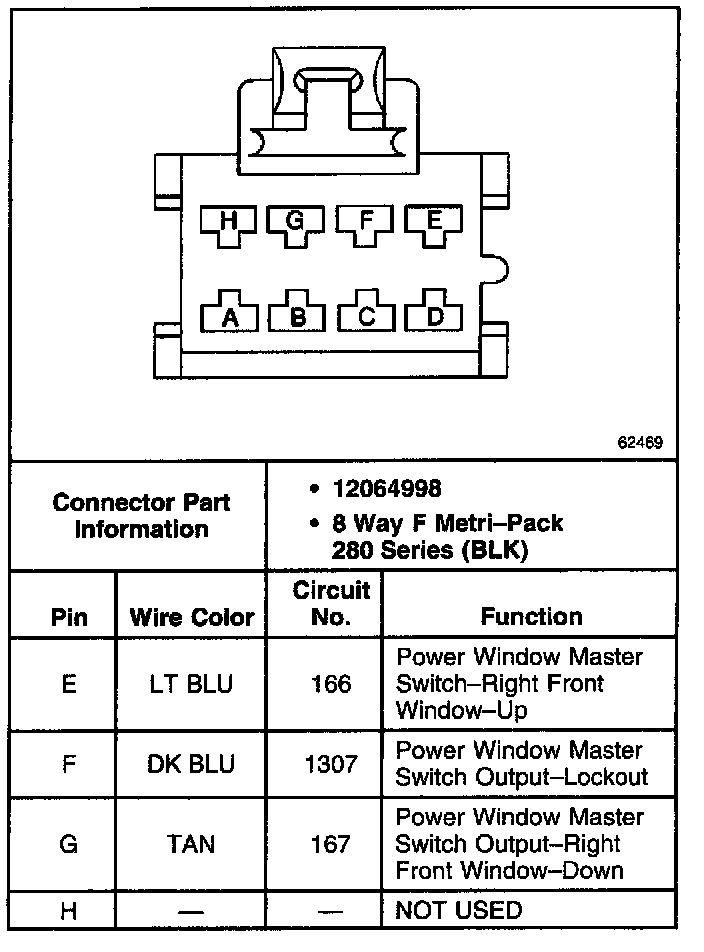

RH Front Power Window Switch (Oldsmobile) (Part 2 Of 2):

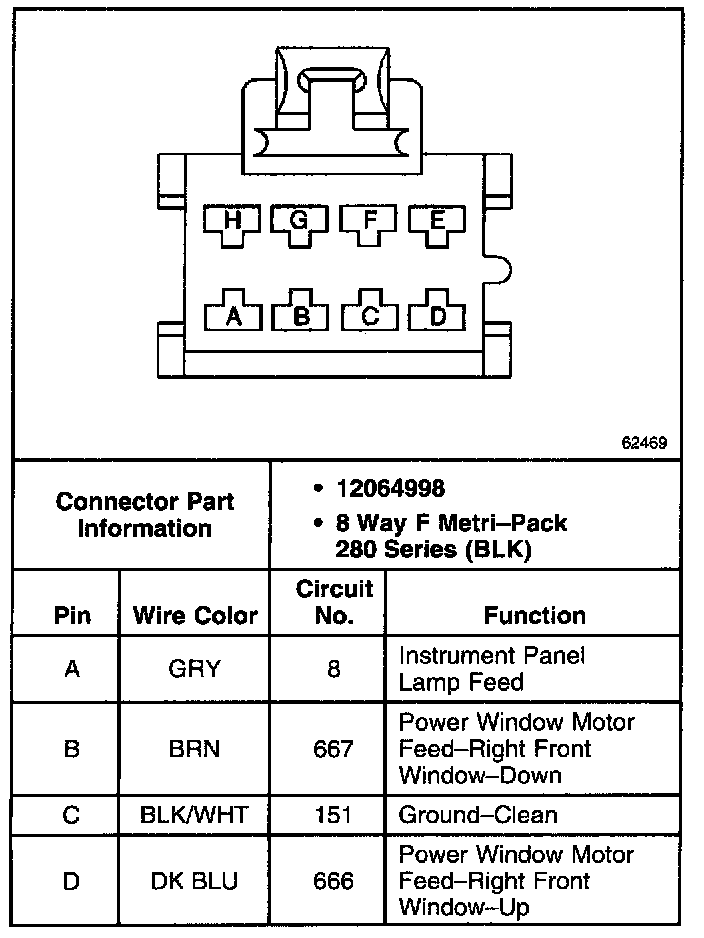

RH Front Power Window Switch (Oldsmobile) (Part 1 Of 2):
