Ride Height Sensor: Service and Repair

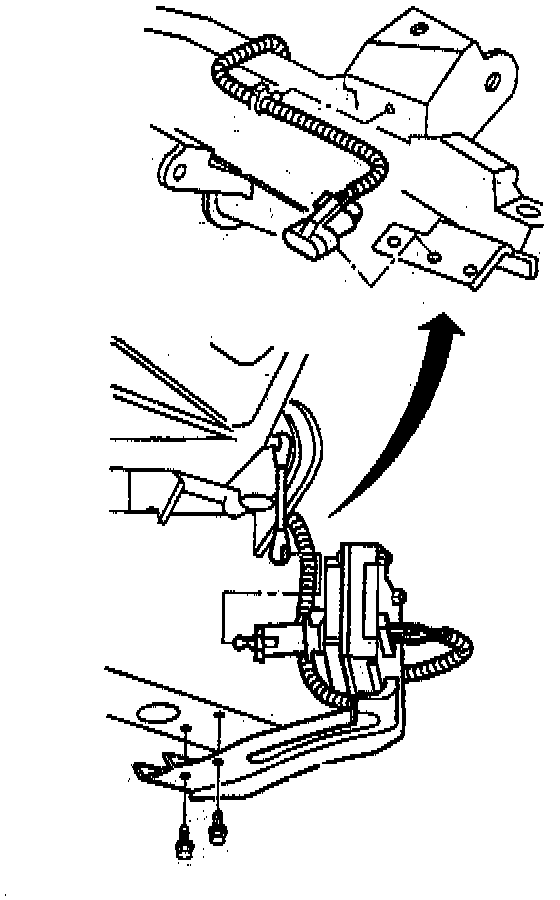

REMOVAL PROCEDURE
1. Raise the vehicle. Refer to Vehicle Lifting.





2. Remove the height sensor connector from the vehicle harness connector.
3. Remove the height sensor harness clip and the connector from the vehicle.
4. Disconnect the link from the height sensor actuating arm.
5. Remove the two bolts and the height sensor with the bracket from the vehicle.
6. Remove the four nuts and the bracket from the height sensor.

INSTALLATION PROCEDURE





1. Install the bracket on the height sensor with four nuts.
Tighten four nuts to 3 Nm (26 inch lbs.).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the height sensor with the bracket on the vehicle with two bolts.
Tighten two bolts to 11 Nm (97 inch lbs.).

3. Connect the link to the height sensor actuating arm.
4. Connect the height sensor harness clip and the connector to the vehicle.
5. Connect the height sensor connector to the vehicle harness connector.
6. Lower the vehicle. Refer to Vehicle Lifting.
7. Adjust the height sensor. Refer to Trim Height Sensor Adjustment.
