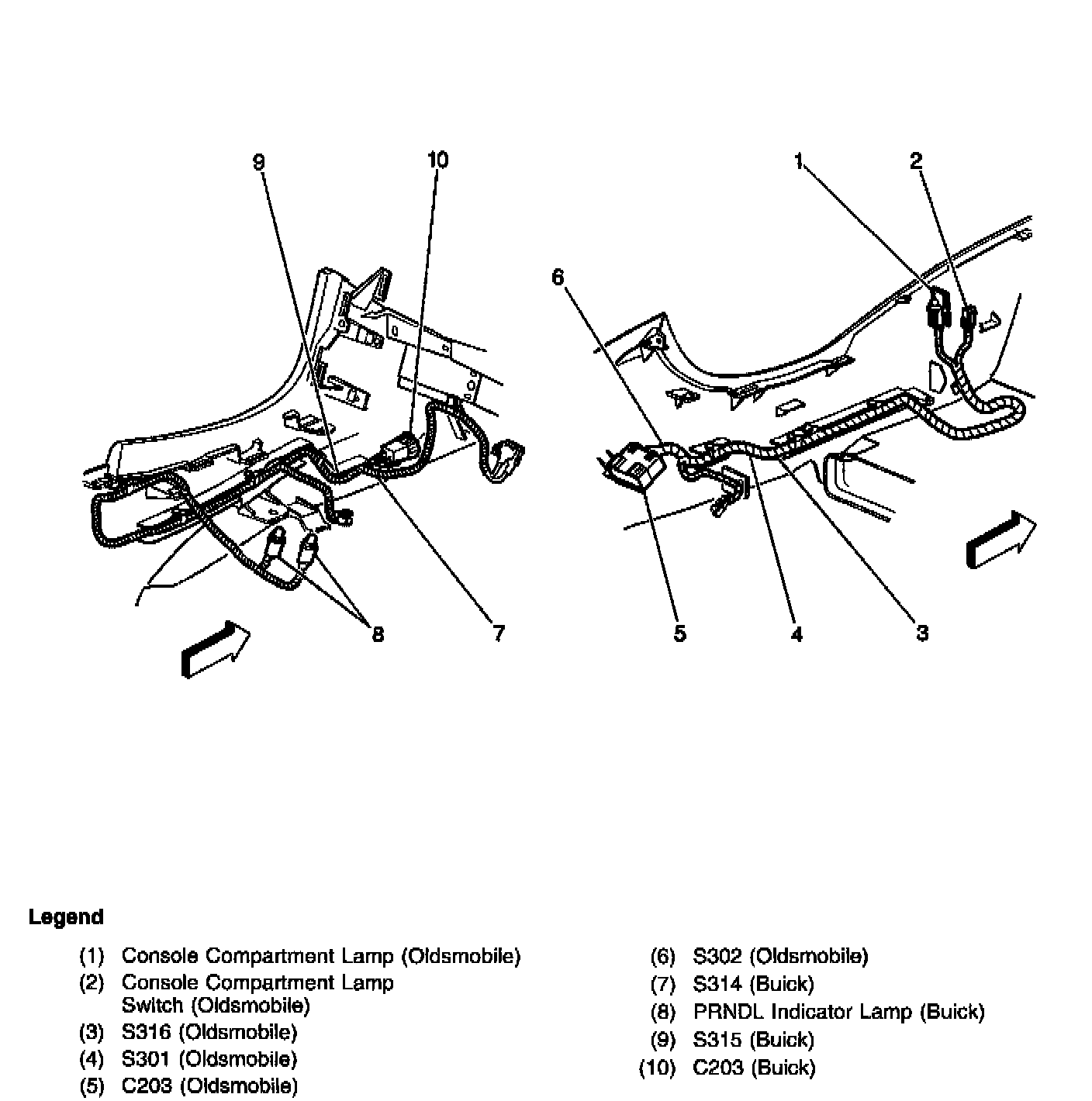

Console Compartment Lamp Switch

Passenger Compartment, Under The Center Console:





In the center front of the passenger compartment, in the center console compartment
