Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Fog/Driving Lamp Switch >> Diagrams

Fog/Driving Lamp Switch: Diagrams

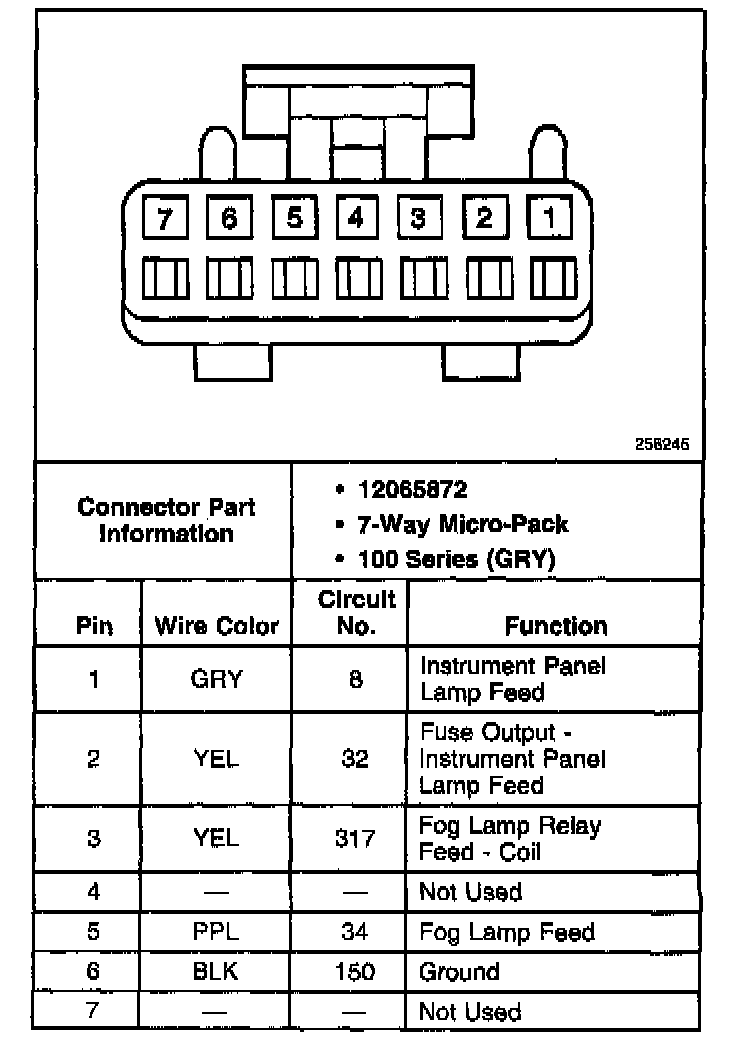

Fog Lamp Switch (Oldsmobile):
