Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Instrument Panel >> Door Switch >> Diagrams >> LH/RH Rear Door Jamb Switch C2

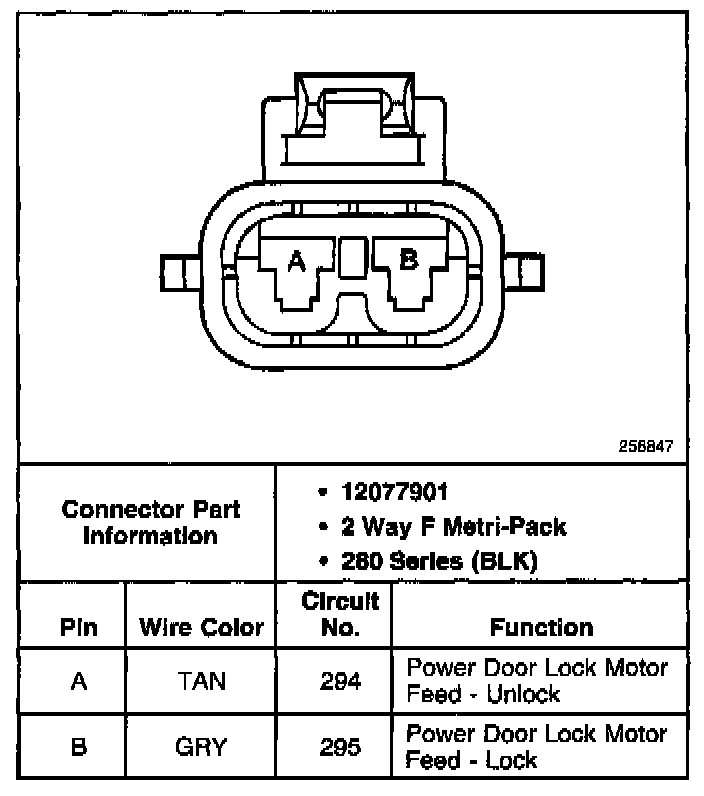

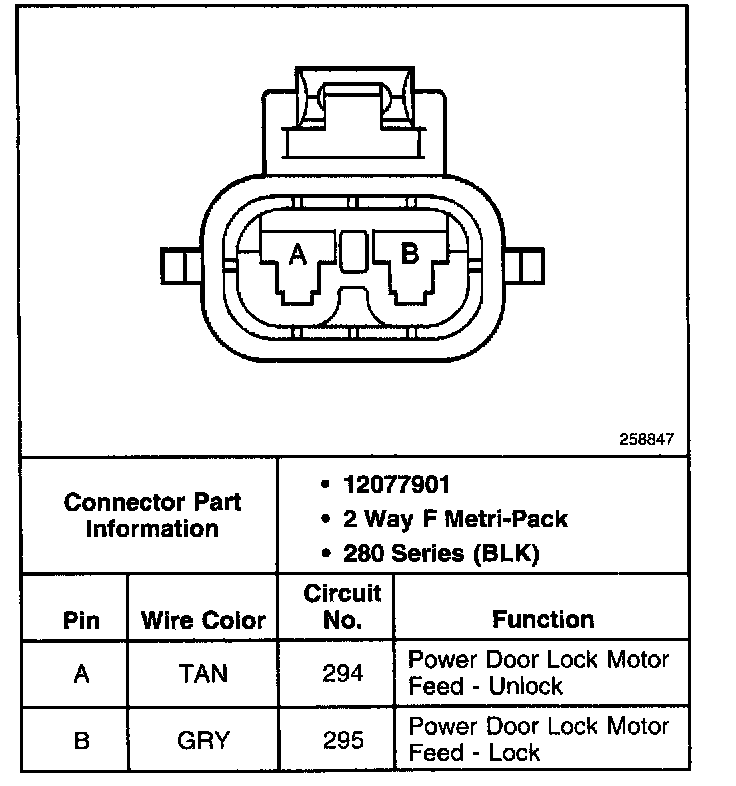

LH/RH Rear Door Jamb Switch C2

LH/RH Rear Door Jamb Switch C2 (Oldsmobile):



LH/RH Rear Door Jamb Switch C2 (Oldsmobile):
