Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Solar Sensor >> Diagrams >> Sun Load Temperature Sensor, Right

Sun Load Temperature Sensor, Right

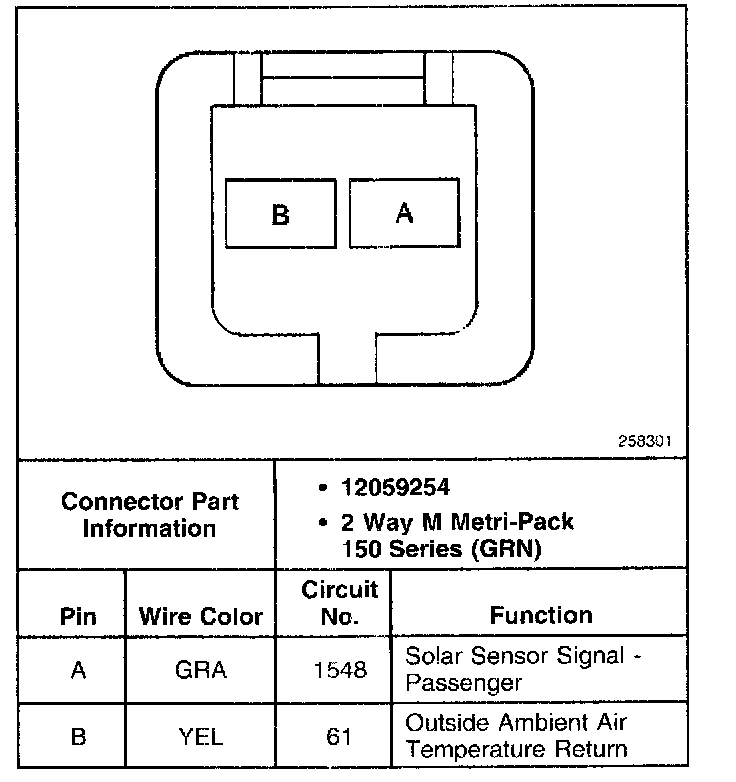

RH Sun Load Sensor:
