Inside Air Temperature Sensor Replacement

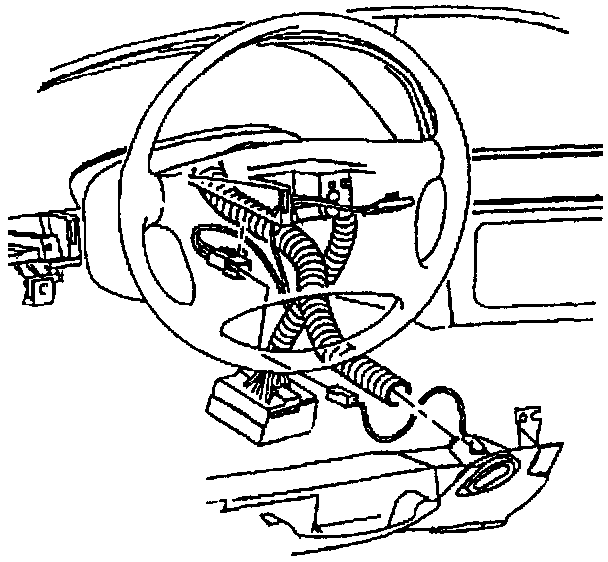

REMOVAL PROCEDURE

Inside Air Temperature Sensor:

1. Remove the knee bolster.
2. Disconnect the aspirator tube.
3. Disconnect the electrical connector from the sensor.
4. Remove the sensor.

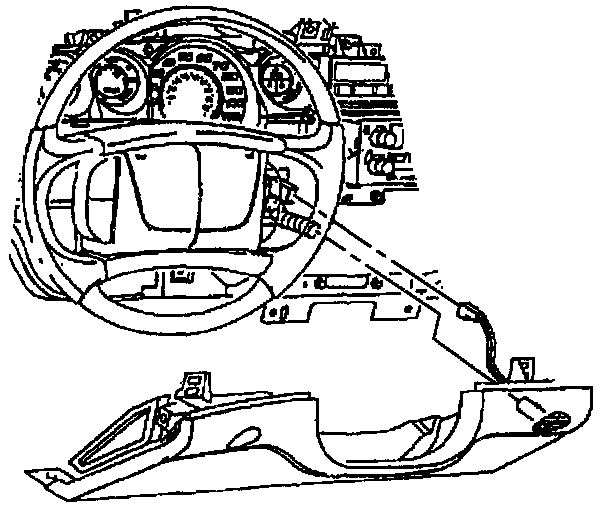

INSTALLATION PROCEDURE

Inside Air Temperature Sensor:

1. Connect the electrical connector.
2. Connect the aspirator tube.
3. Install the sensor into the knee bolster.
4. Install the knee bolster.
