A/C Low Temperature Sensor (Engine, Gas, 8 CYL, 4.0L, MFI, OHC)
A/C Low Temperature Sensor (Engine, Gas, 8 CYL, 4.0L, MFI, OHC)

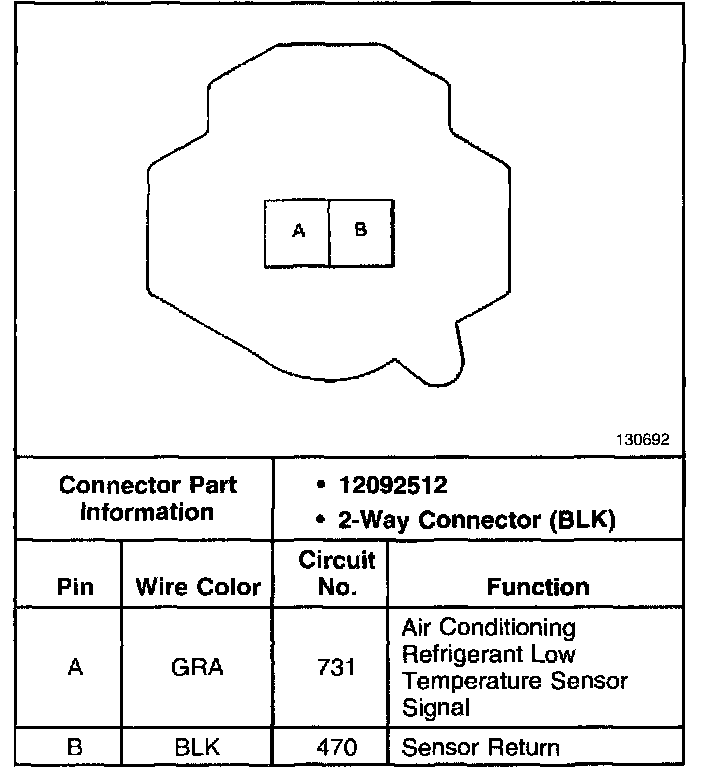

A/C Low Temperature Sensor (Engine, Gas, 8 CYL, 4.0L, MFI, OHC):
