Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Accessories and Optional Equipment >> Lock Cylinder Switch >> Diagrams >> Left Front Door Lock Cylinder Switch

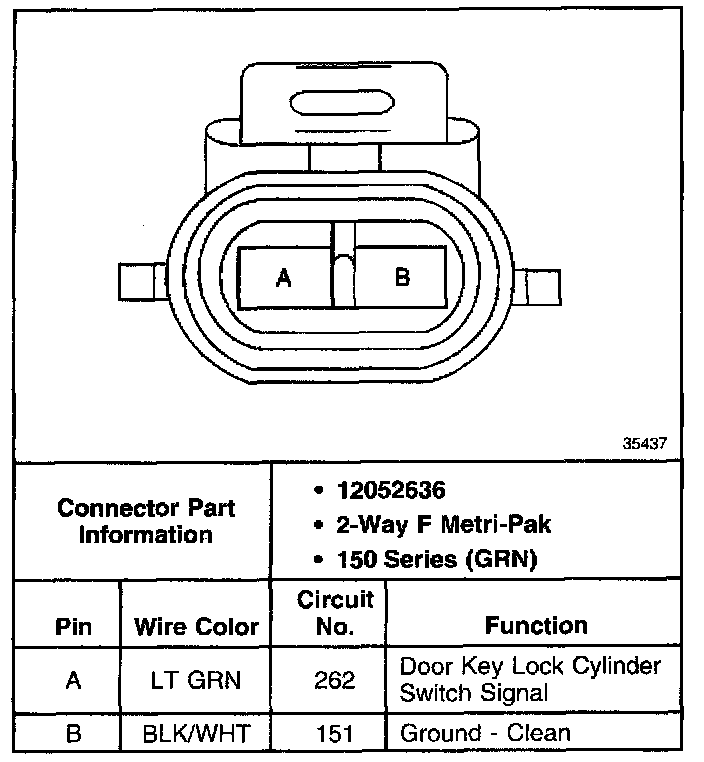

Left Front Door Lock Cylinder Switch

Left Front Door Lock Cylinder Switch:
