Removal Procedure

1. Disable the SIR System.
2. Remove Inflatable Restraint Steering Wheel Module.
3. Remove the steering wheel nut (2).
4. Note the mark on the steering shaft and the steering wheel (1) to ensure proper alignment during installation.
5. Remove the upper and lower shrouds.
6. Remove the steering wheel from the steering shaft.
7. Remove the wire harness straps from the steering wheel column wire harness.

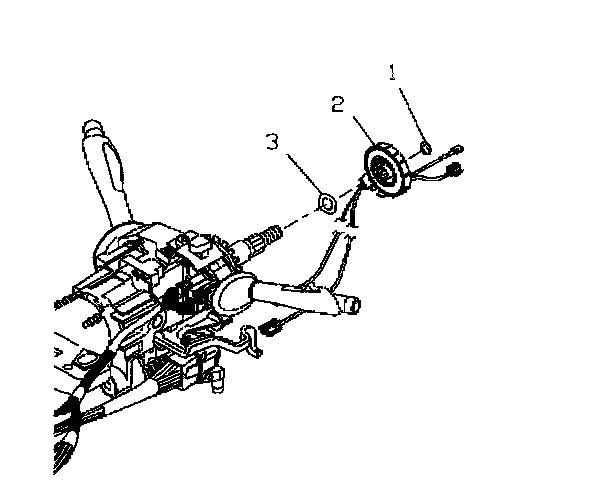

8. Remove the retaining ring (1).
9. Remove the Inflatable Restraint Steering Wheel Module Coil (2) from the steering shaft
