Electronic Brake Control Module: Service and Repair

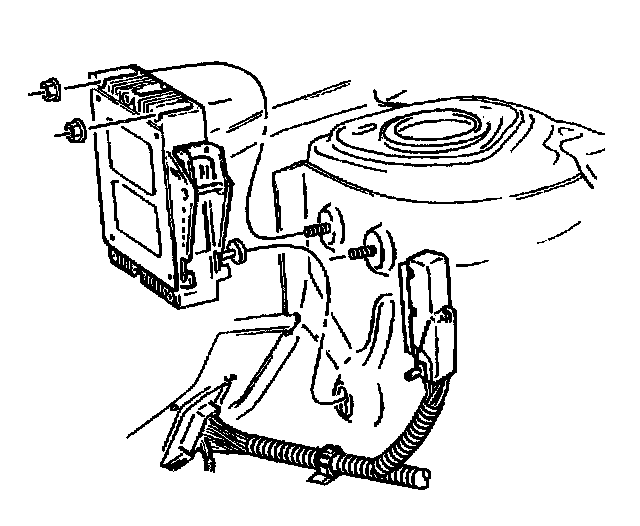

REMOVAL PROCEDURE

NOTICE: To prevent equipment damage, never connect or disconnect the wiring harness connection from the EBCM with the ignition switch in the ON position.





1. Remove the EBCM/EBTCM connector by rotating the locking clip forward.
2. Remove the mounting nuts.
3. Remove the EBCM/EBTCM by sliding it up and away from the strut tower.

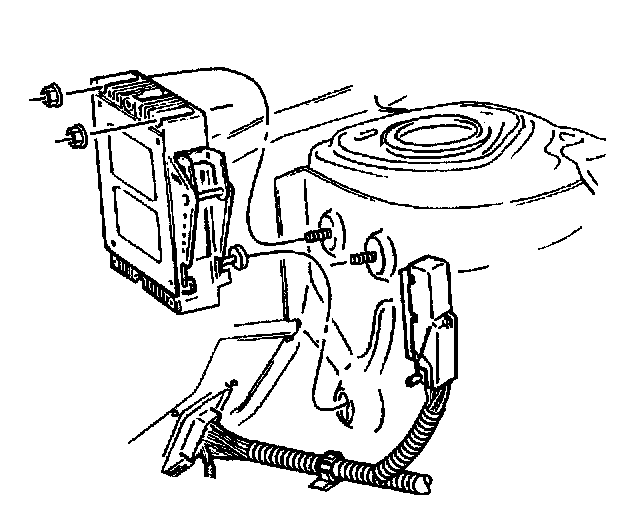

INSTALLATION PROCEDURE





1. Install the EBCM/EBTCM into the lower locating slot. Slide the EBCM/EBTCM downward.

NOTICE: Refer to Fastener Notice in Service Precautions.

2. Install the mounting nuts.
^ Tighten the nuts to 11 Nm (96 inch lbs.).

3. Connect the EBCM/EBTCM connector.
