Fuel Pump Relay: Service and Repair

REMOVAL PROCEDURE




1. Turn the ignition OFF.
2. Remove the rear seat cushion.
3. Disconnect the negative battery cable.

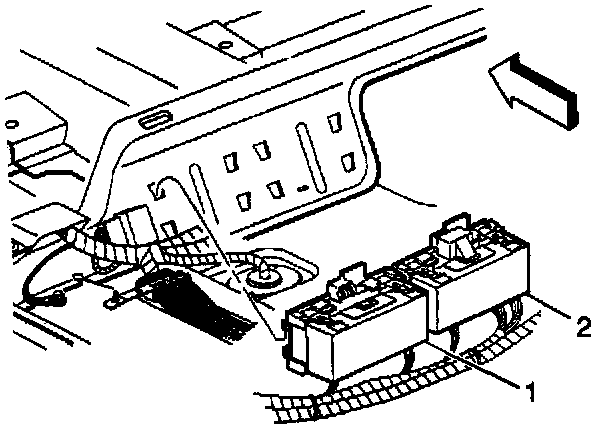

4. Release the tabs from the rear relay electrical center (1) cover.

Description:

5. Remove the fuel pump relay from the rear relay electrical center.

INSTALLATION PROCEDURE

Description:

1. Install the fuel pump relay into the rear relay electrical center.




2. Install the rear relay electrical center (1) cover.
3. Install the rear seat cushion.
4. Turn the ignition OFF.
5. Install the negative battery cable.
