Electric Cooling Fan Diagnosis

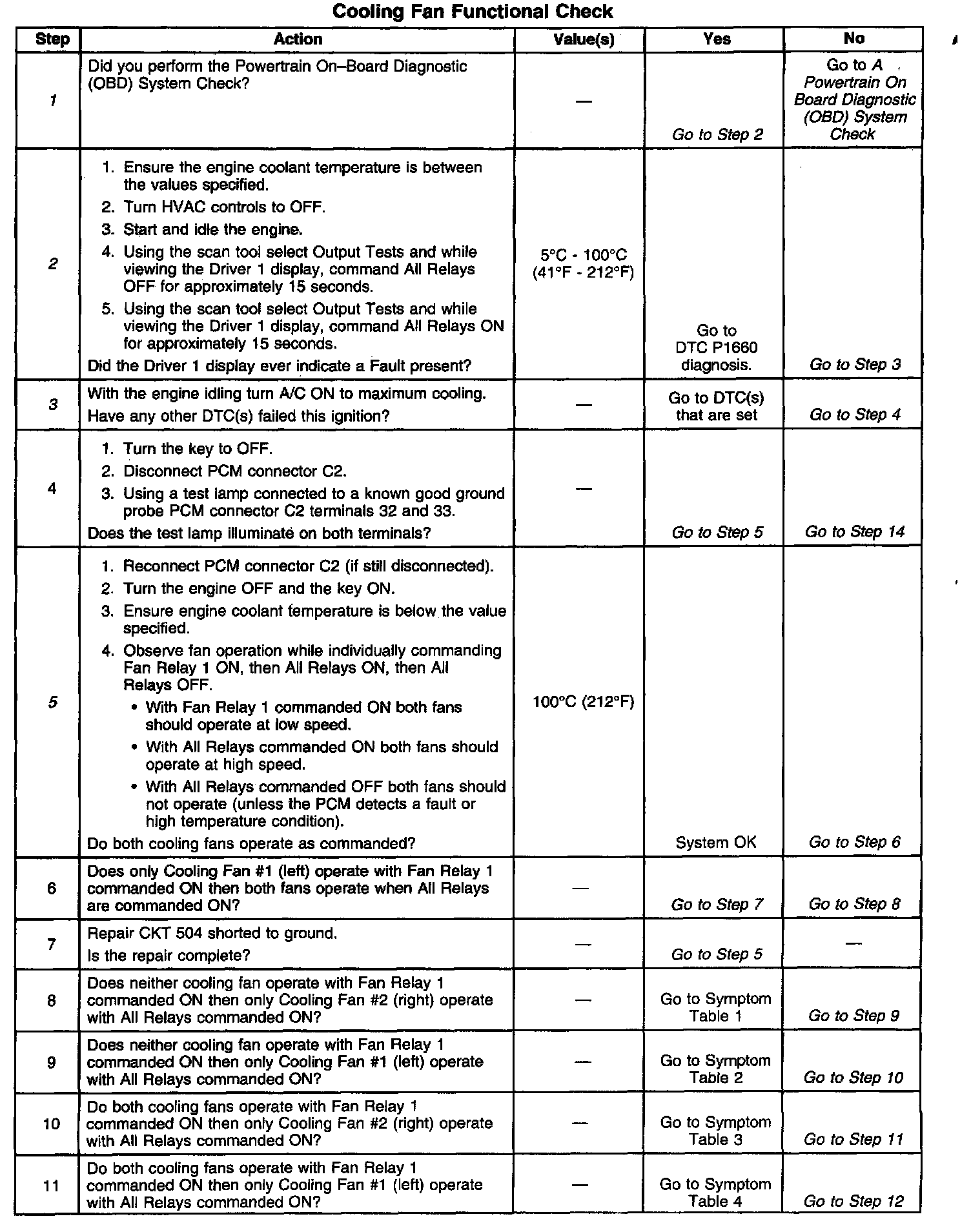

Cooling Fan Function Check:

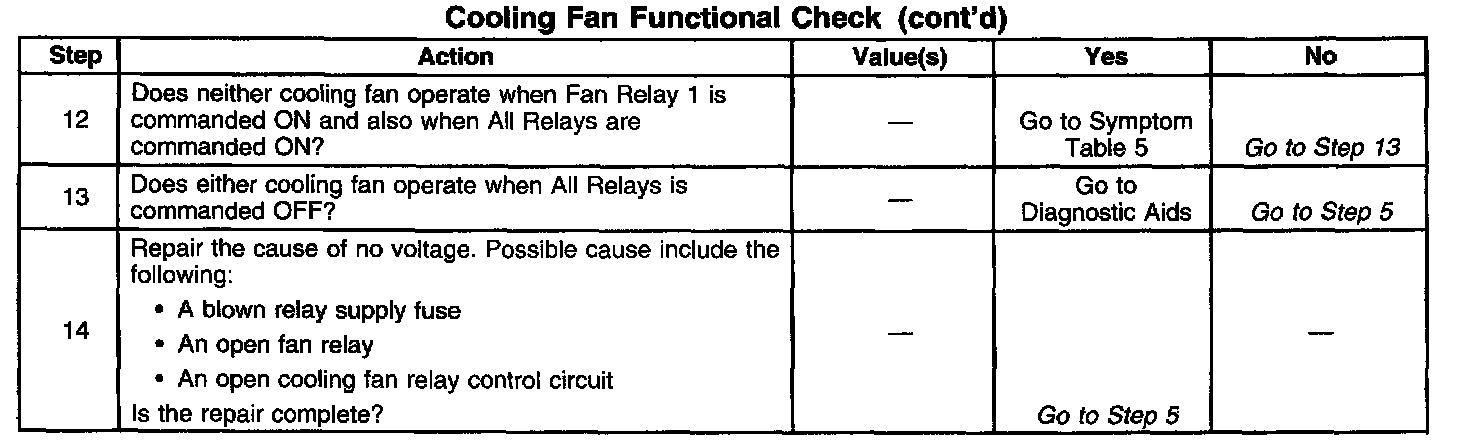

Cooling Fan Function Check (Cont'd):

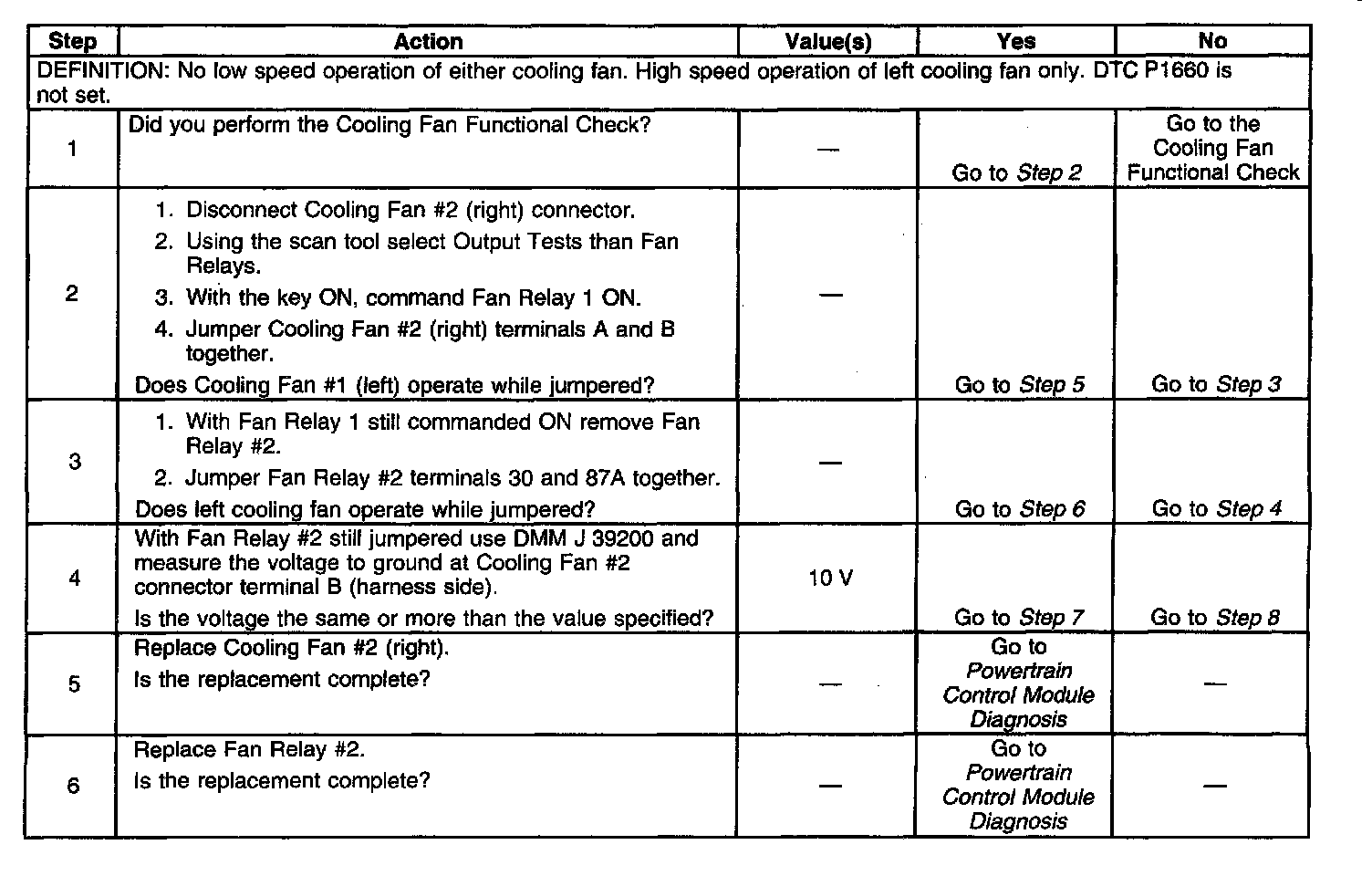

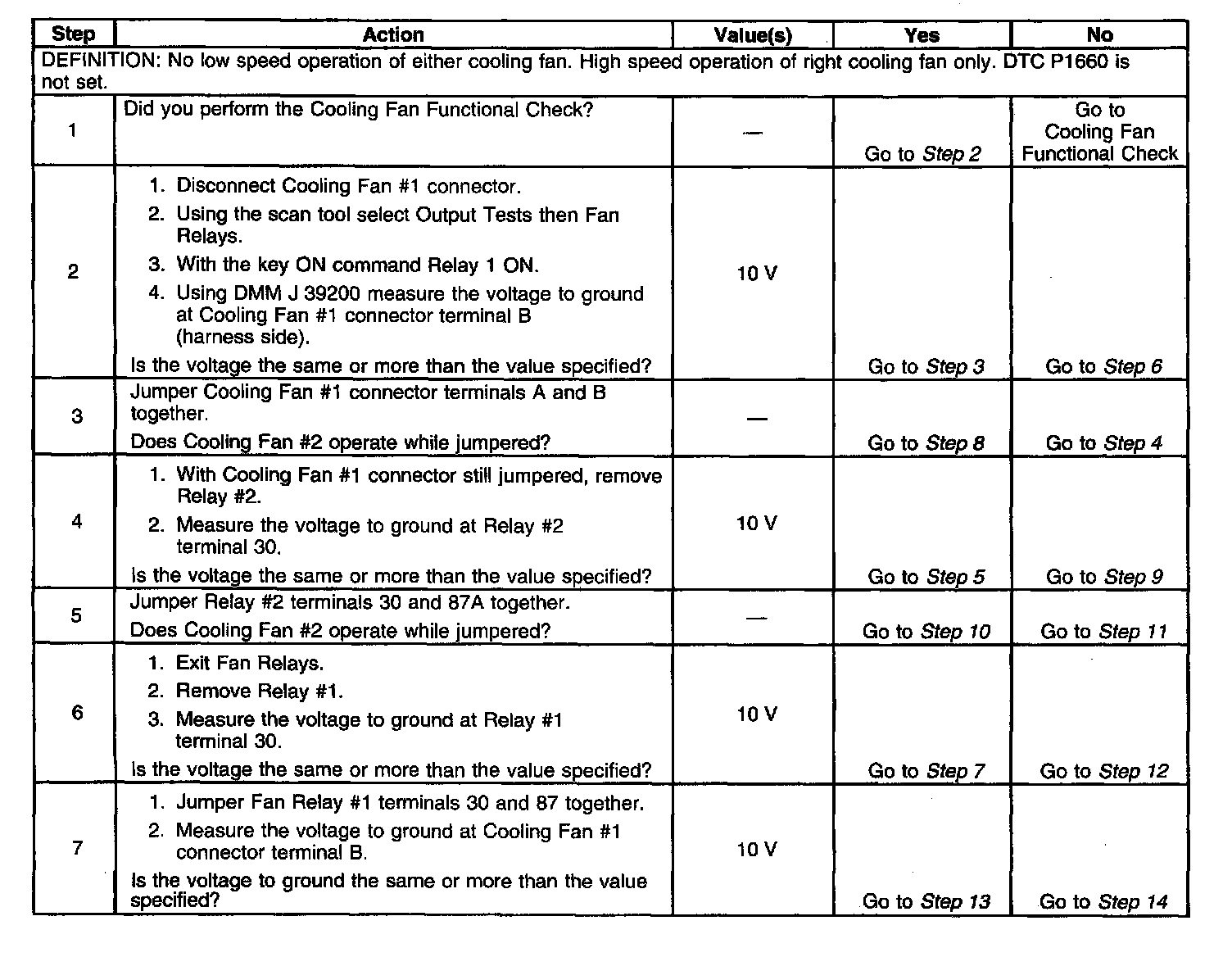

Cooling Fan Symptom Table 1:

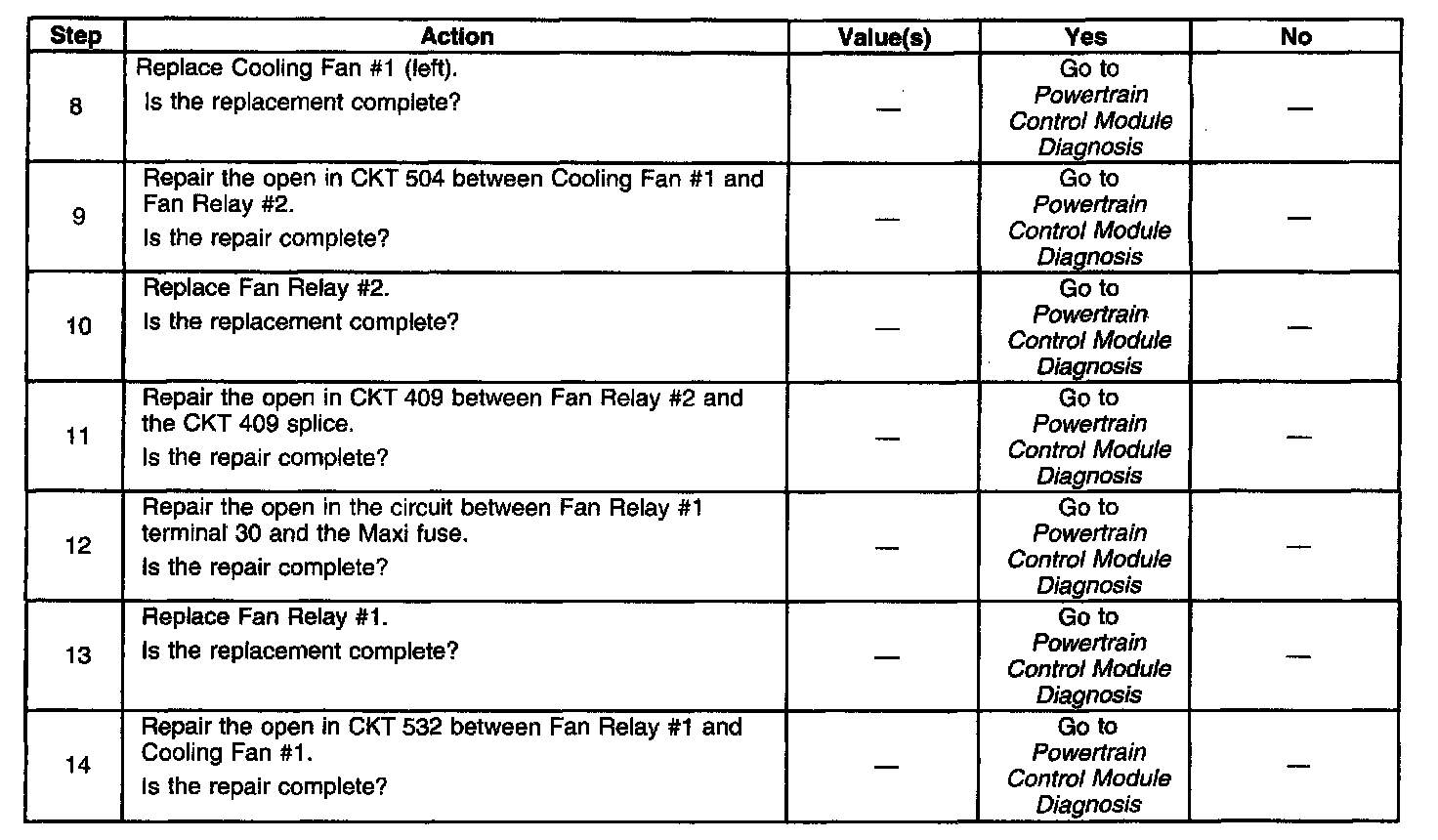

Cooling Fan Symptom Table 1 (Cont'd,d):

Cooling Fan Symptom Table 2:

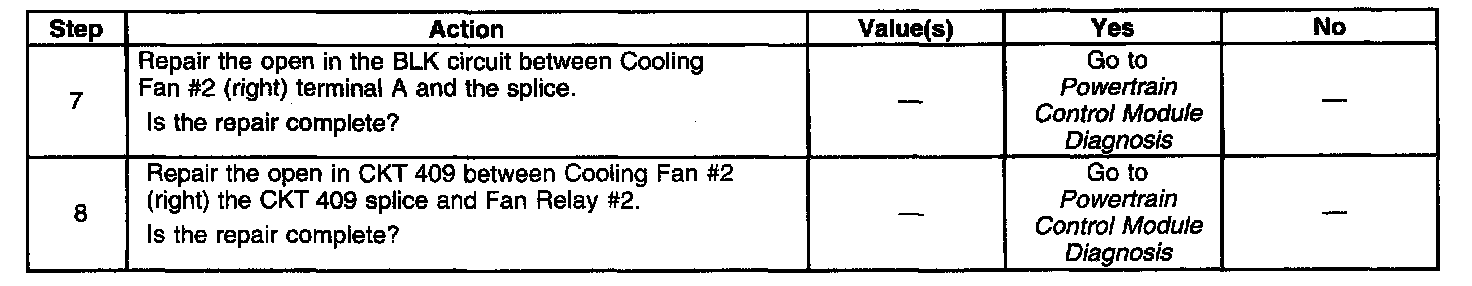

Cooling Fan Symptom Table 2 (Cont'd):

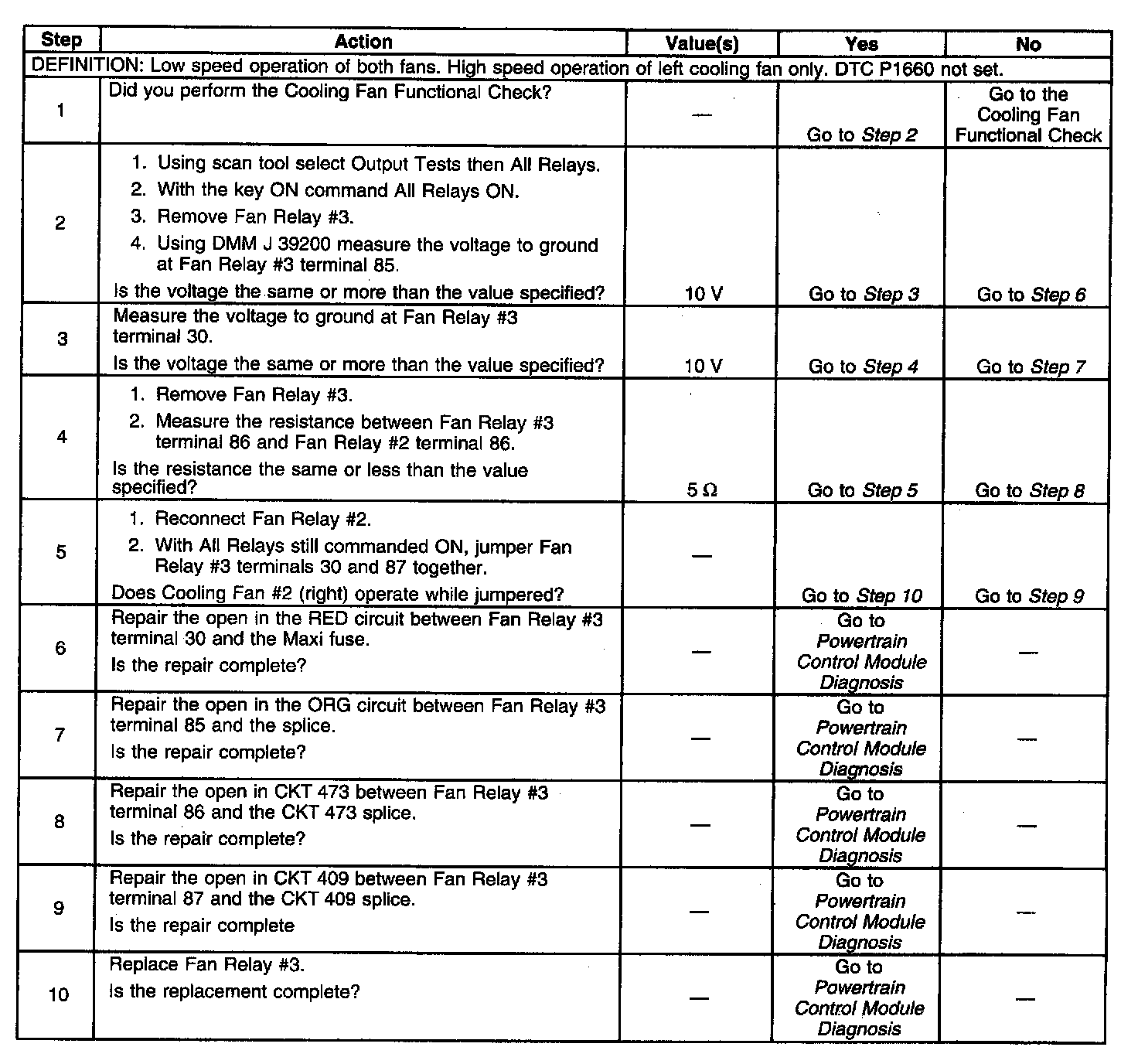

Cooling Fan Symptom Table 3:

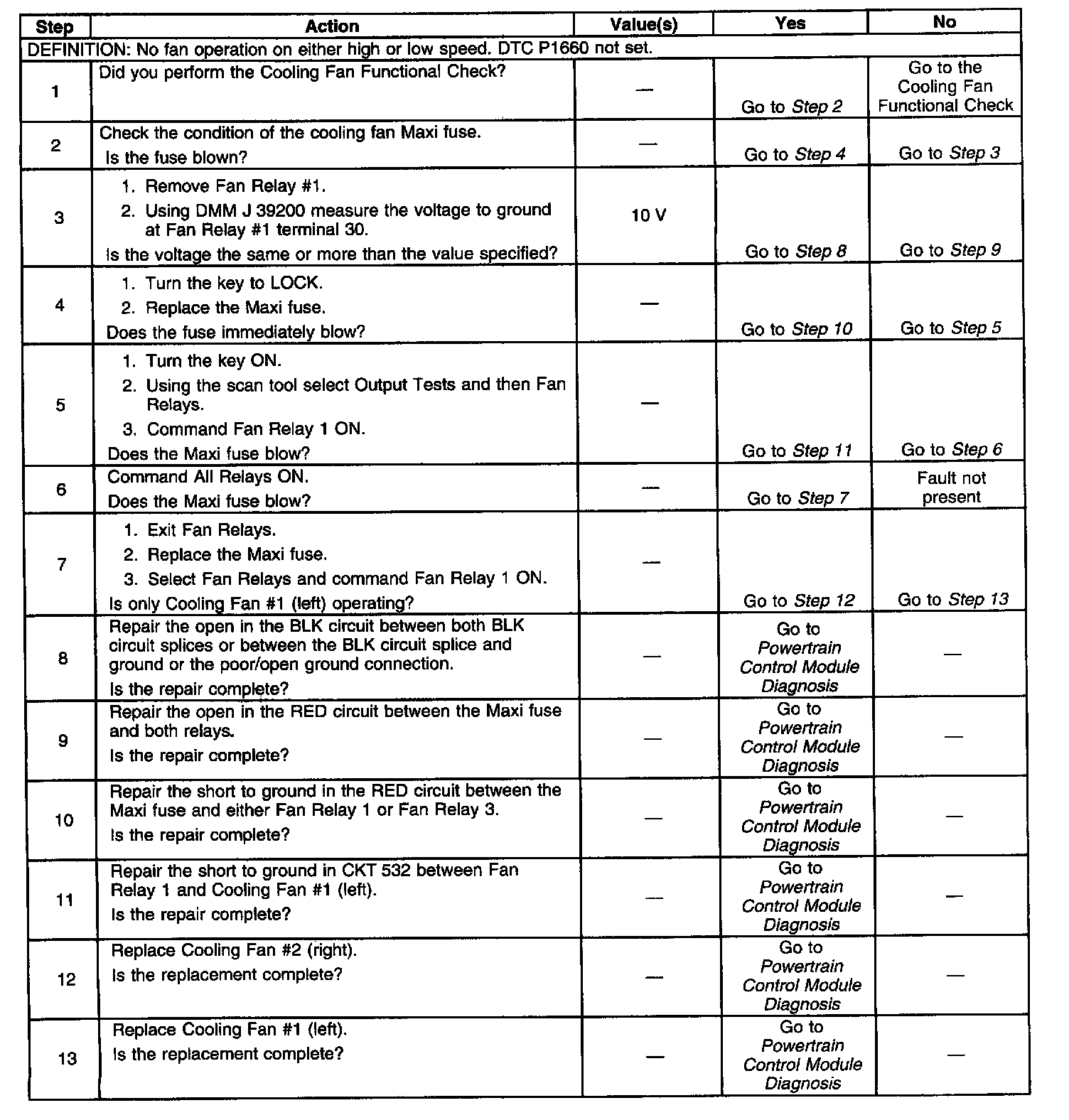

Cooling Fan Symptom Table 4:

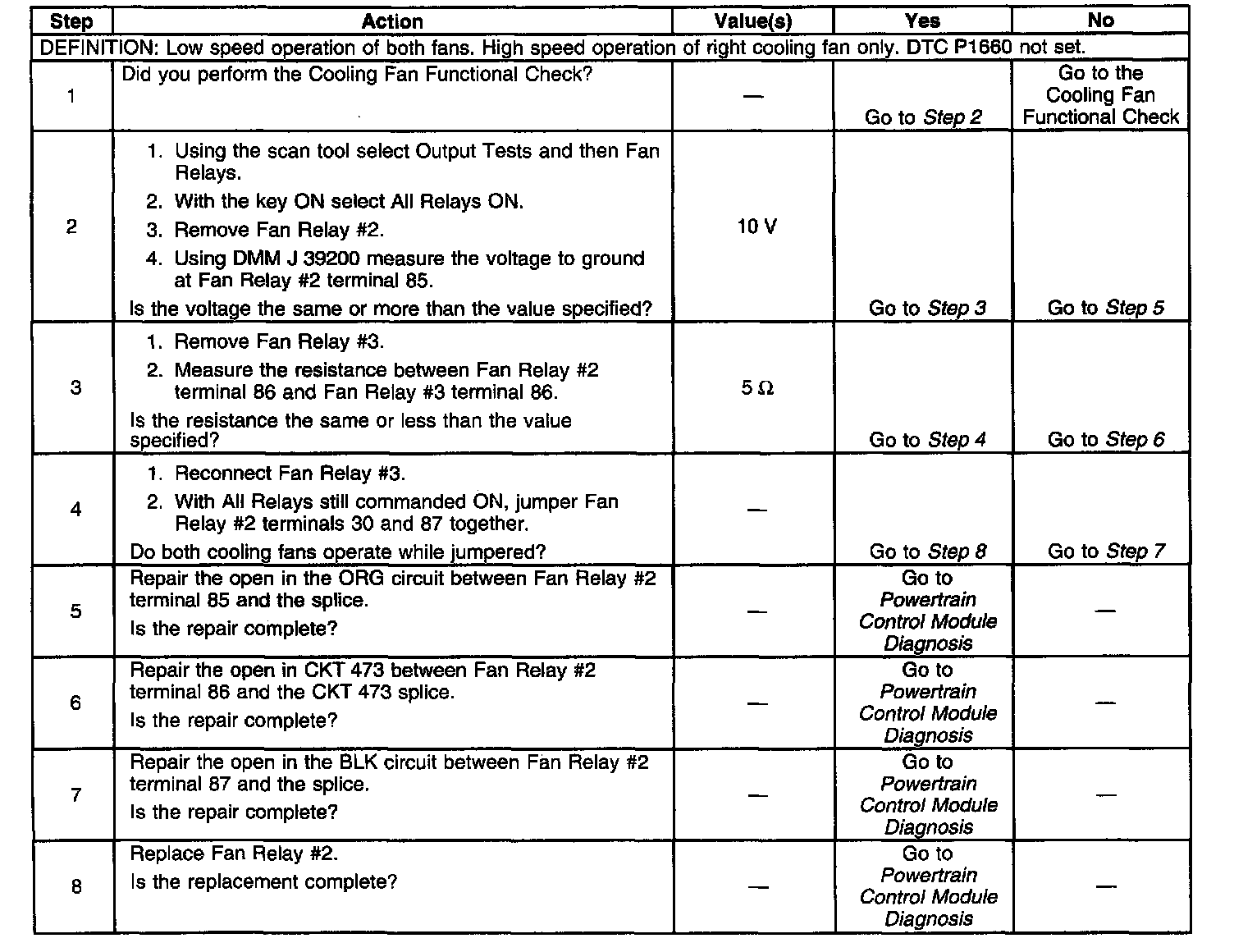

Cooling Fan Symptom Table 5:

Circuit Description

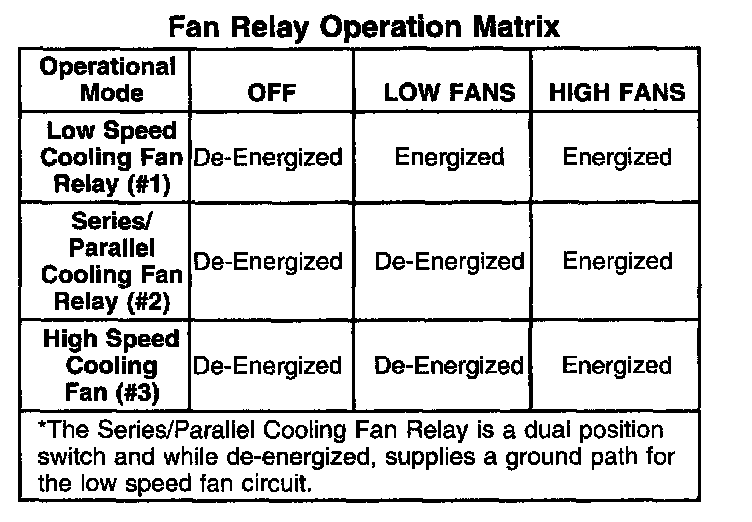

To determine if a fault is present perform the Cooling Fan Functional Check. If DTC P1660 is set, or sets during the functional check, it must be diagnosed before proceeding with any of the symptom tables. When the PCM commands low speed fan operation it grounds Cooling Fan Relay 1 which allows current to flow through both cooling tans in a series circuit to ground. It the PCM commands high speed tan operation it grounds all the cooling fan relays, including Fan Relay 1, which changes the circuit to a parallel circuit to ground. If a fault occurs certain symptoms will occur due to the series/parallel circuit design.

The PCM will command fan operation when:
^ Low Speed Fan Operation
- Engine coolant temperature exceeds approximately 106°C (220°F).
- Transmission fluid temperature exceed 150°C (302°F).
- A/C operation is requested.
- After the vehicle is shut OFF if the coolant temperature at key-off is more than 151°C (304°F) and system voltage was more than 12 volts. The fans will stay ON for approximately 3 minutes.
^ High Speed Fan Operation
- Engine coolant temperature reaches 112°C (234°F).
- Transmission temperature is more than 151°C (304°F).
- When certain DTCs set.

The fans will switch from low to OFF when the coolant drops below 102°C (216°F).
The fans will switch from high to low (except DTCs set) when the coolant drops below 106°C (229°F).
^ If the cooling tans operate when commanded OFF and DTC P1660 is not set either a cooling fan relay is stuck ON or a cooling tan circuit is shorted to power.
^ Whenever a repair is completed repeat the Cooling Fan Functional Check. This will help diagnose possible multiple failures, for example: two water contaminated relays.

Test Description
Number(s) below refer to the step number(s) on the Functional Table.
1. The Diagnostic System Check must be performed first so that mis-diagnosis is avoided, due to the PCM commanding the fans ON due to a DTC set, etc.
2. Checking to see if there is a fault on the cooling fan relay control circuits.
3. Checking to see if any Air Conditioning (A/C) DTCs will set. If A/C DTCs set they must be diagnosed before proceeding with the Cooling Fan Functional Check.
5. Commanding fans ON in sequence to determine the symptom (fault-if any) present.
