A/C COMPRESSOR Relay

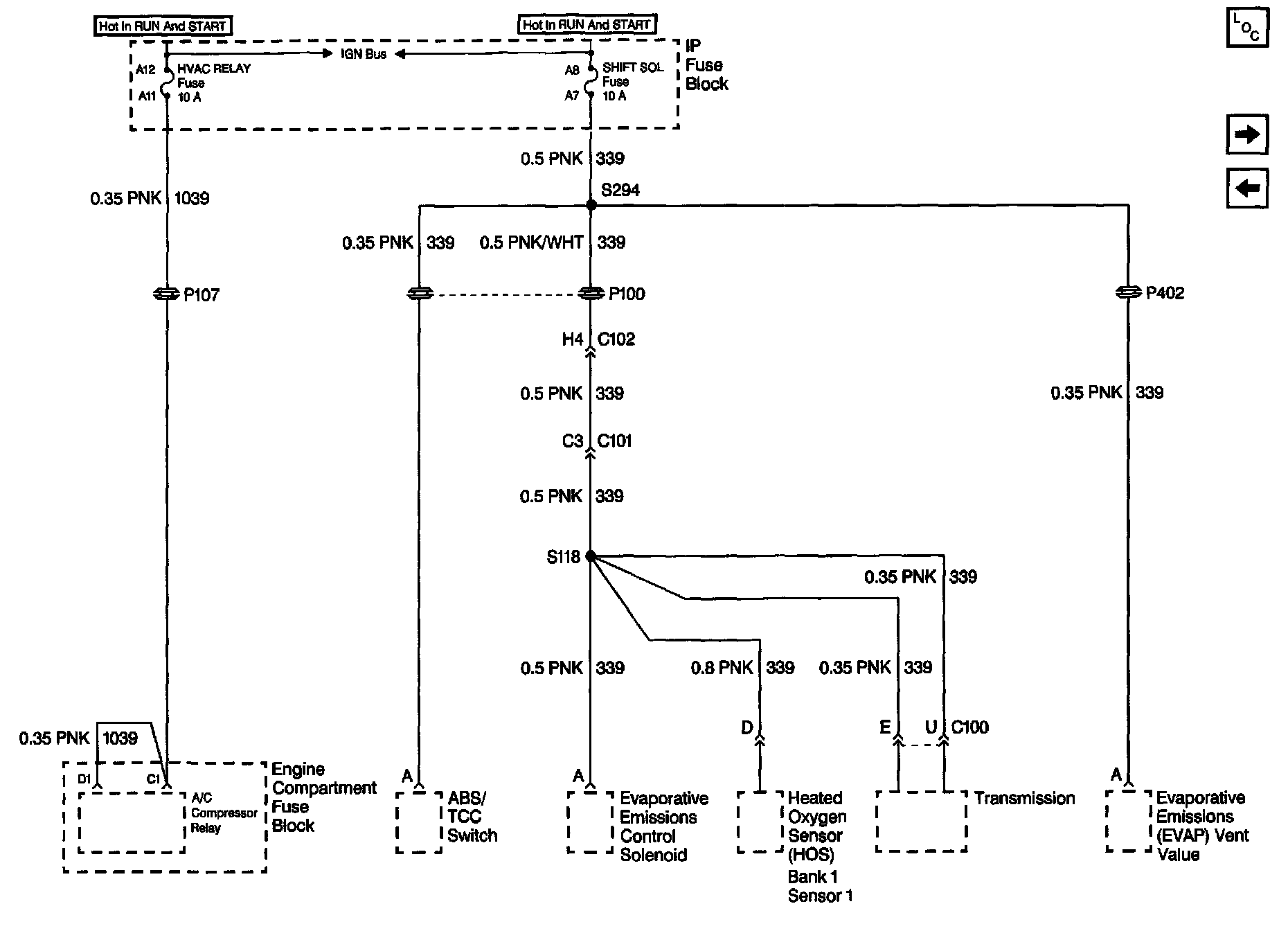

Power Distribution Schematics: HVAC RELAY Fuse And SHIFT SOL Fuse (Oldsmobile):
