Vanity Lamp: Service and Repair

REMOVAL PROCEDURE

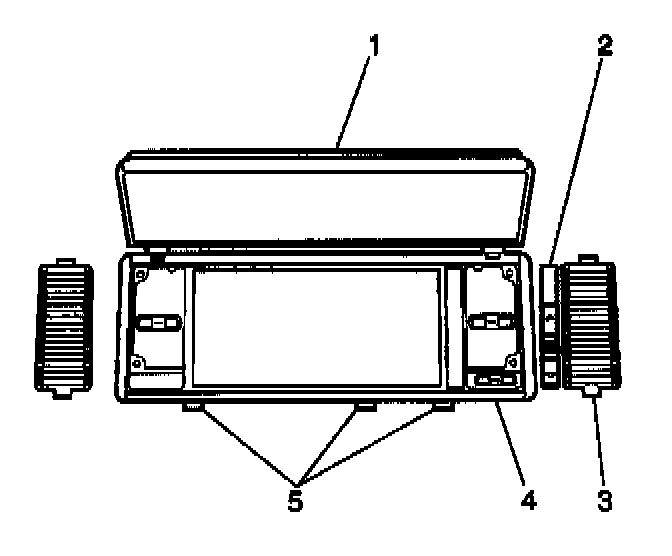

1. Gently pry the lamp lens (3) in order to release the tabs.
2. Gently pull the bulb from the contacts.

INSTALLATION PROCEDURE
1. Install the bulb to the contacts by pressing the contacts into place.
2. Install the lens (3) by pressing in order to engage the tabs.
3. Verify proper operation of the vanity lamp hi/lo switch (2).
