System Diagnosis - Automatic - CCOT

CCOT A/C System Diagnosis:

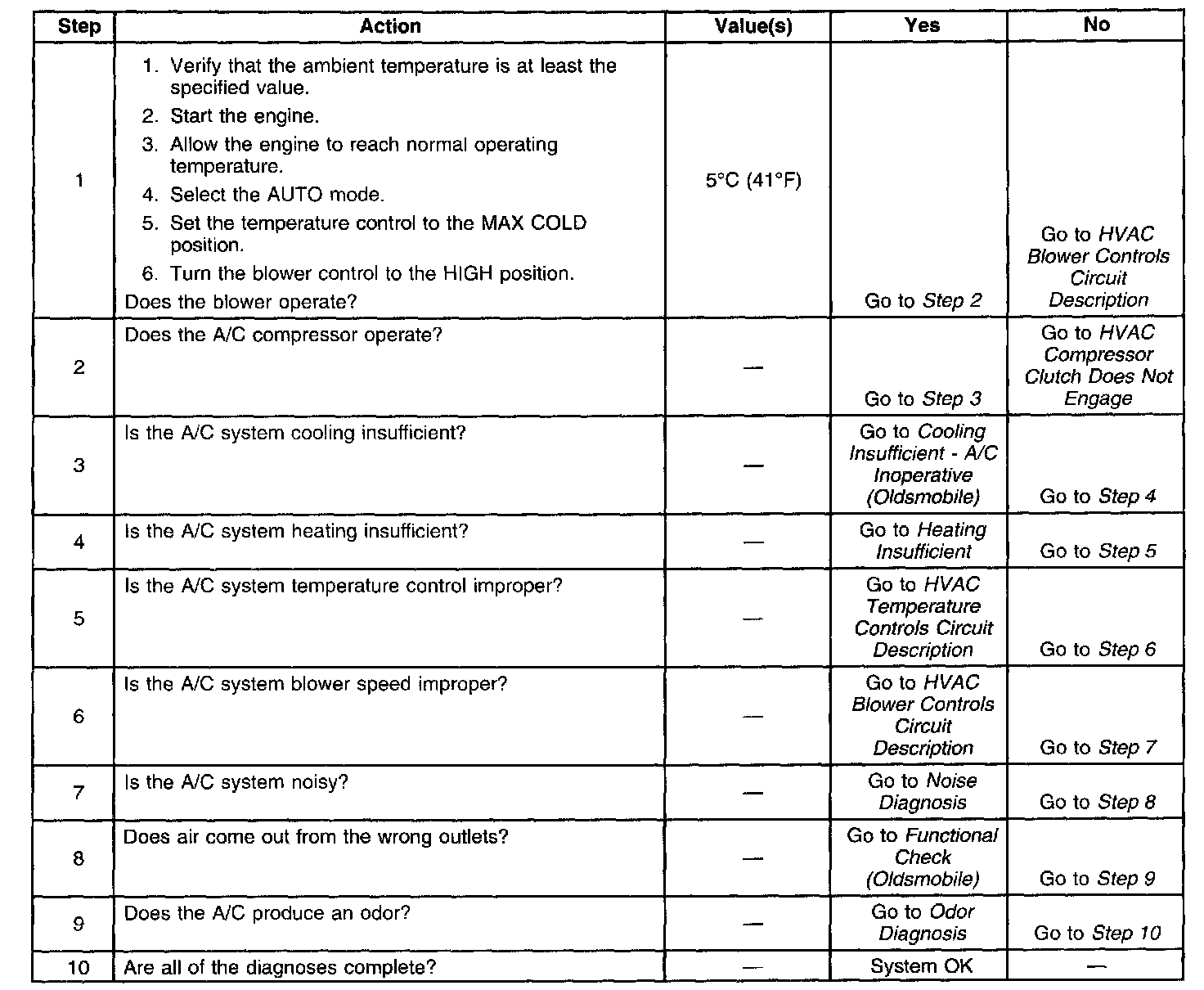

The primary purpose of these charts is to diagnose problems in the following areas:
^ The mechanical portion of the refrigeration system
^ The mechanical portion of the heating system
^ The air delivery portion of the air conditioning system

Before using these charts, refer to Functional Check to verify that the control portion of the air conditioning system is functioning properly.
