Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Component Tests and General Diagnostics >> Functional Check - HVAC System - Automatic

Functional Check - HVAC System - Automatic

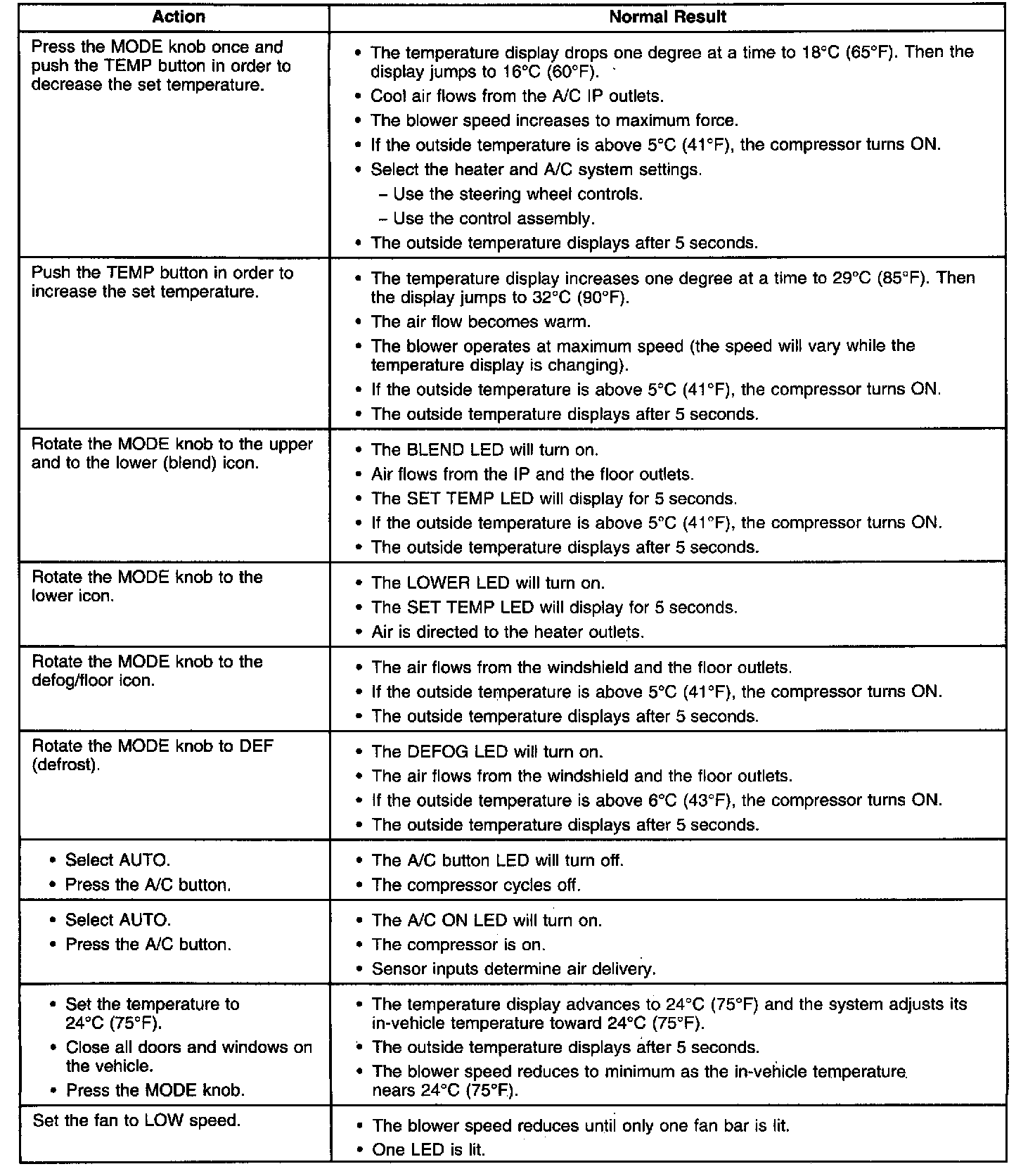

Functional Check (Part 1 Of 3):

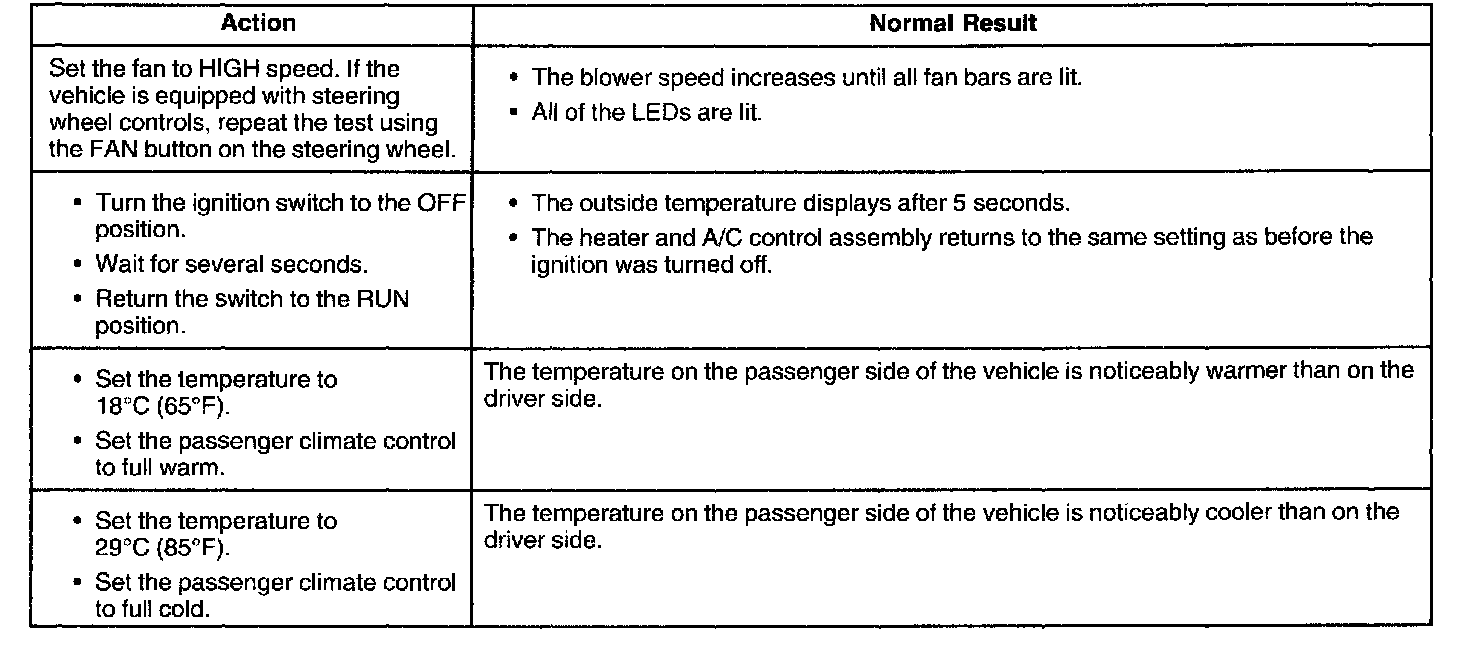

Functional Check (Part 2 Of 3):

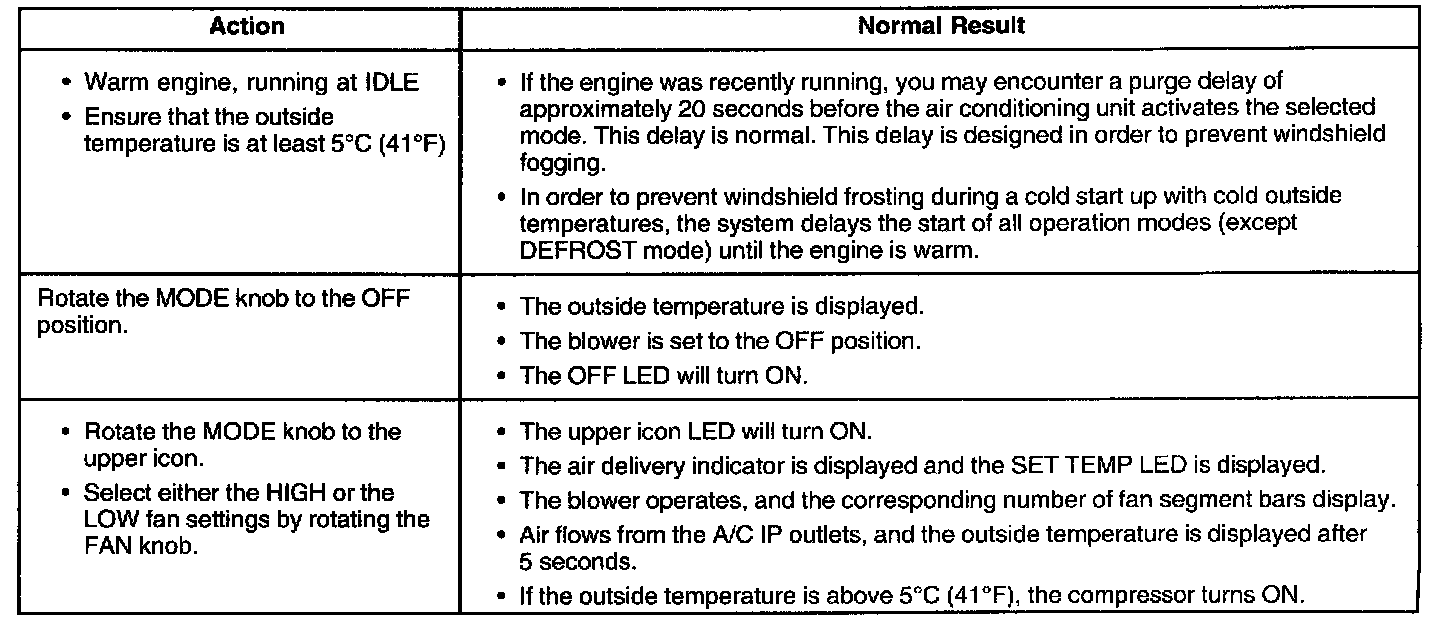

Functional Check (Part 3 Of 3):
