Service Port HVAC: Service and Repair

REMOVAL PROCEDURE

TOOLS REQUIRED
J 39500 Air Conditioning Refrigerant Recovery, Recycling and Recharging (ACR4) System

1. Recover the refrigerant from the A/C system. refer to Refrigerant Recovery and Recharging.

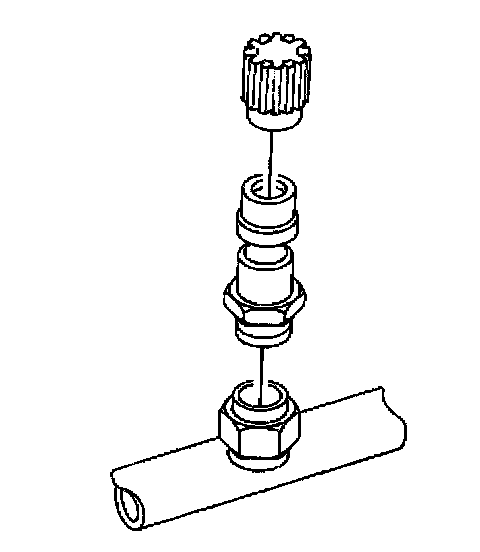

2. Remove the service fitting from the line.

INSTALLATION PROCEDURE

TOOLS REQUIRED
J 39400-A Electronic Halogen Leak Detector

1. Lubricate the O-ring using 525 refrigerant oil.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the service fitting to the line.

Tighten
Tighten the fitting to 12 N.m (9 lb ft).

3. Recharge the A/C system. Refer to Refrigerant Recovery and Recharging.
4. Using the J 39400-A, leak test the A/C system. Refer to Leak Testing.
