Evaporator Core: Service and Repair

REMOVAL PROCEDURE




1. Remove the HVAC module assembly. Service and Repair
2. Remove the seal from around the heater core and the evaporator tubes.
3. Remove the upper A/C evaporator case.

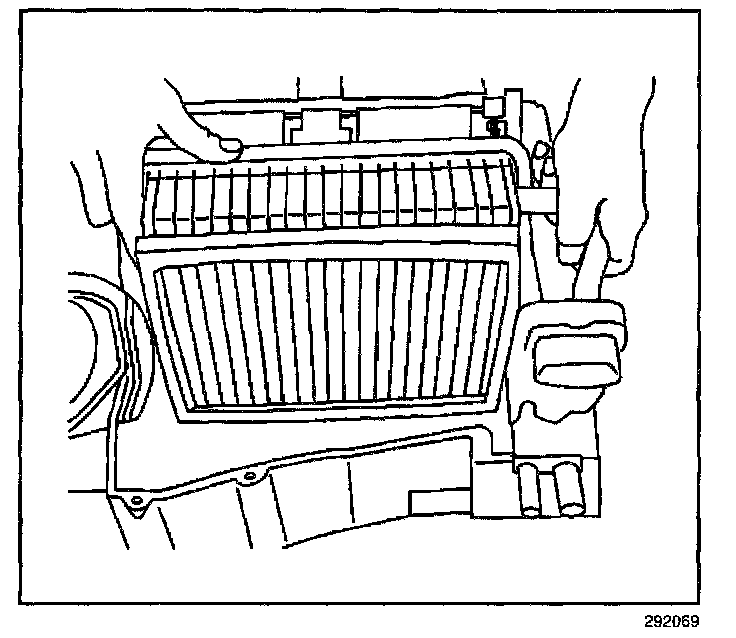

4. Remove the evaporator core.

INSTALLATION PROCEDURE




1. Install the evaporator core.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the upper A/C evaporator case.

Tighten
Tighten the screws to 1.4 N.m (12 lb in).




3. Install the seal over the heater core and the evaporator pipes.
4. Install the HVAC assembly.
