Ducts and Outlets

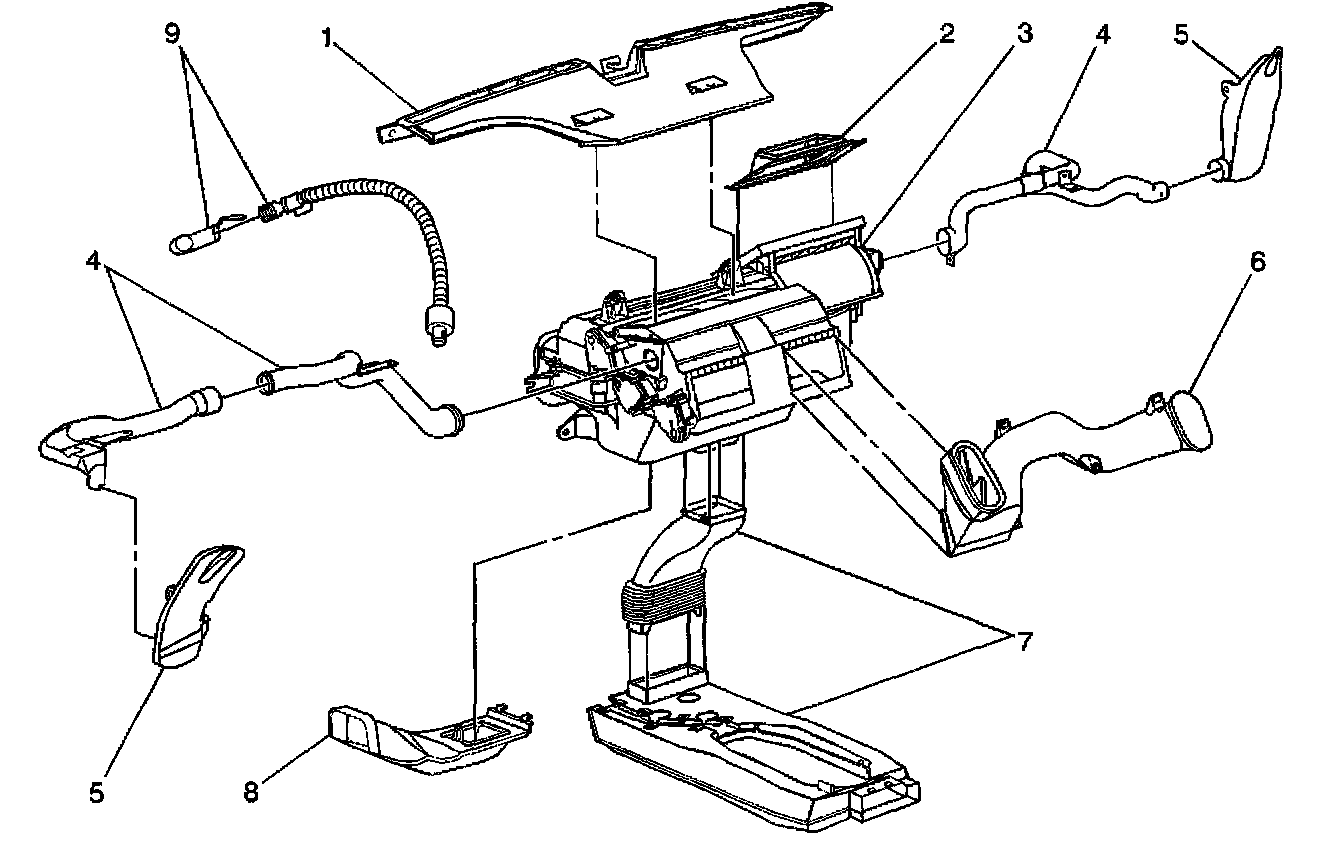

The ducting is the network of tubing used in order to get conditioned air from the A/C module (3) to the following locations:
^ The instrument panel
^ The rear seat duct (7)
^ The cross car ducts
^ The defrost duct (1,4)

There are 2 major ducts that are attached to the air distribution chamber.

The cross car ducts are attached to the back of the instrument panel. The cross car ducts receive air from the bottom of the distribution chamber. The ducts deliver the air through 2 outlets in the following locations:
^ At the rear of the front seat center arm rest
^ The console
