Oil Pump Pipe and Screen Assembly Replacement

REMOVAL PROCEDURE
1. Remove the transmission assembly.

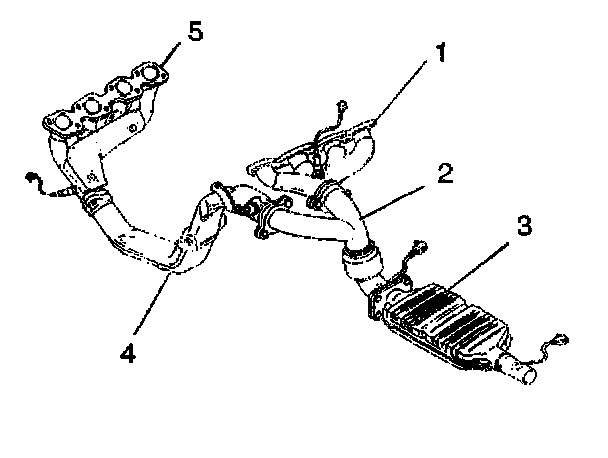

2. Remove the exhaust crossover pipe retaining bolts from the left exhaust manifold (5) flange and the exhaust manifold rear pipe (2).
3. Remove the exhaust cross over pipe (4).
4. Remove the engine oil pan.

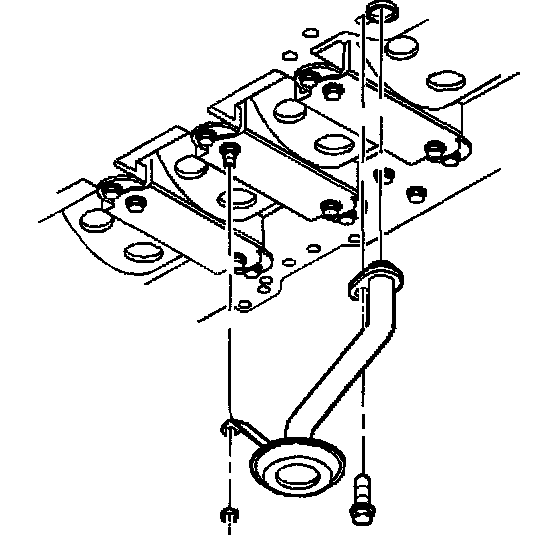

5. Remove the support nut and mounting bolt.
6. Remove the oil pump pickup pipe.

INSTALLATION PROCEDURE
1. Lubricate the pickup seal, located in the oil manifold, with engine oil.

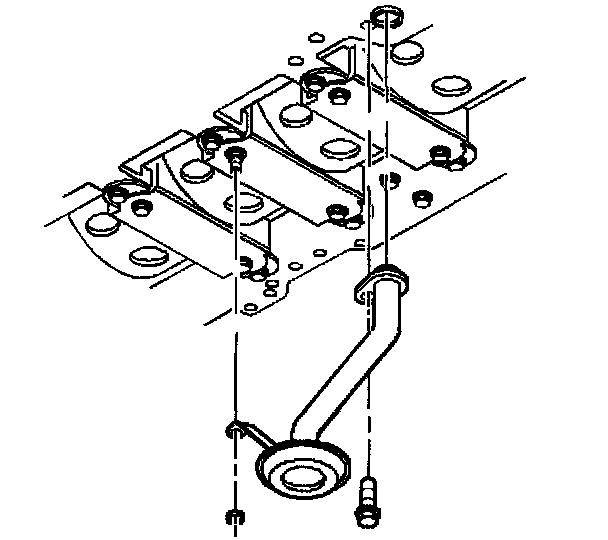

2. Position the oil pump pickup pipe to the lower crankcase.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the mounting bolt and support nut.
^ Tighten the mounting bolt to 10 Nm (89 inch lbs.).
^ Tighten the support nut to 25 Nm (18 ft. lbs.).

4. Install the oil pan.

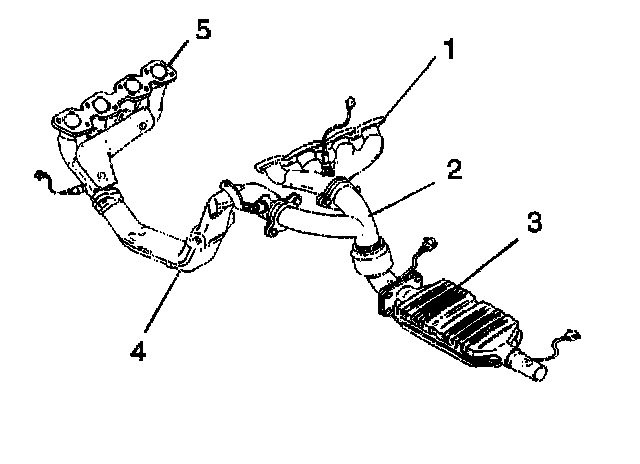

5. Install the exhaust crossover pipe (4).
6. Install the exhaust crossover retaining bolts into the left exhaust manifold (5) flange and the exhaust manifold rear pipe (2).
^ Tighten the exhaust crossover retaining bolts to 25 Nm (18 ft. lbs.).

7. Install the transmission assembly.
