Power Windows Schematics

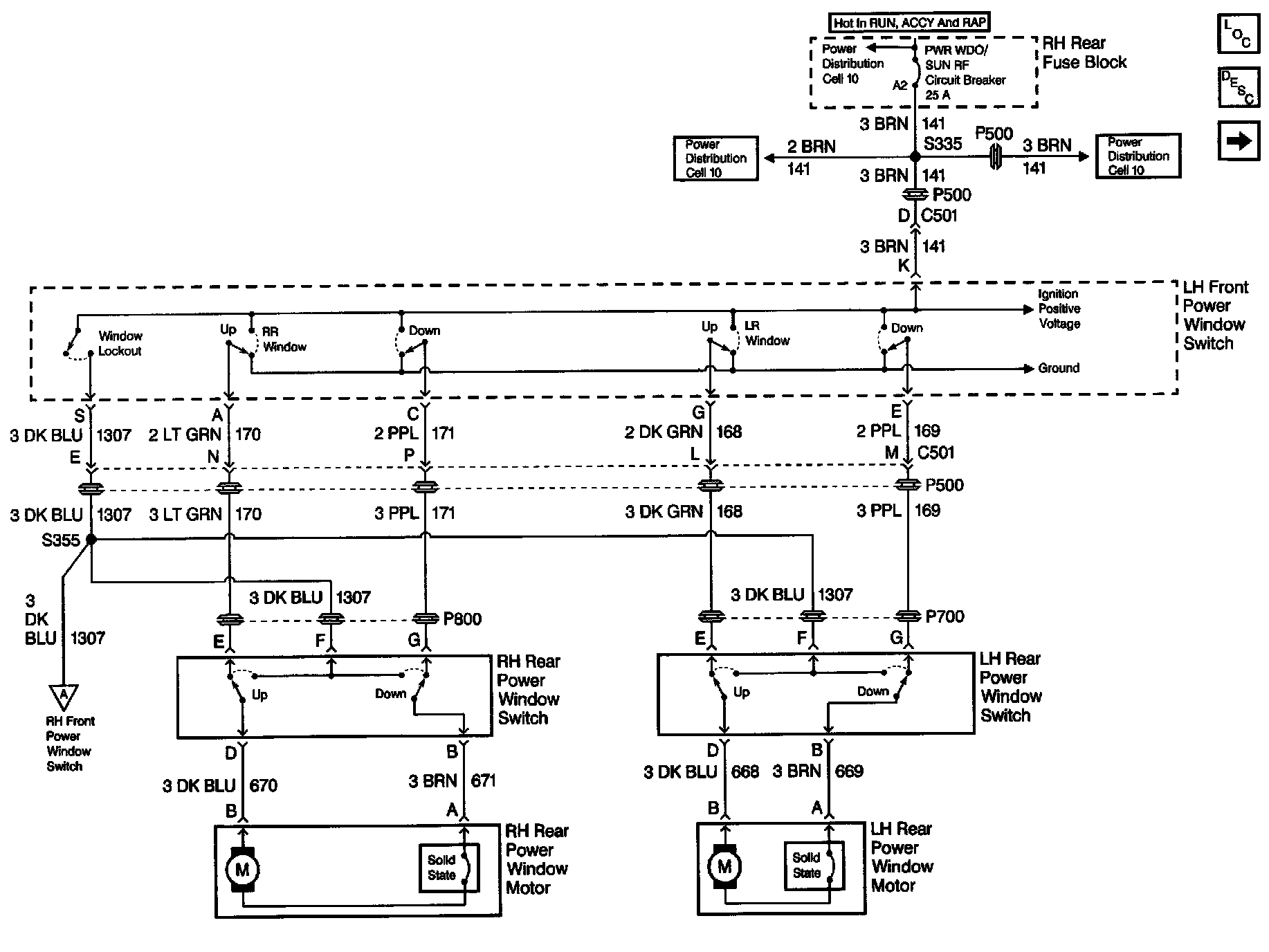

Power Windows Schematics: Oldsmobile (1 Of 2):

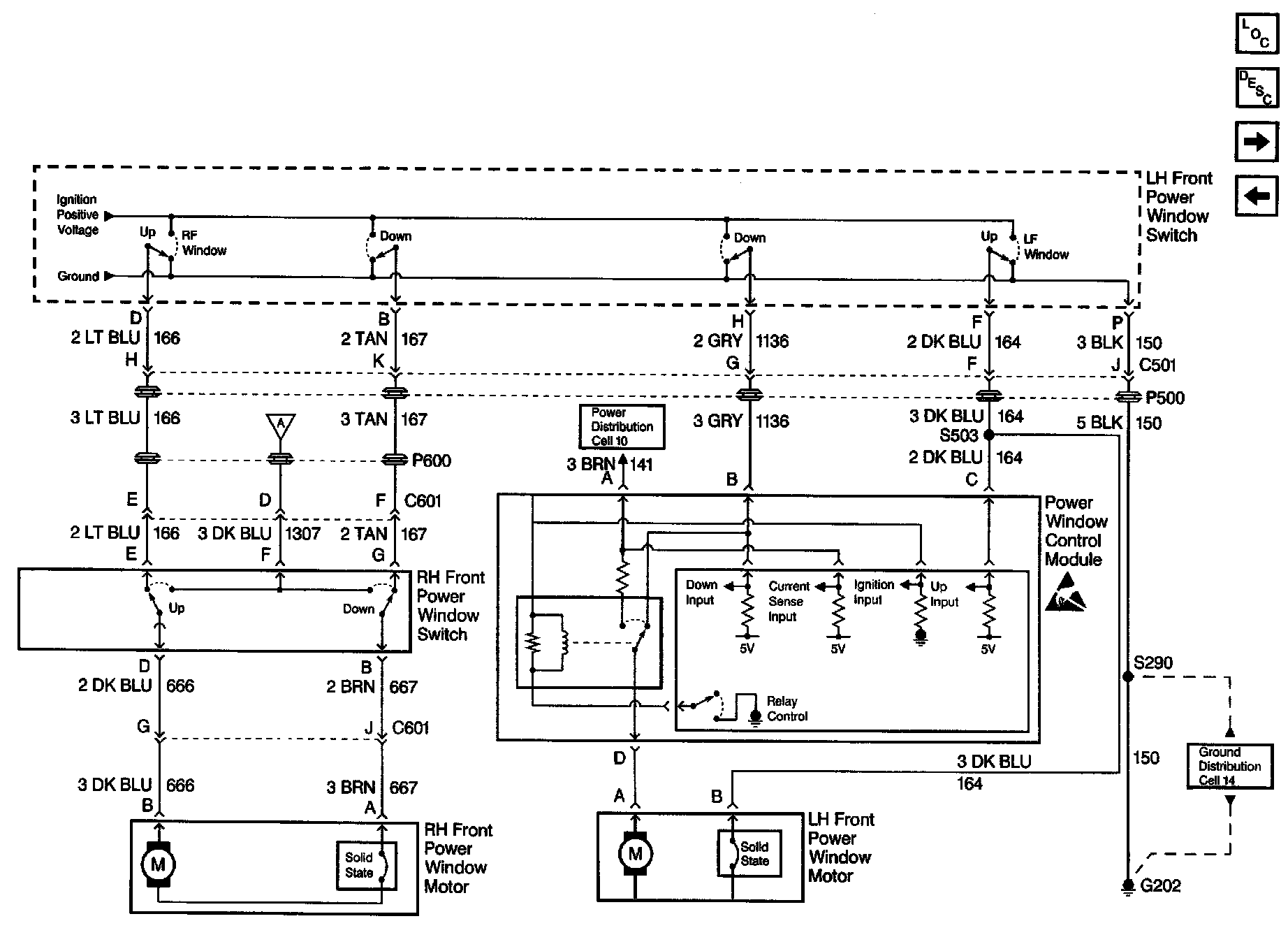

Power Windows Schematics: Oldsmobile (2 Of 2):
