Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> System Diagram >> Power Windows - Express Down Module

Power Windows - Express Down Module

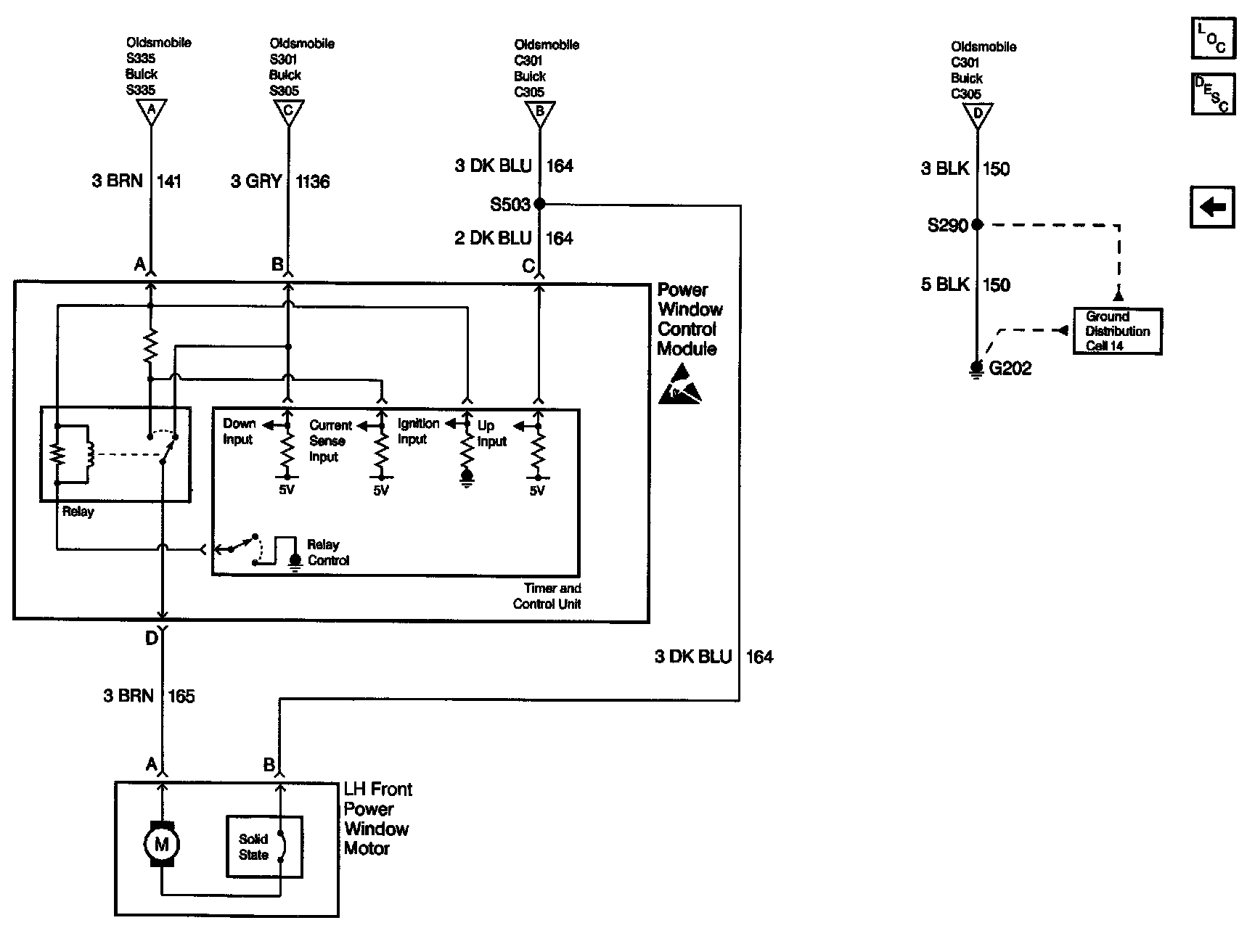

Power Windows Schematics: Express Down Module:
