Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> System Diagram >> Charge Indicators Controls

Charge Indicators Controls

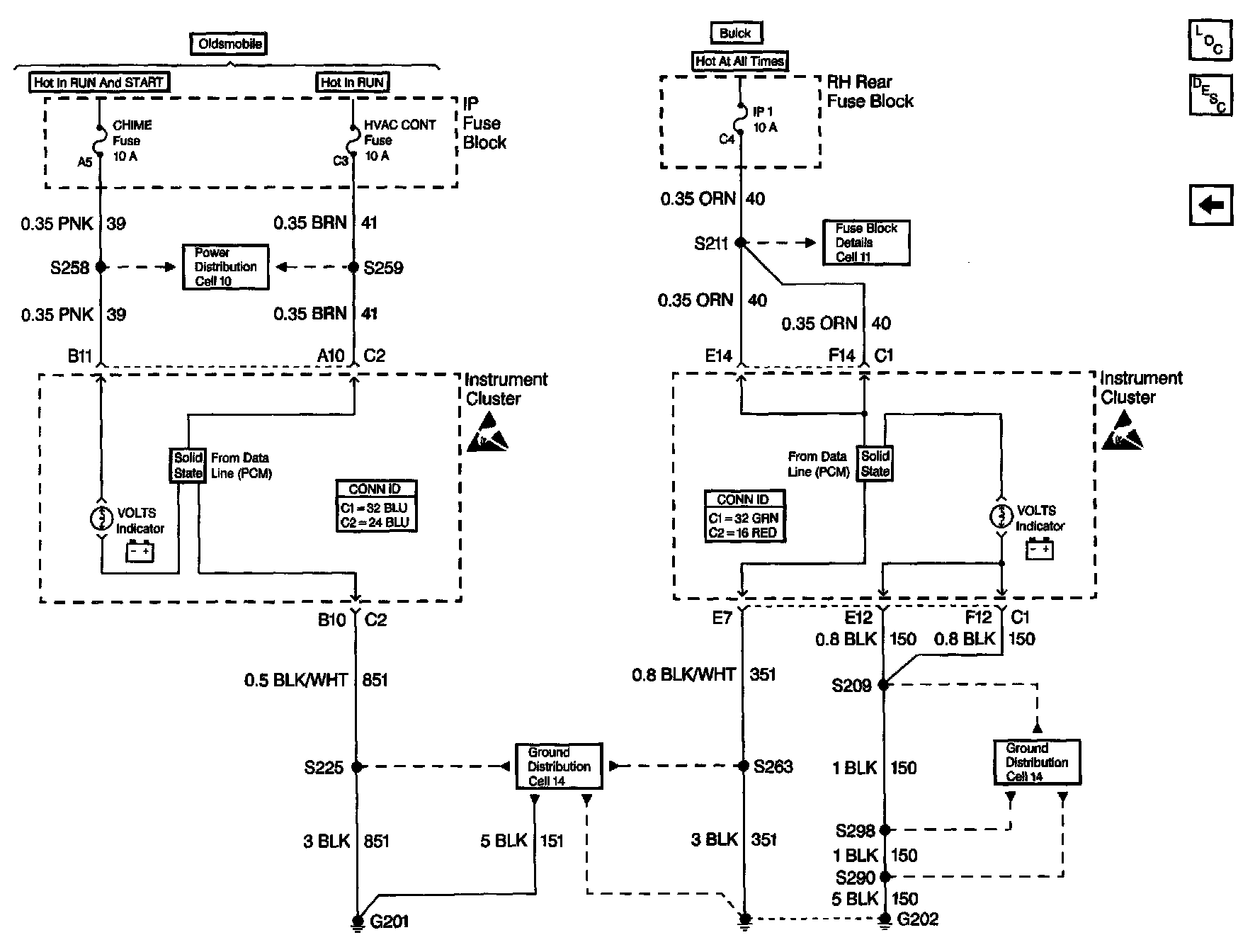

Starting And Charing Schematics : Charge Indicator Controls:
