Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> Ground Distribution Diagrams >> G302

G302

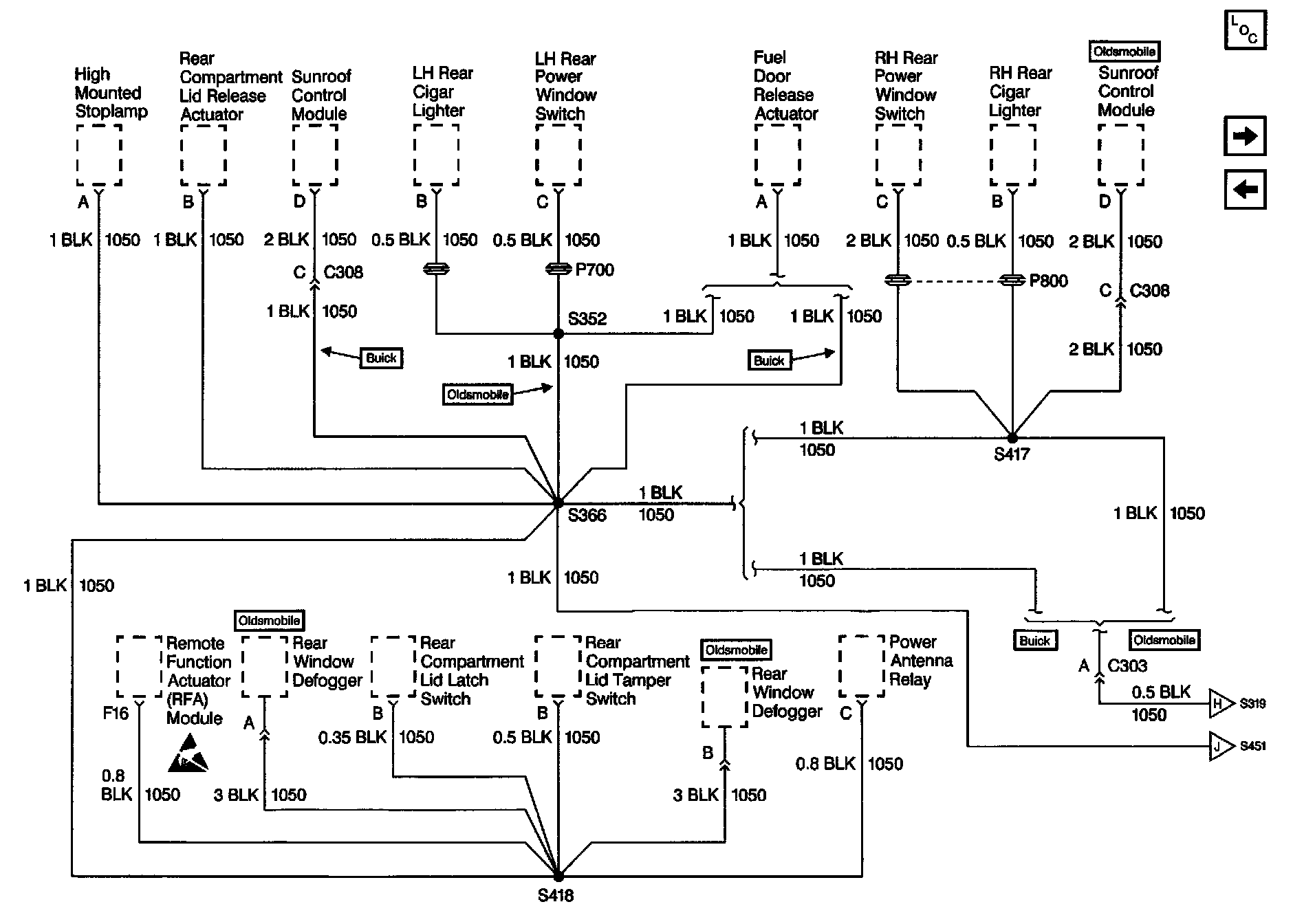

Ground Distribution Schematics: G302 (1 Of 2):



Ground Distribution Schematics: G306 And G302 (2 Of 2):
