G202
G202

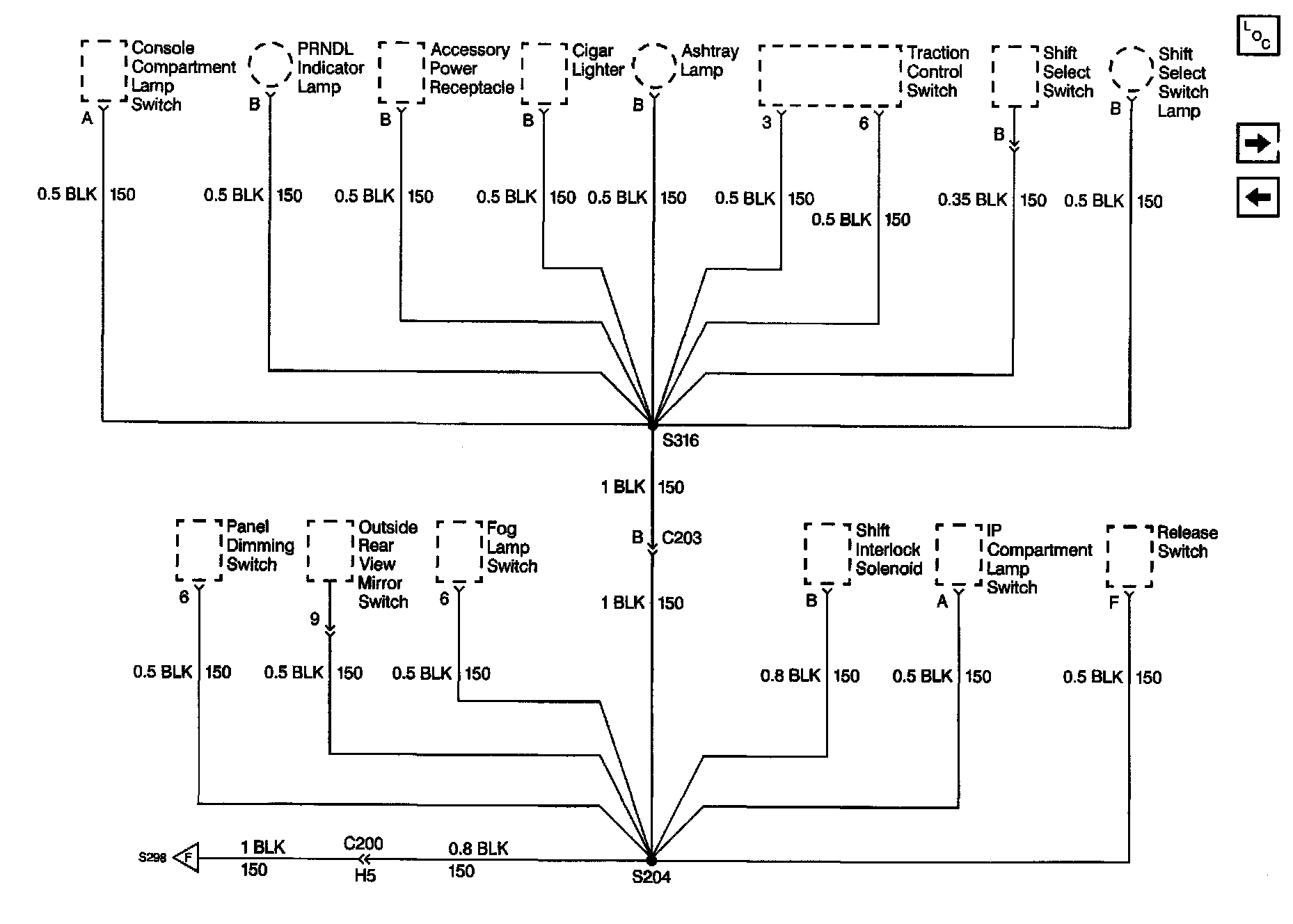

Ground Distribution Schematics: G202 (1 Of 3) (Oldsmobile):
Ground Distribution Schematics: G202 (2 Of 3) (Oldsmobile):
Ground Distribution Schematics: G202 (3 Of 3) (Oldsmobile):
