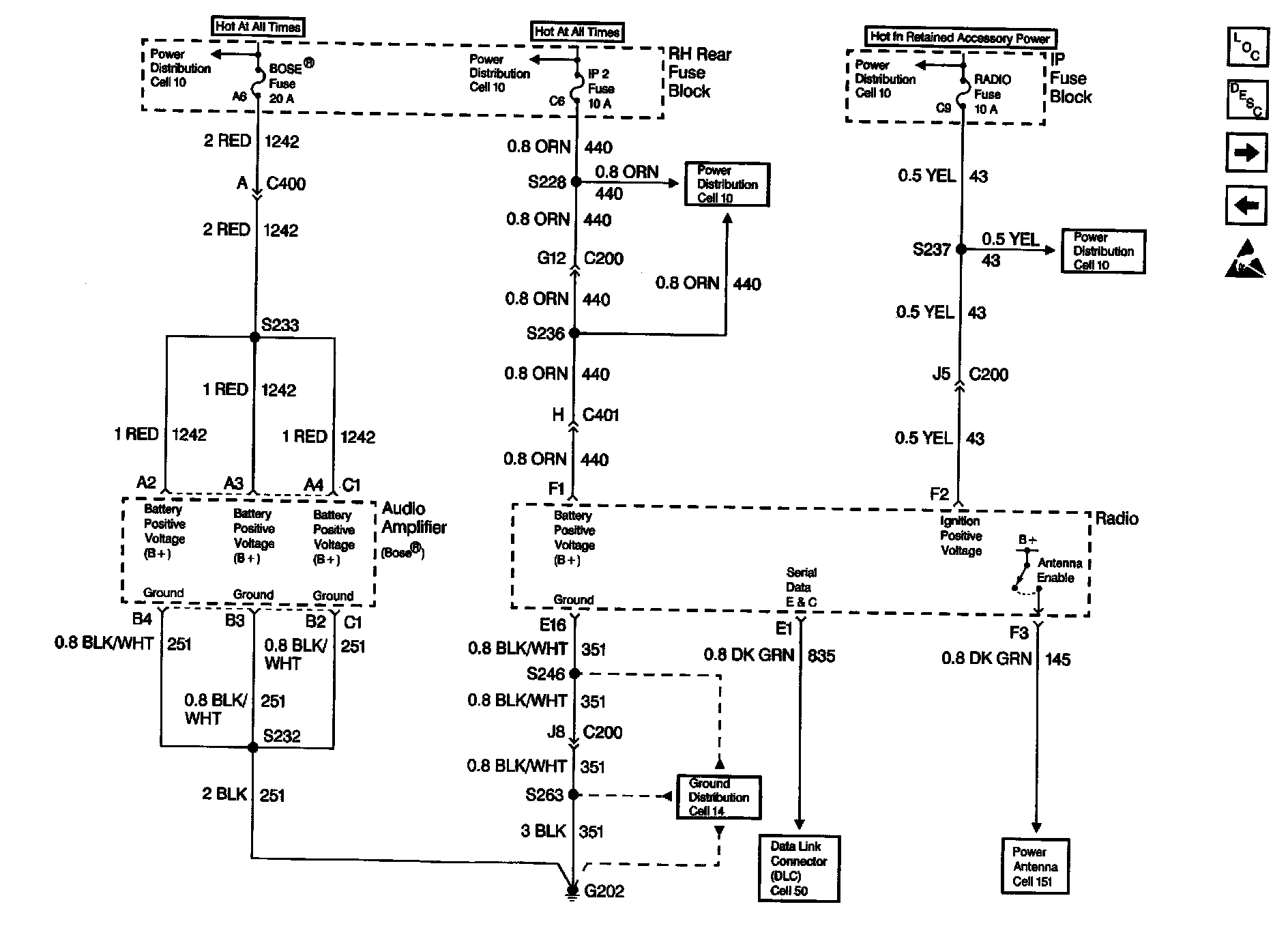

Radio and Audio Amplifier Power and Ground (W/UF1)

Radio/Audio System Schematics: Radio And Audio Amplifier Power And Ground (W/UF1):
