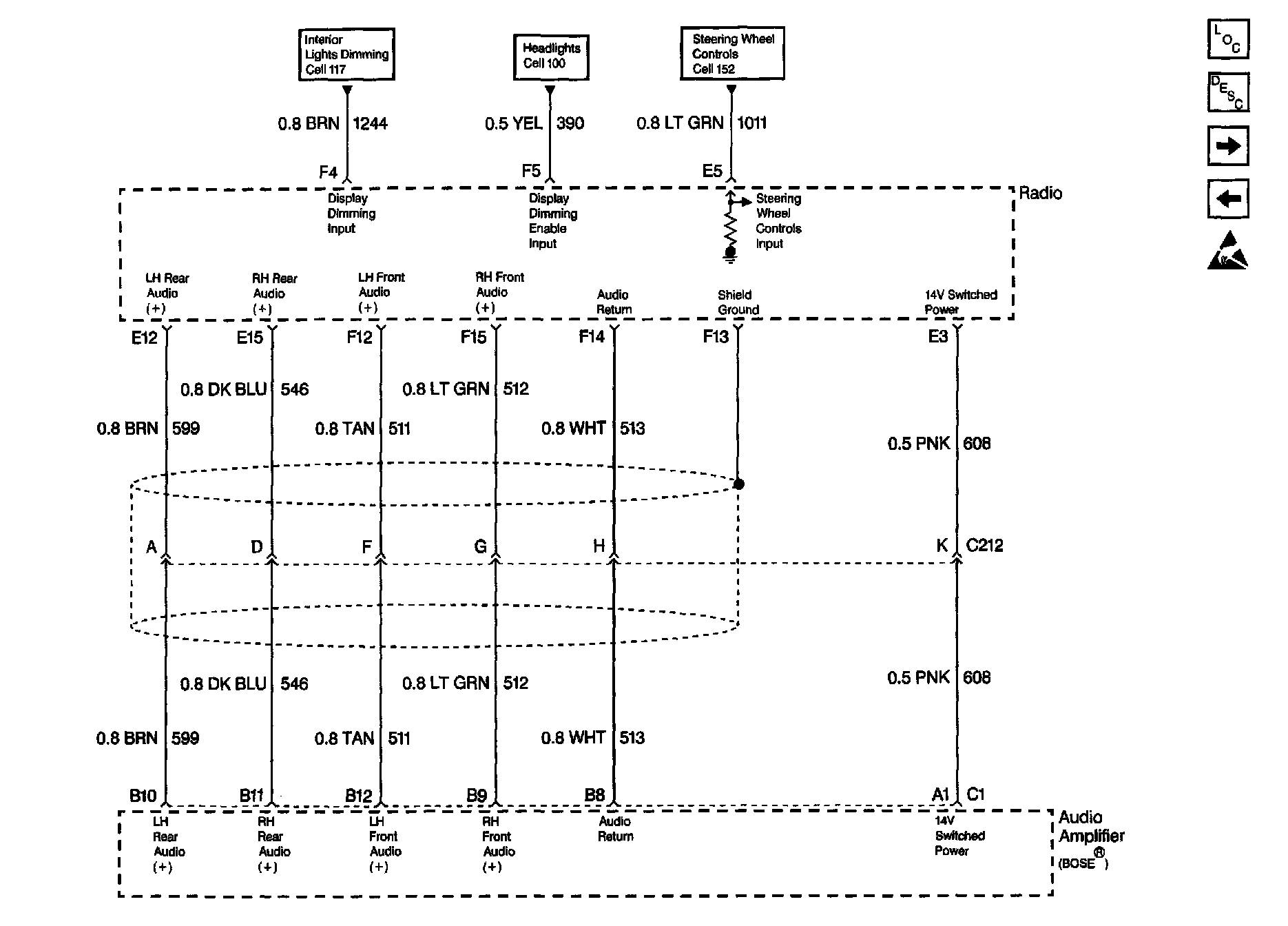

Radio and Audio Amplifier Inputs (W/UF1)

Radio/Audio System Schematics: Radio And Audio Amplifier Inputs (W/UF1):
