Powertrain Controls

PCM Power and Grounds

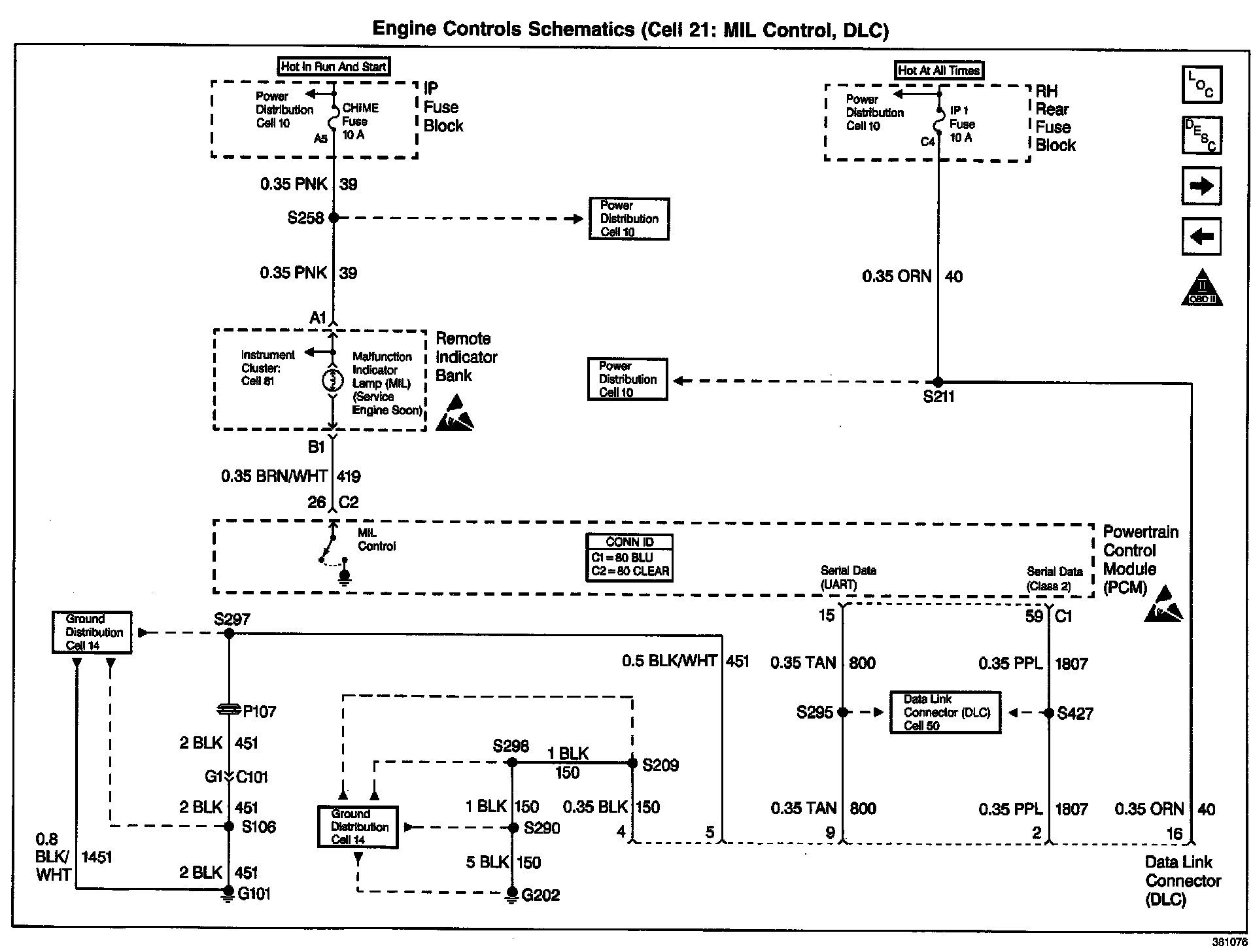

MIL Control, DLC




Ignition Control Module

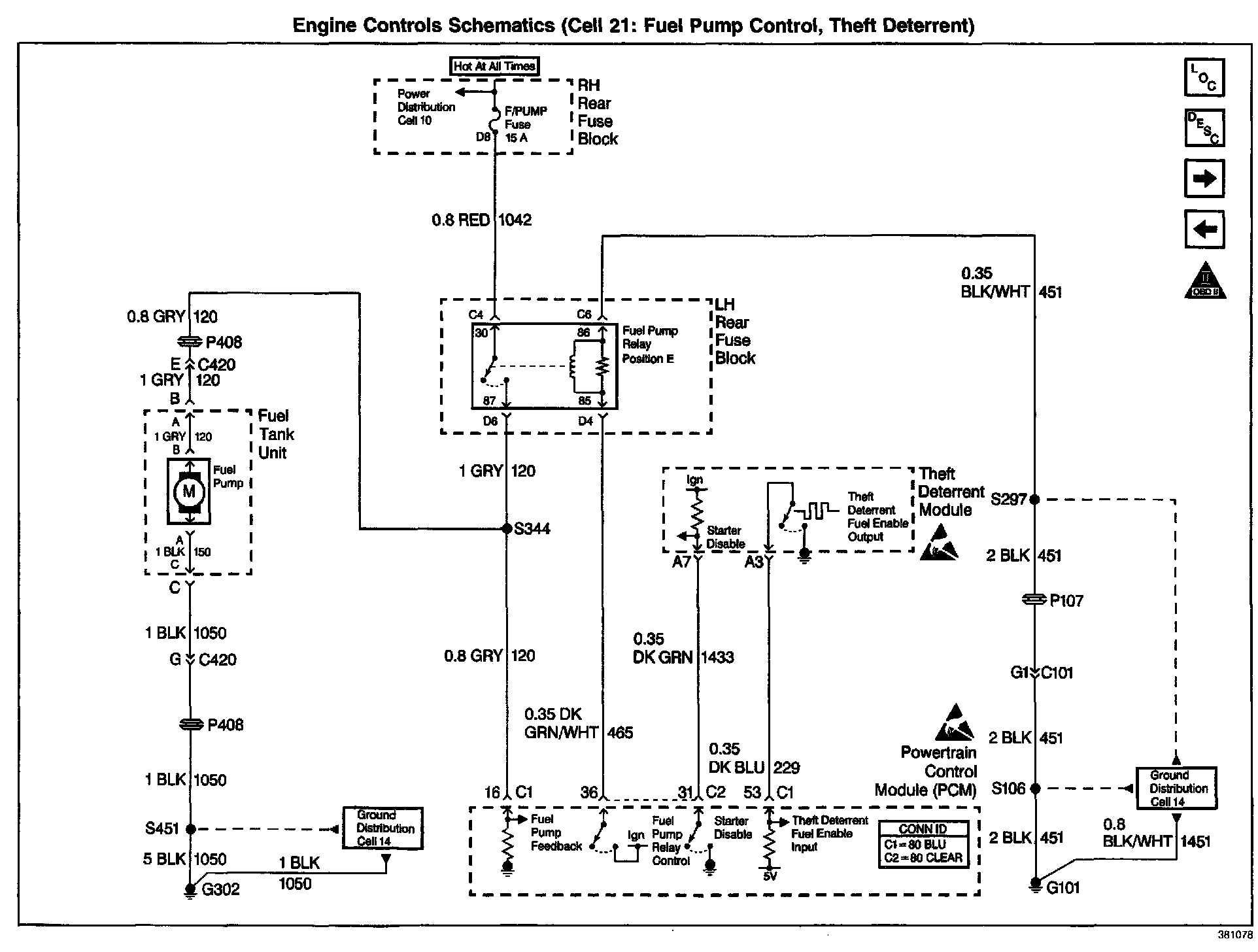

Fuel Pump Control, Theft Deterrent




Fuel Injectors

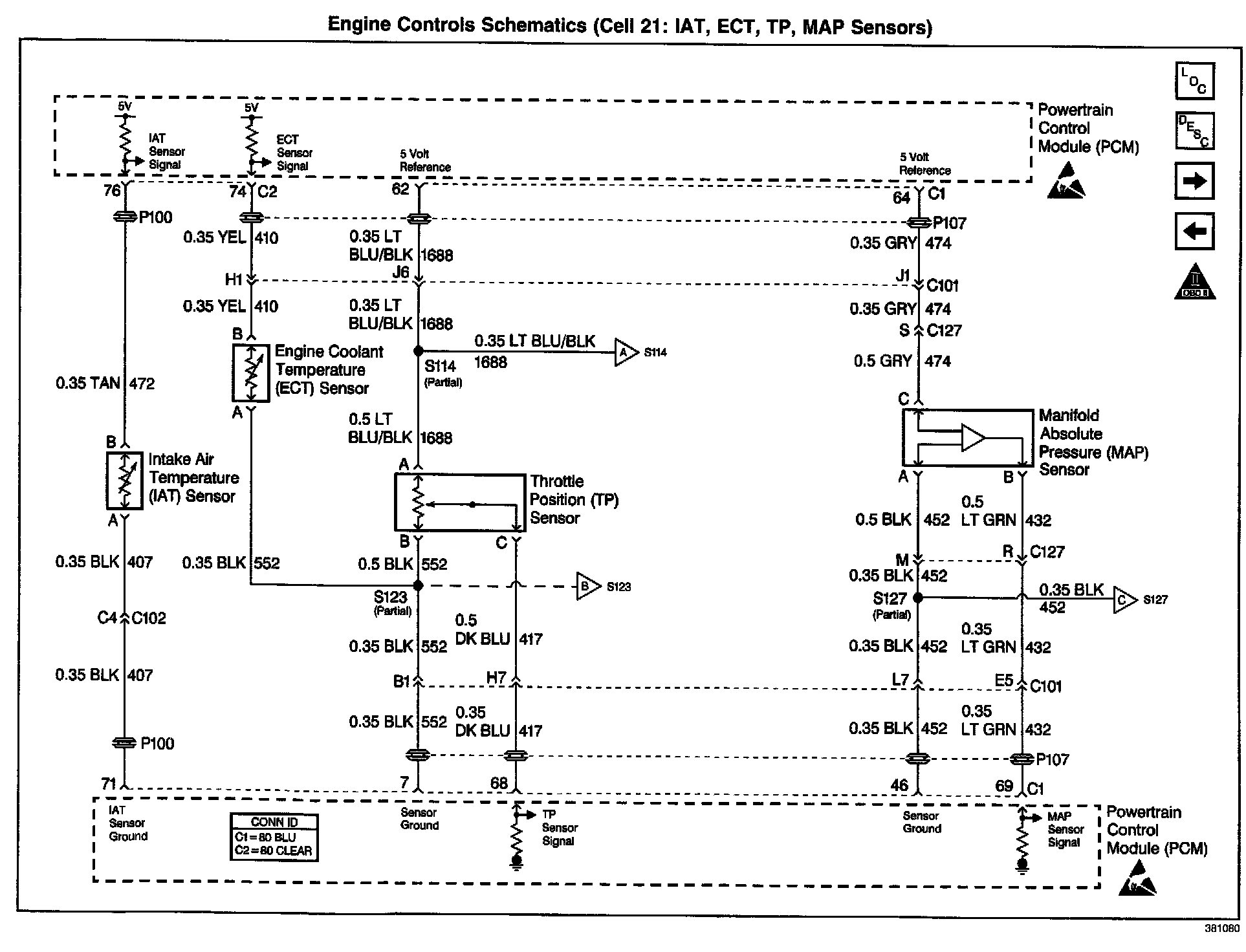

IAT, ECT, TP, MAP, Sensors

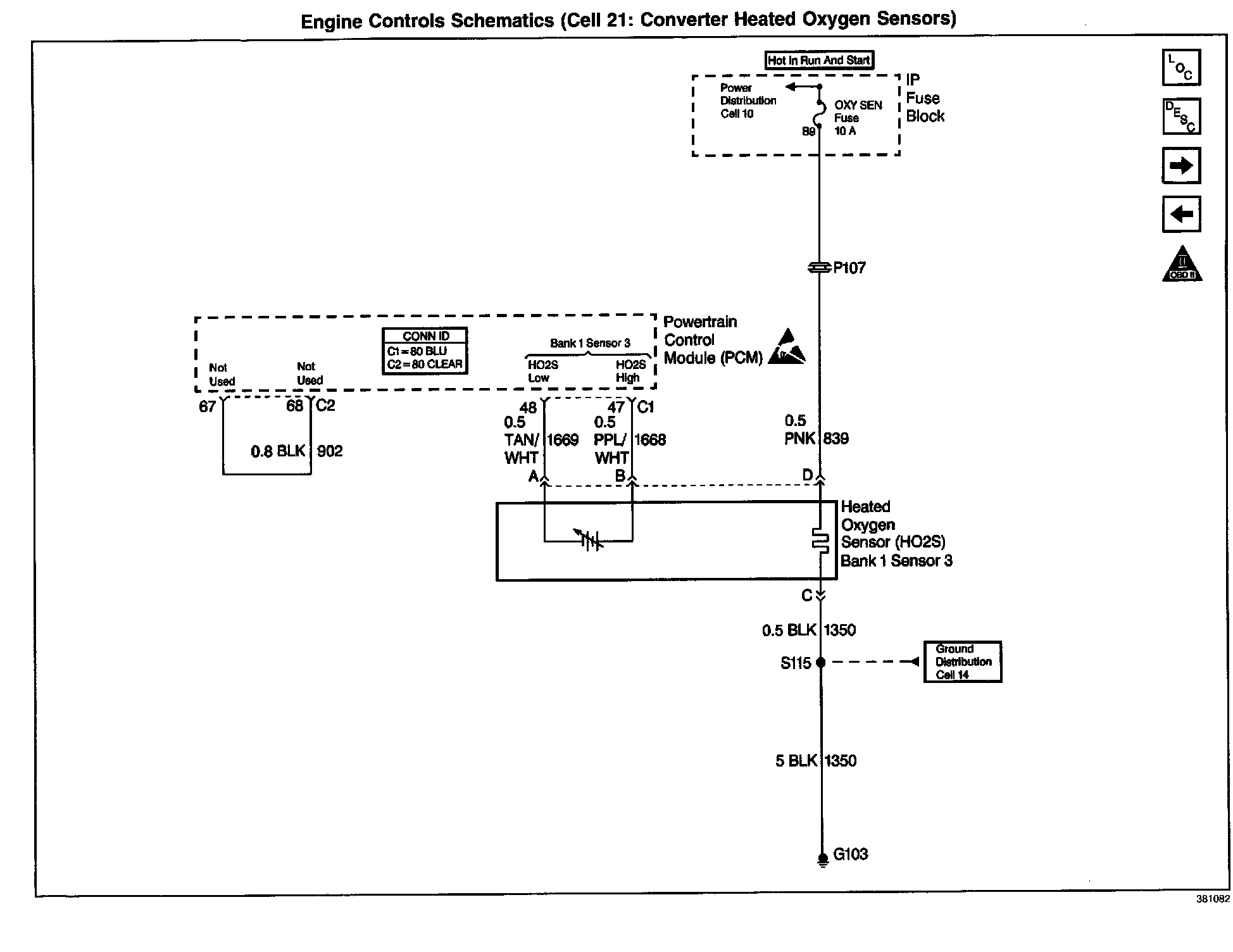

Converter Heated Oxygen Sensors

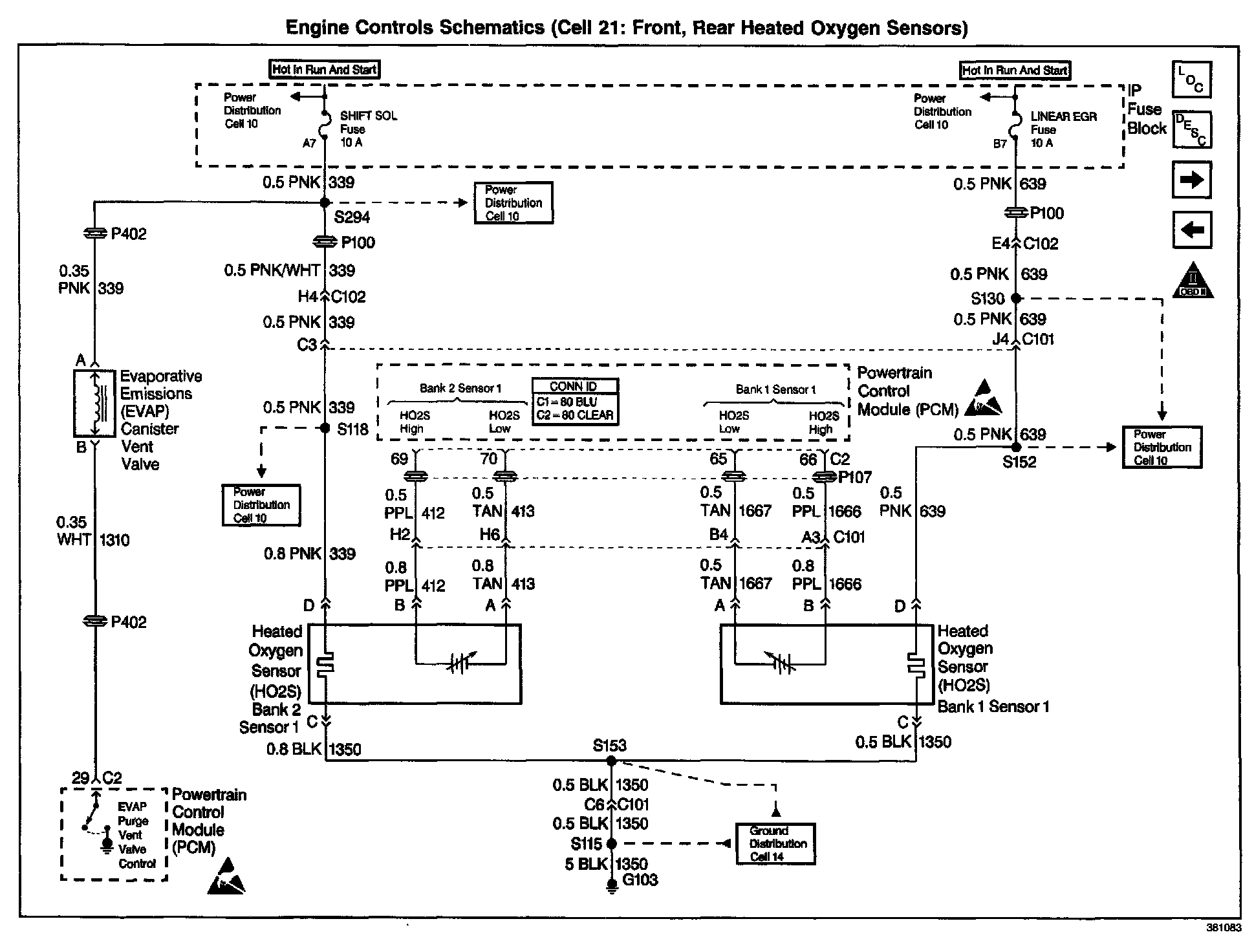

Front, Rear Heated Oxygen Sensors

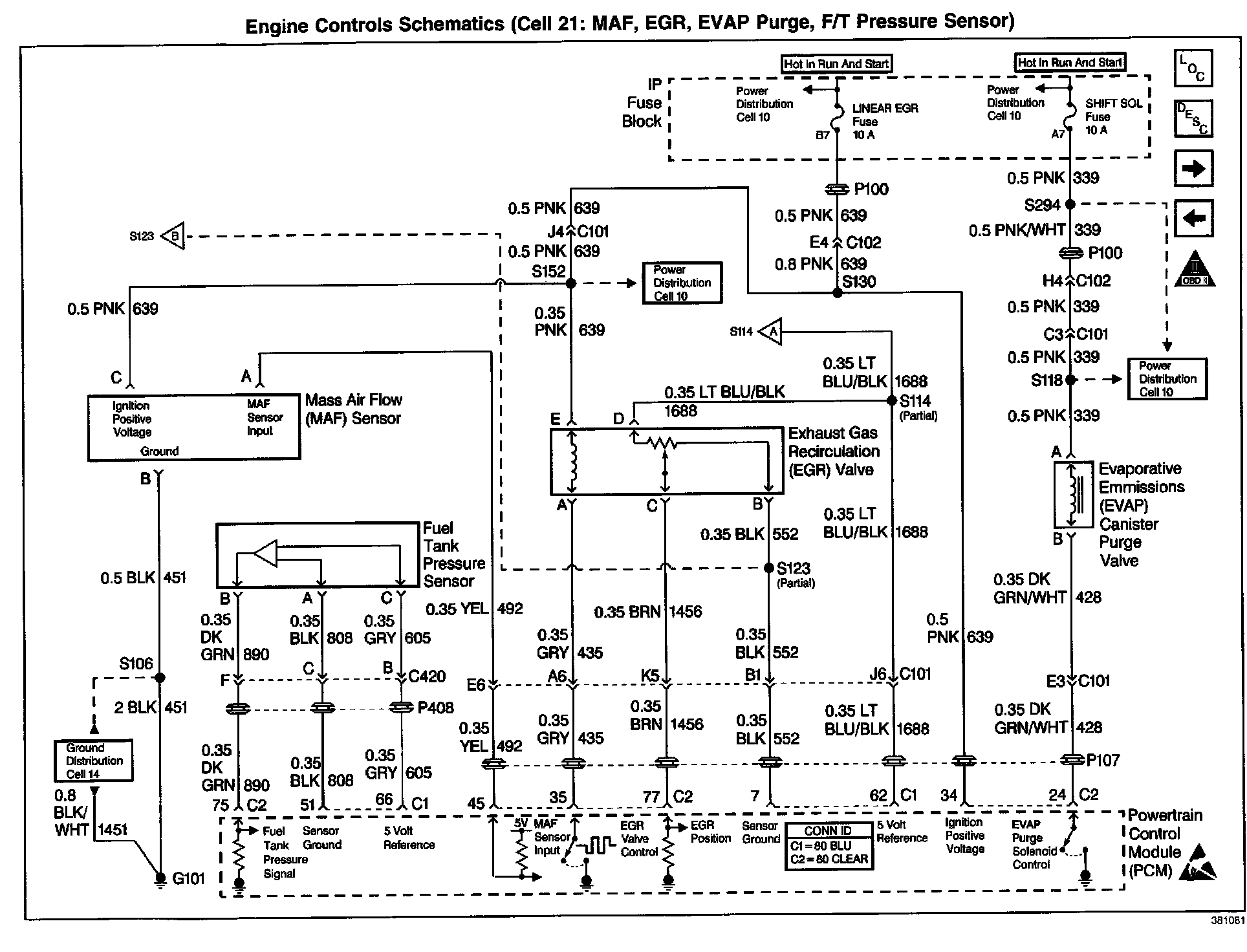

MAF, EGR, [1][2]EVAP Purge, F/T Pressure Sensor

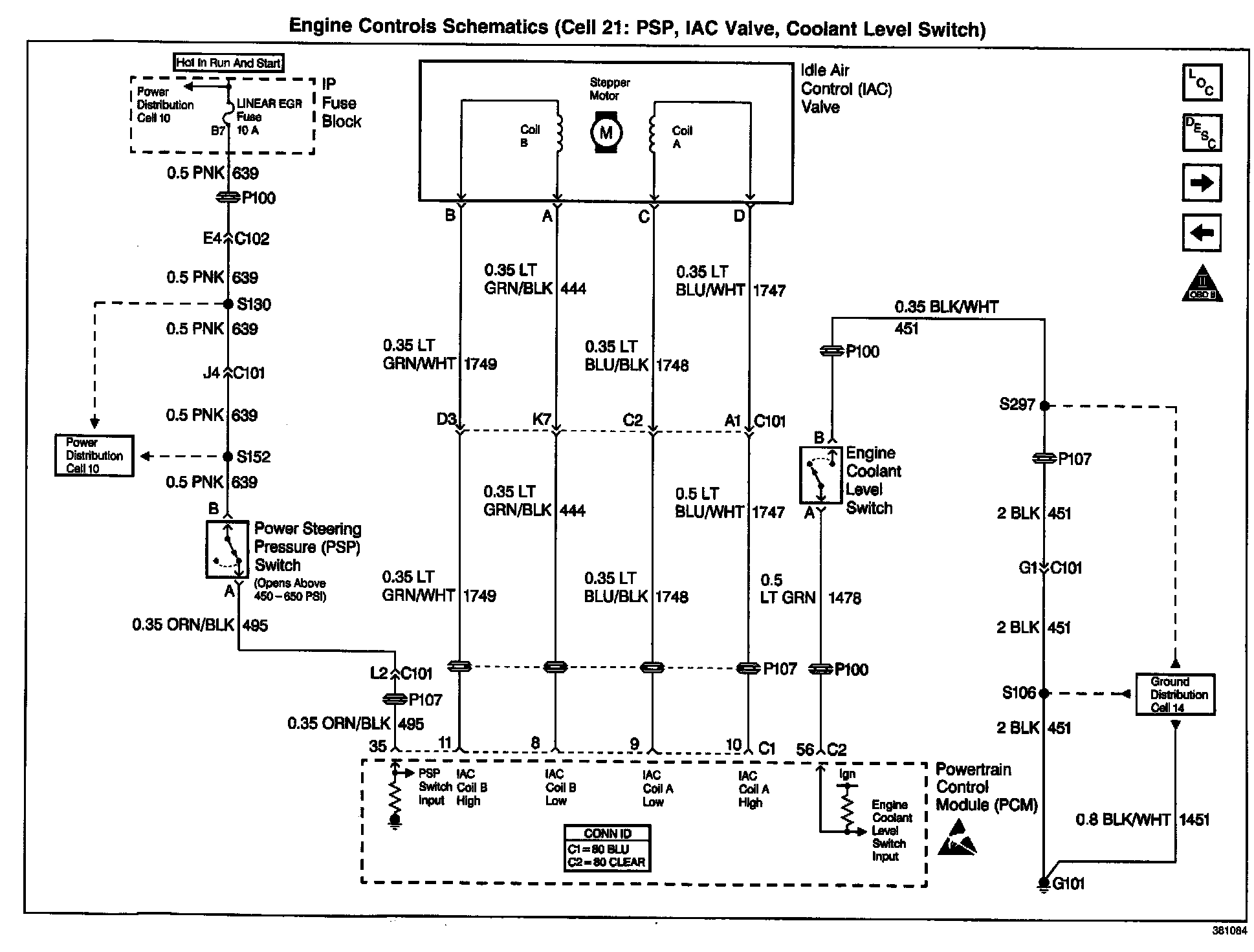

PSP, IAC Valve, Coolant Level Switch

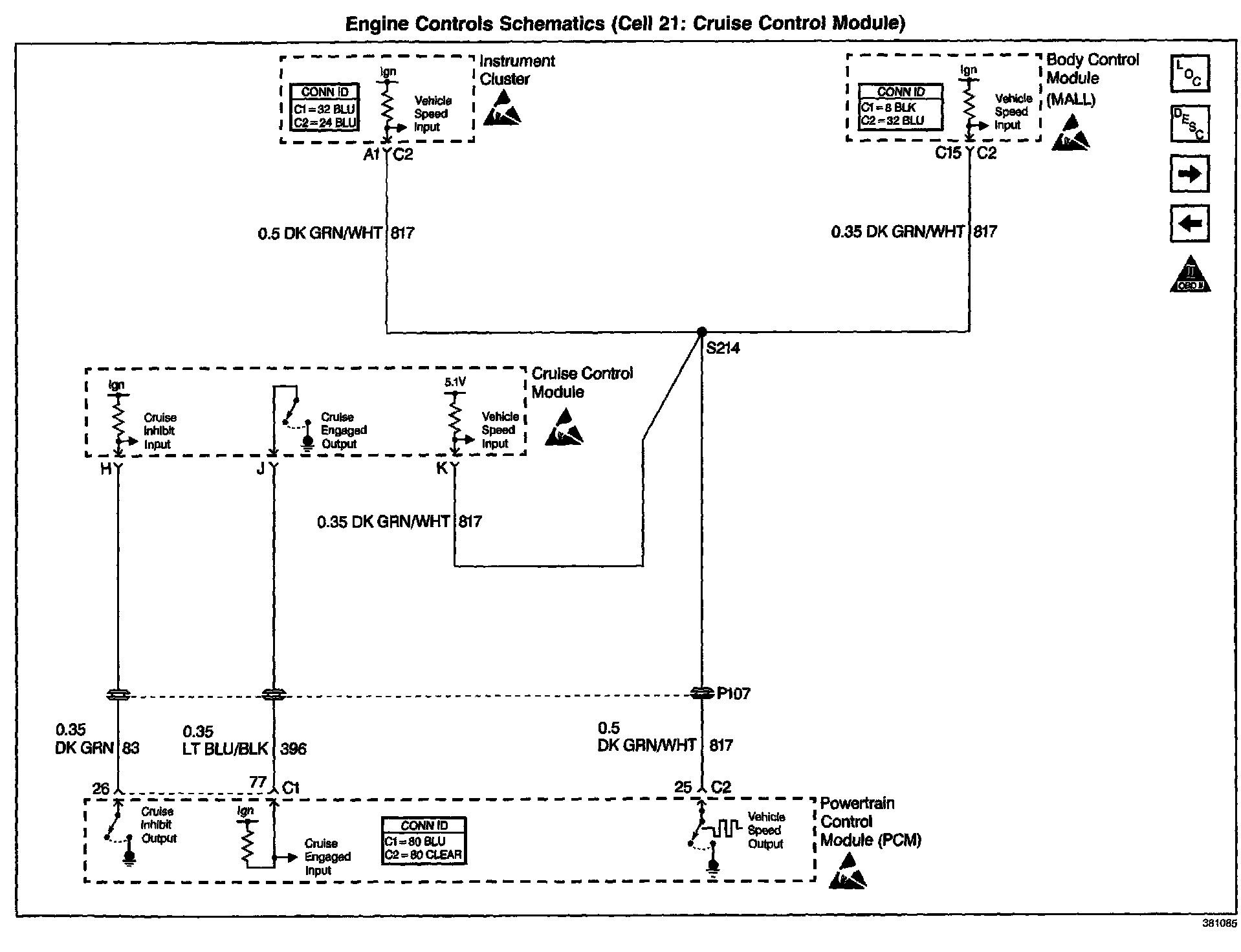

Cruise Control Module

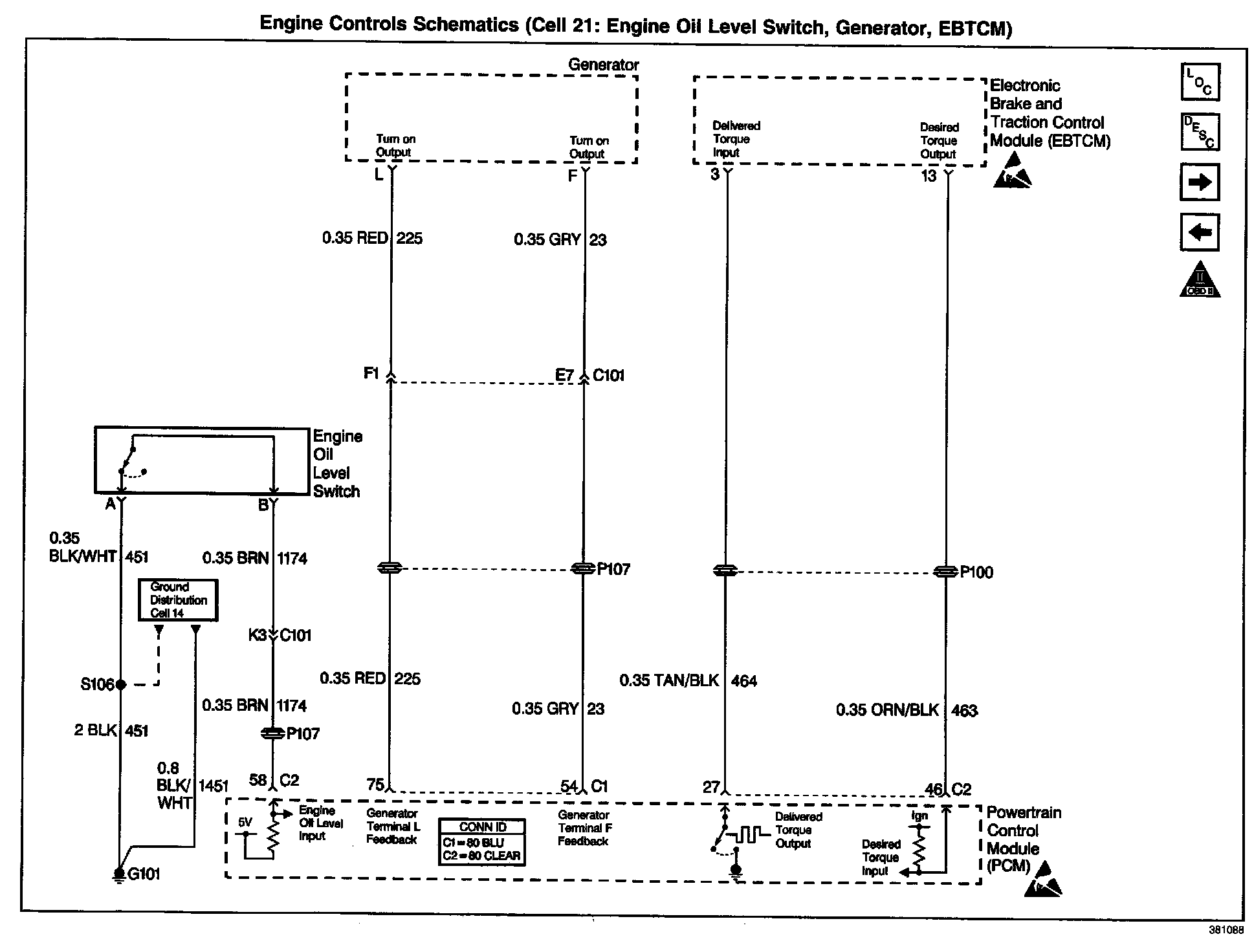

Engine Oil Level Switch, Generator, EBTCM

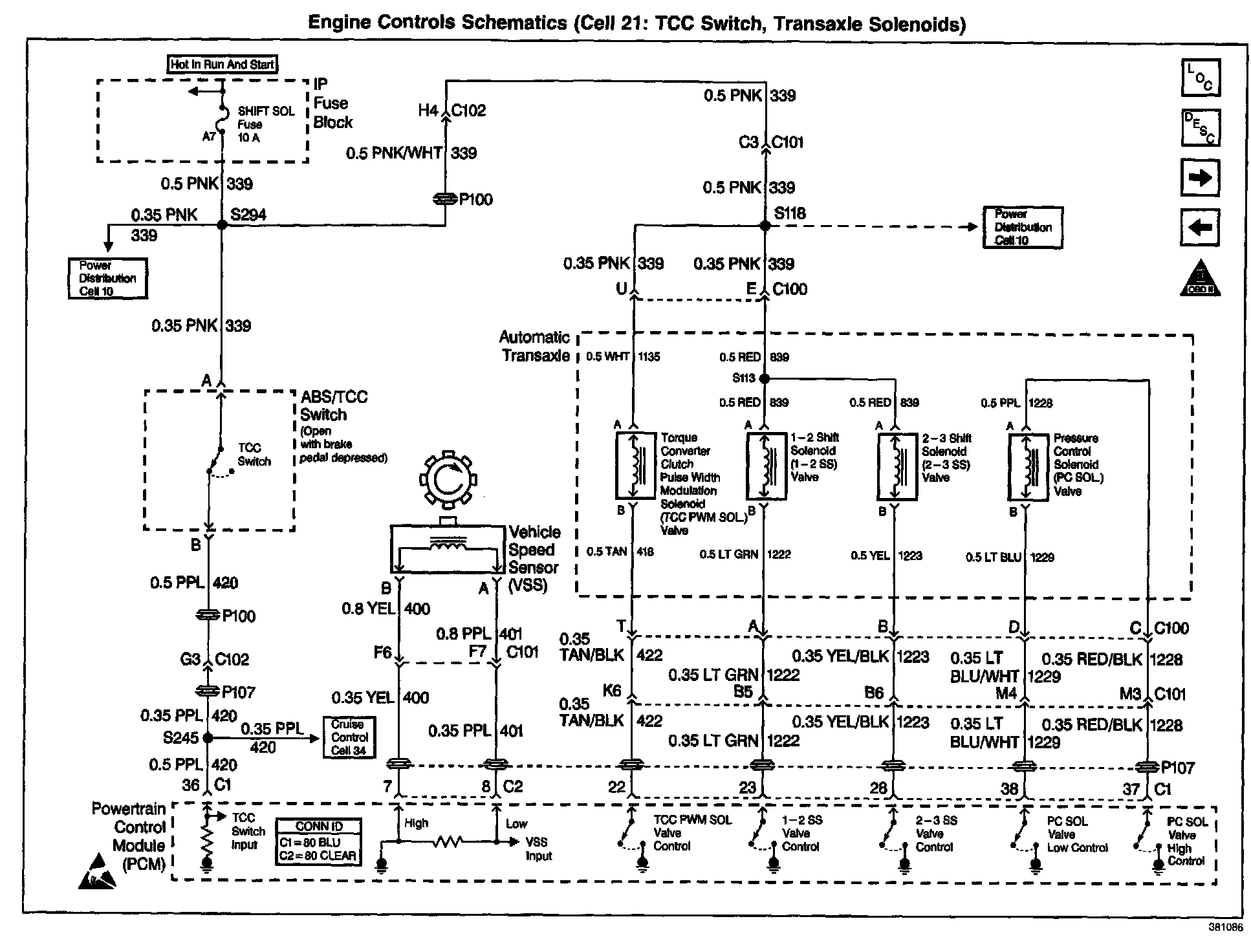

TCC Switch, Transaxle Solenoids

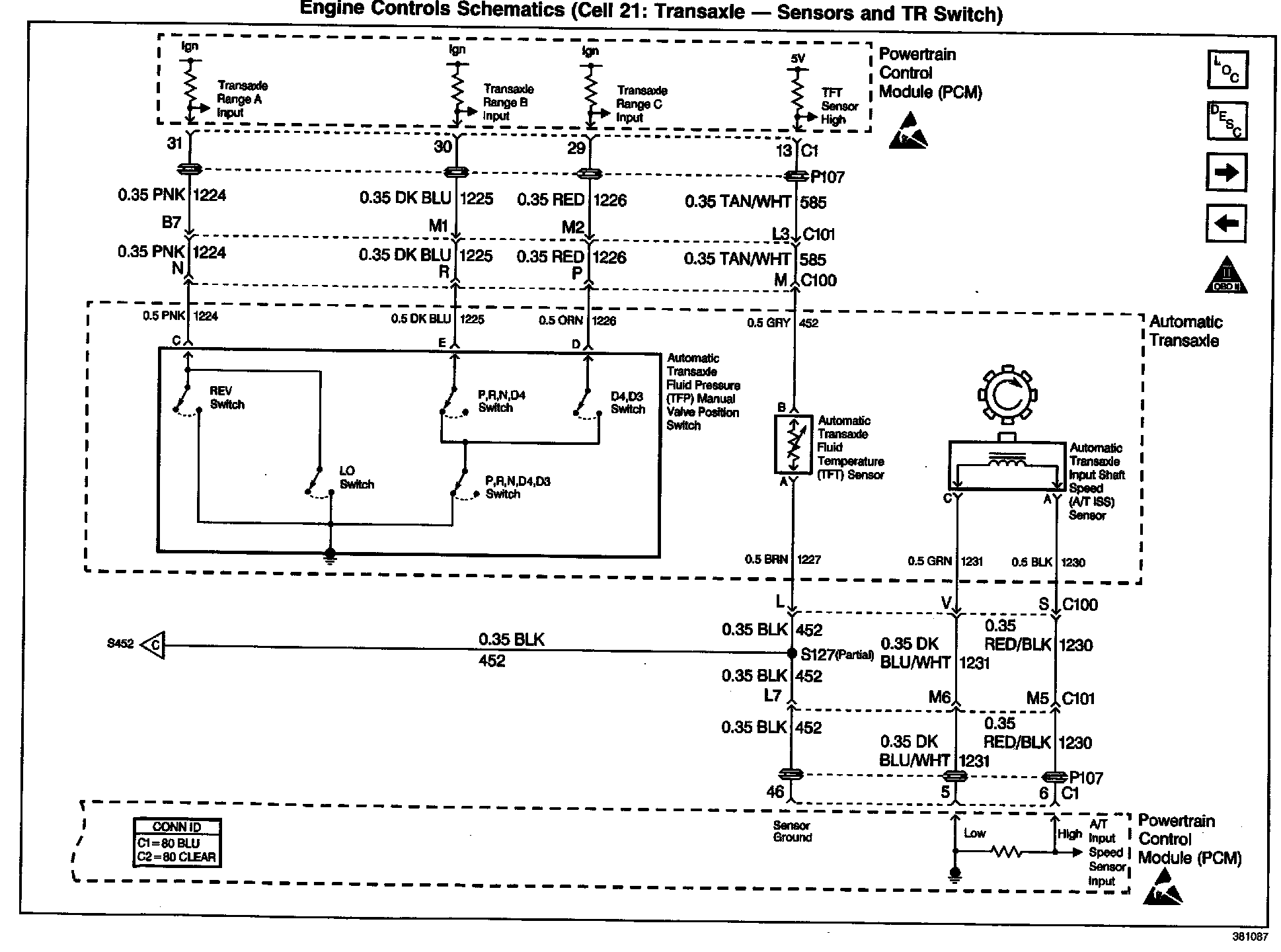

Transaxle - Sensors and TR Switch

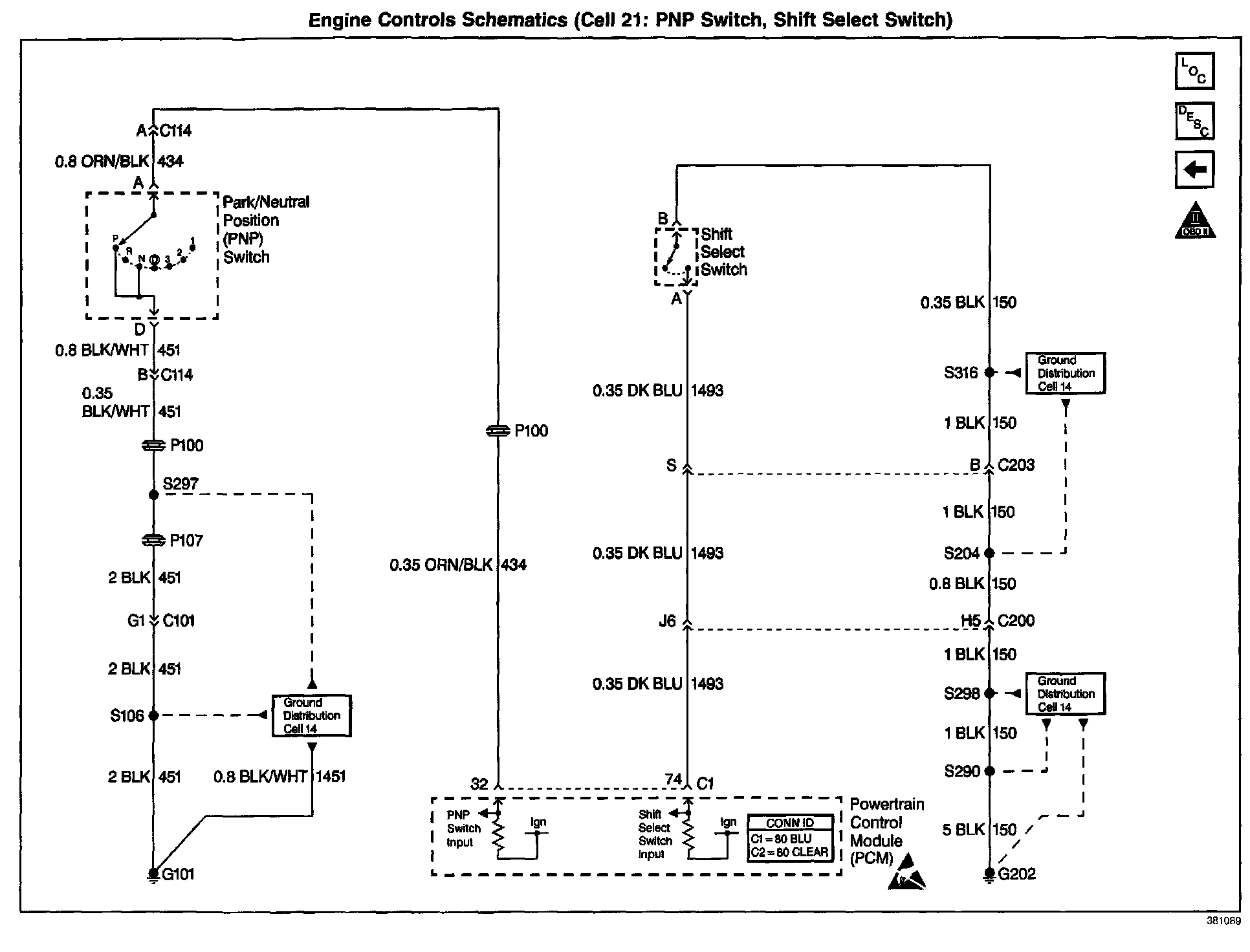

PNP Switch, Shift Select Switch




A/C Sensors

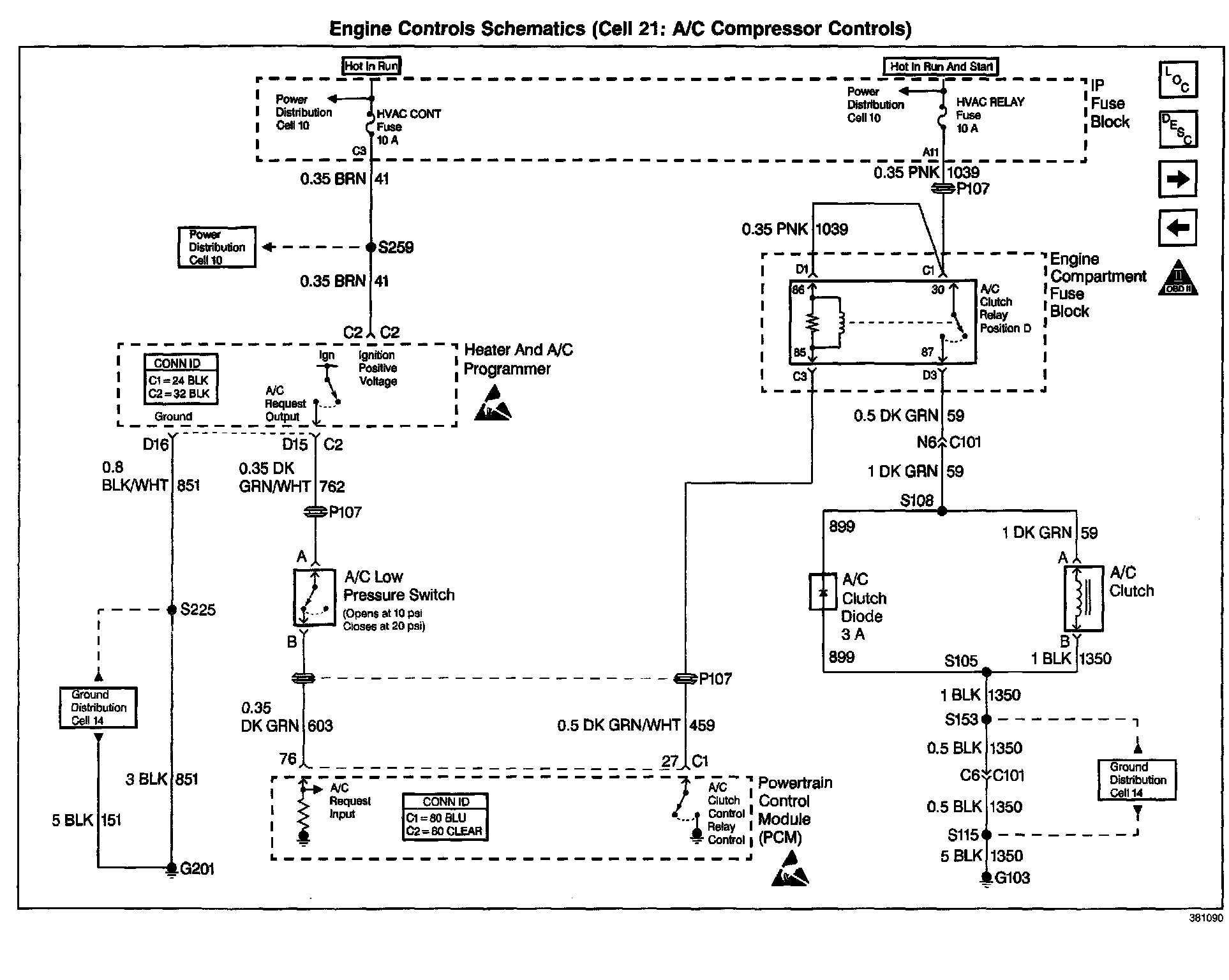

A/C Compressor Controls

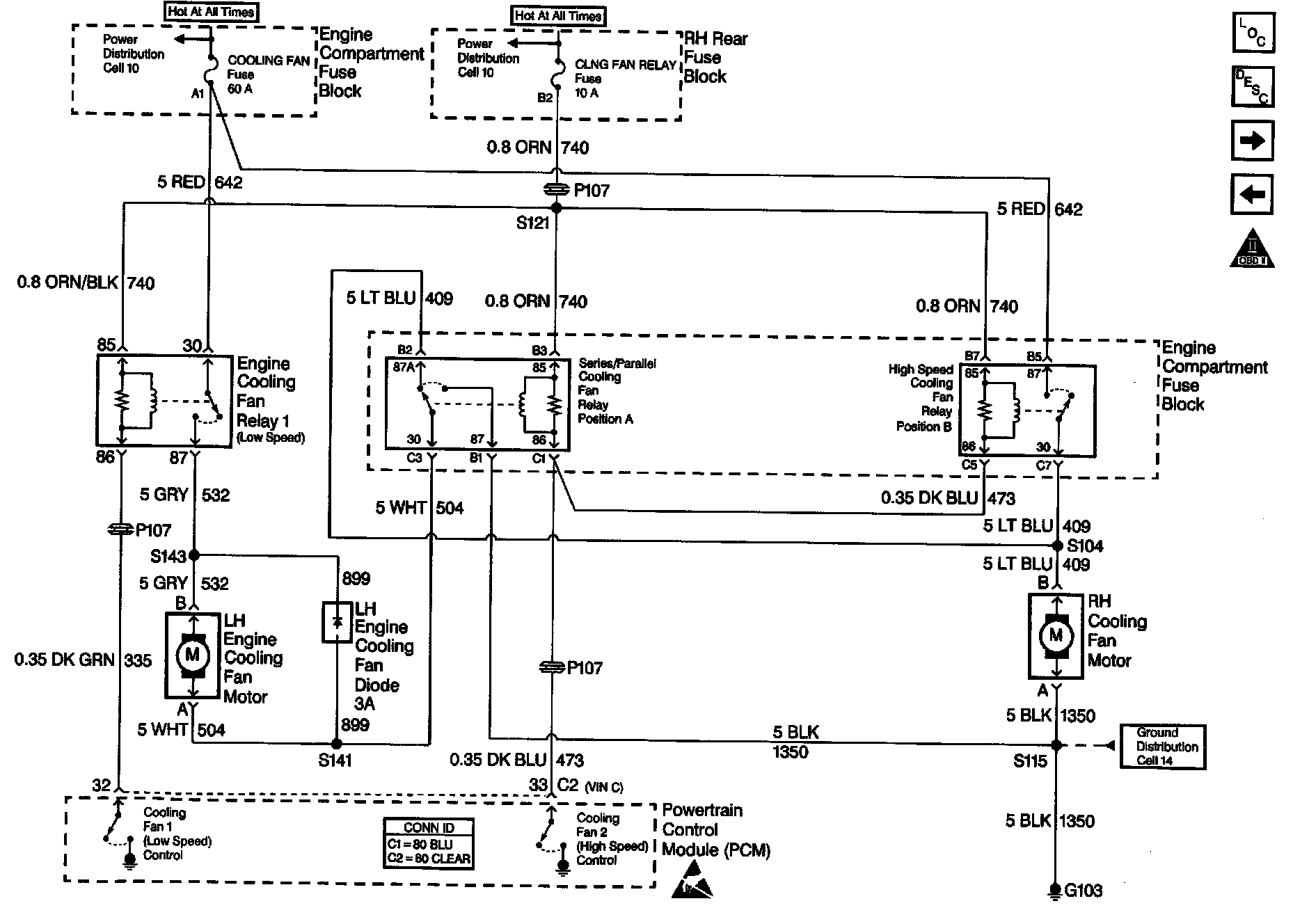

Cooling Fans
