Power, Ground and Vehicle Speed Input

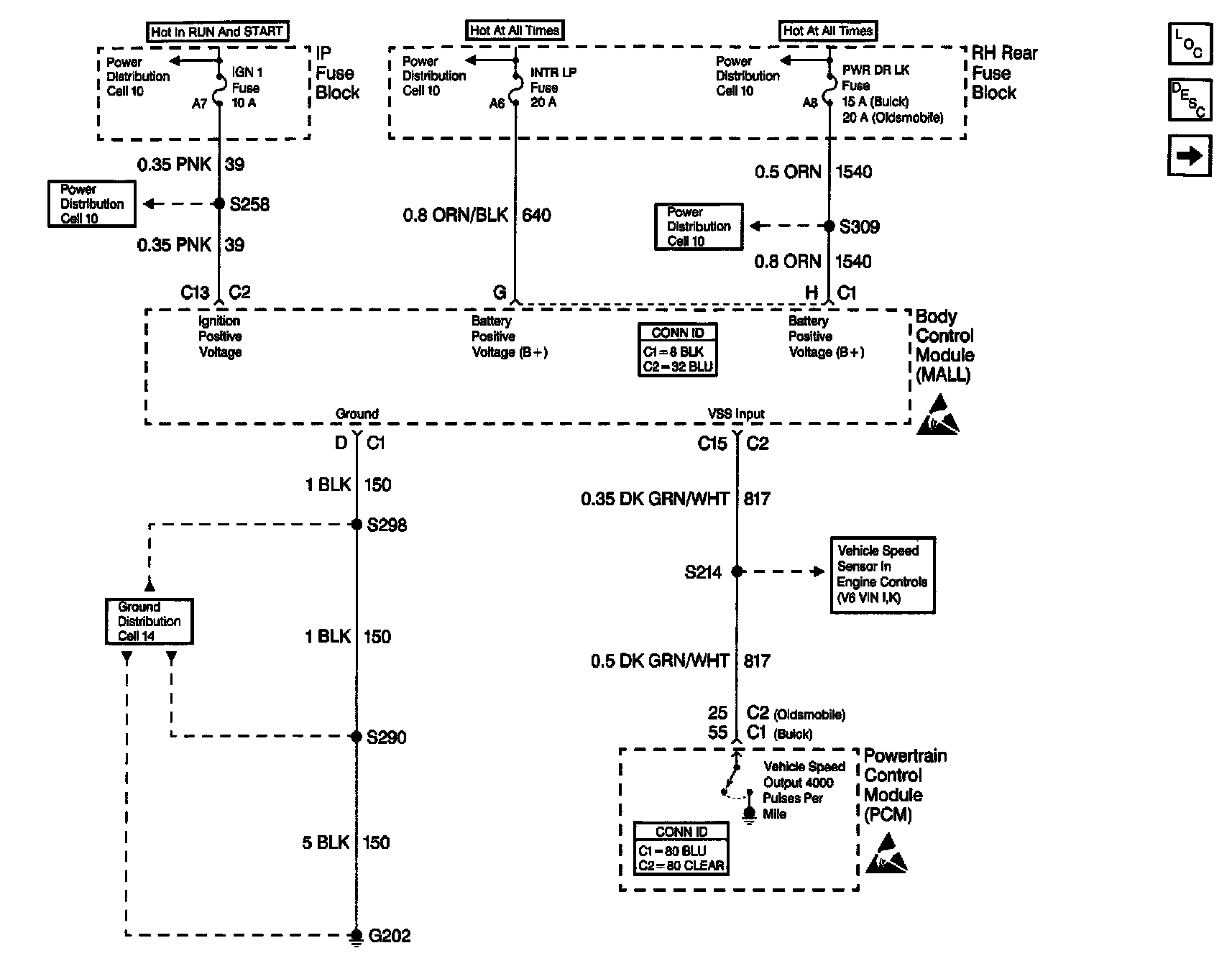

Body Control Module Schematics: Power, Ground And Vehicle Speed Input:
