Turn/Hazard Switch and Stop Lamp/BTSI Switch

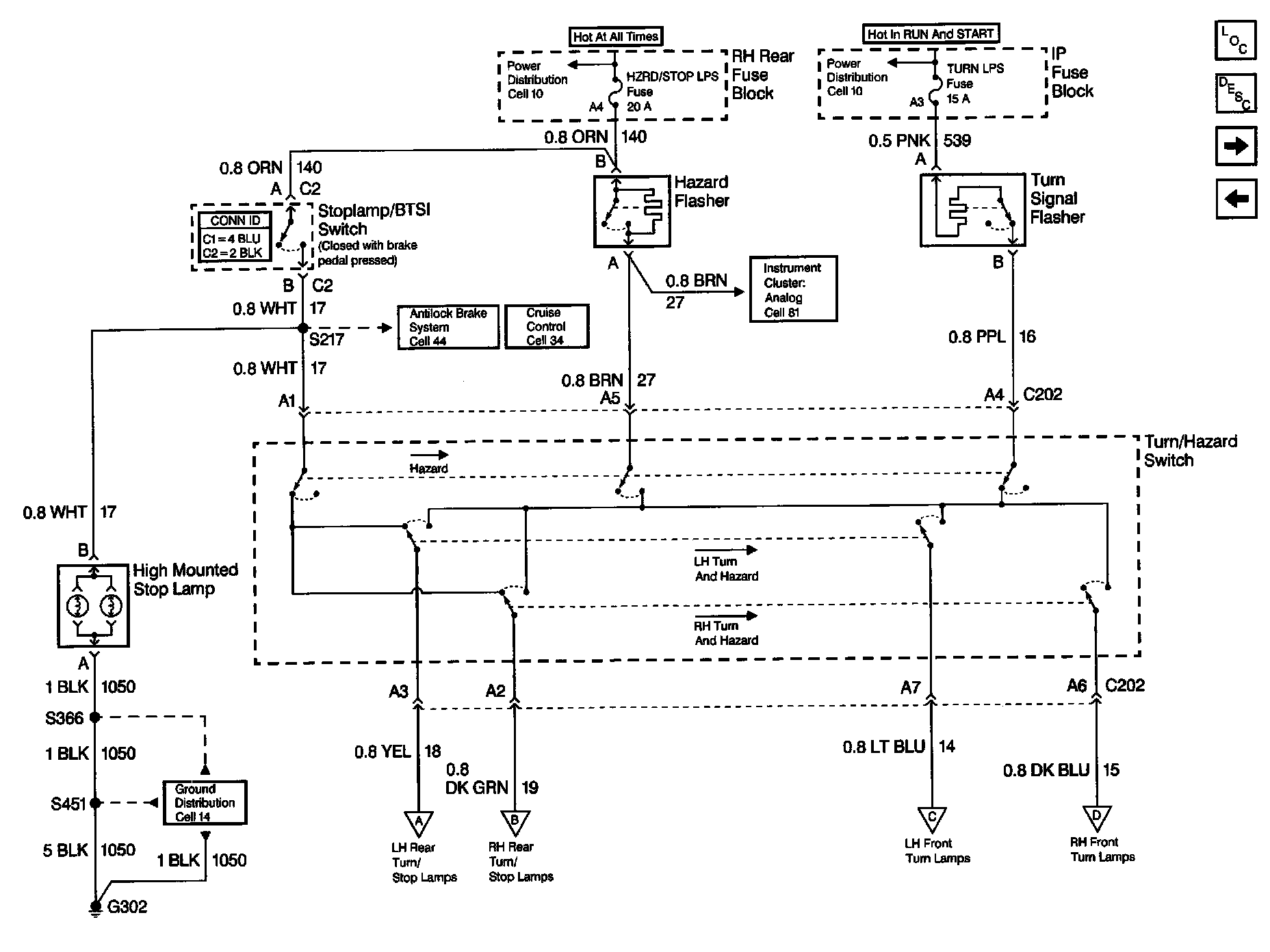

Exterior Lights Schematics (Oldsmobile): Turn/Hazard Switch And Stop Lamp/BTSI Switch:
