Oil Pressure Indicator
Oil Pressure Indicator

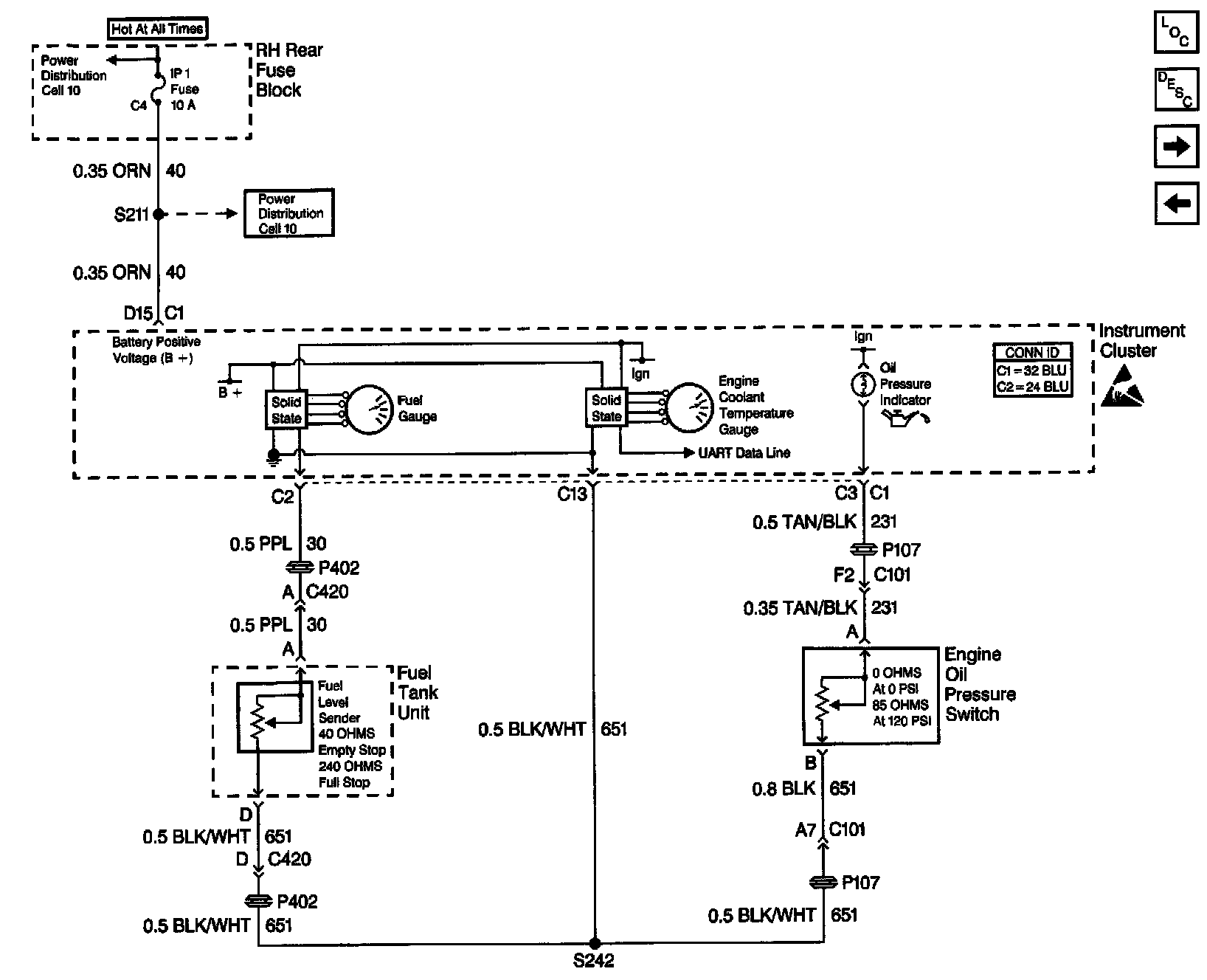

Instrument Cluster: Analog Schematics: Oil Pressure Indicator:
