Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Instrument Cluster Analog Schematics >> Body Control Module (Mall)

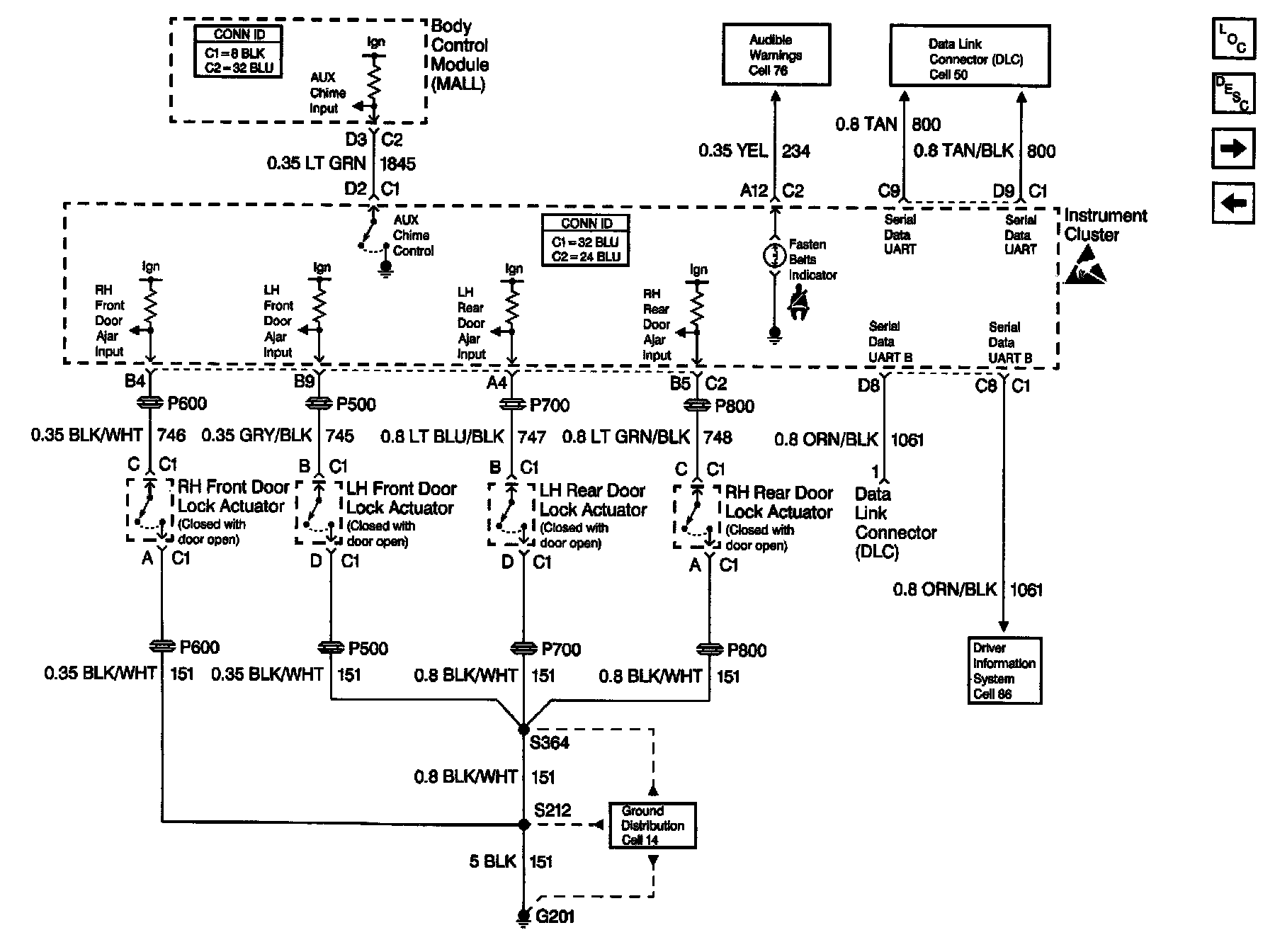

Body Control Module (Mall)

Instrument Cluster: Analog Schematics: Body Control Module (MALL):
