Airbag Indicator

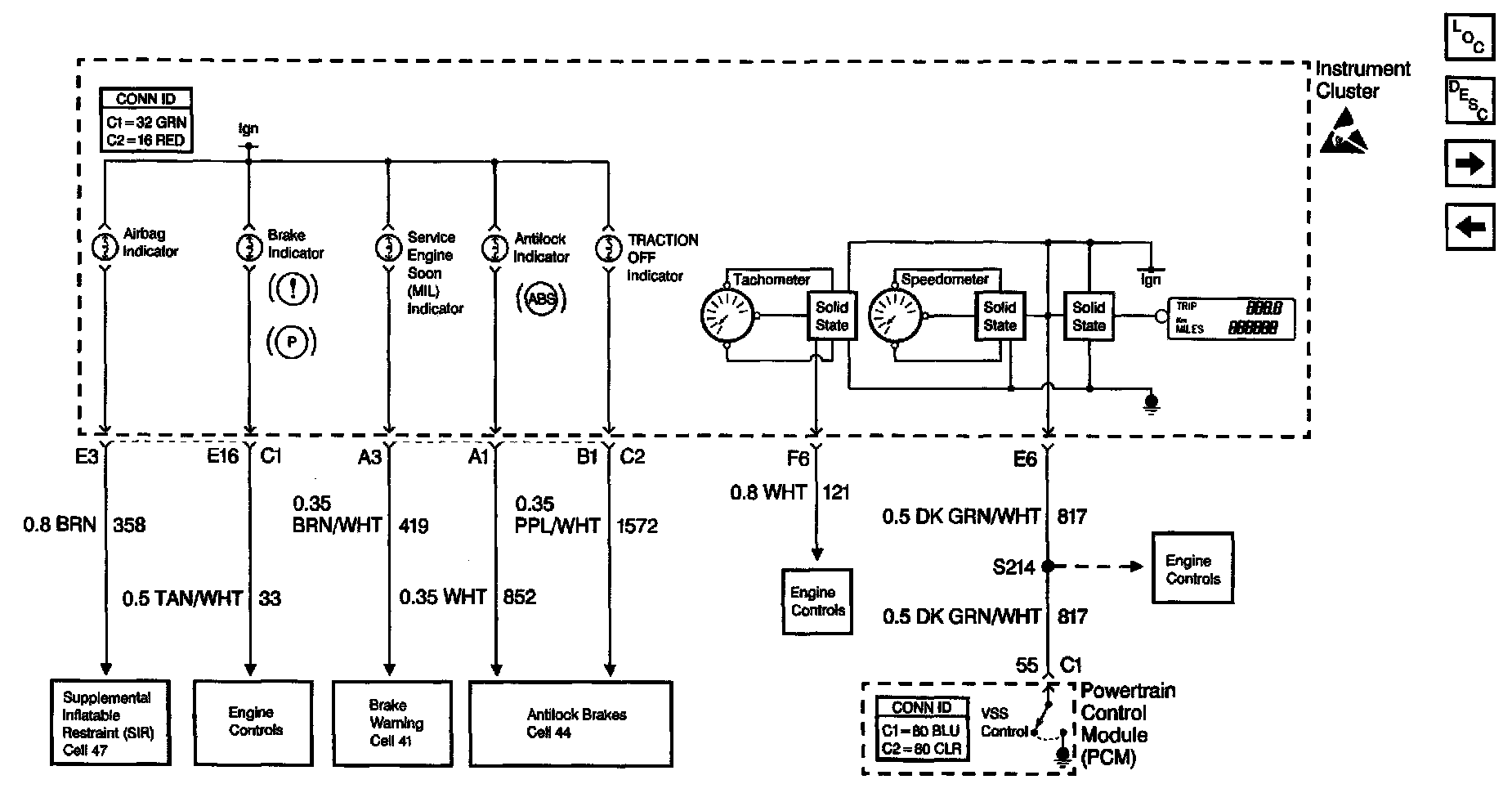

Instrument Cluster: Analog Schematics: Airbag Indicator:

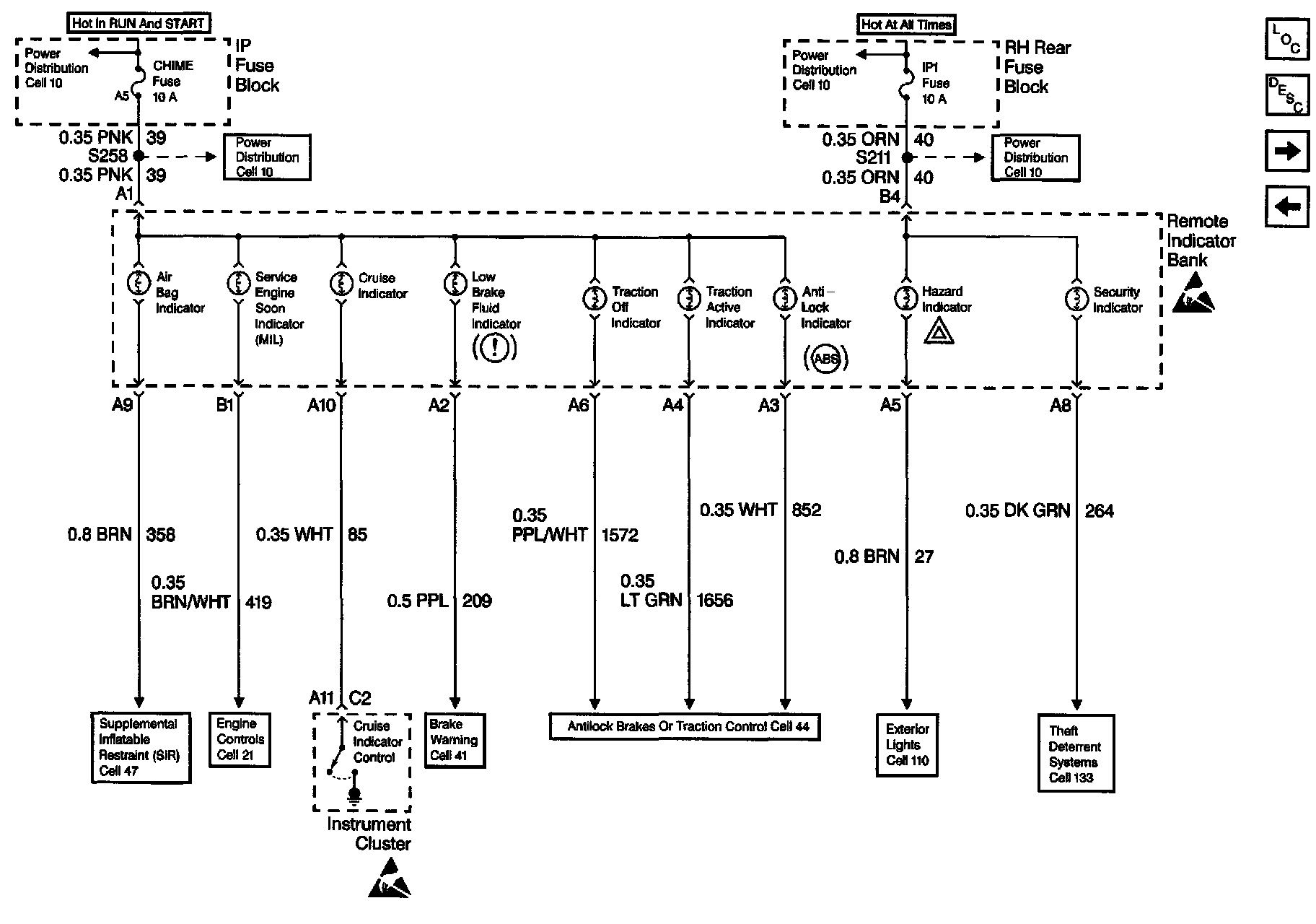

Instrument Cluster: Analog Schematics: Airbag Indicator:
