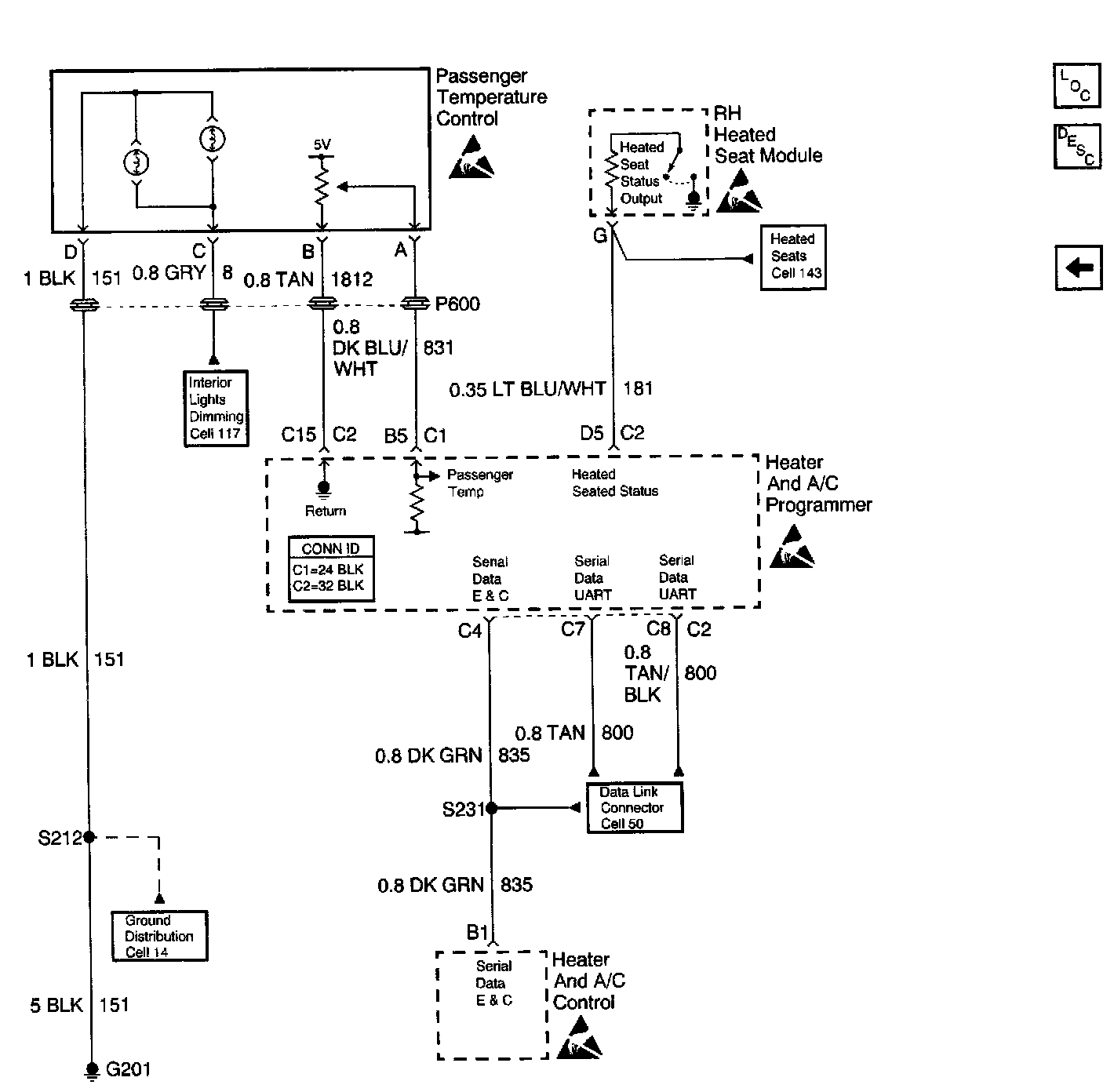

HVAC Air Delivery Schematics (Passenger Temperature Control)

HVAC Air Delivery Schematics: Passenger Temperature Control:
