Home >> Oldsmobile >> 1999 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Security Indicator

Security Indicator

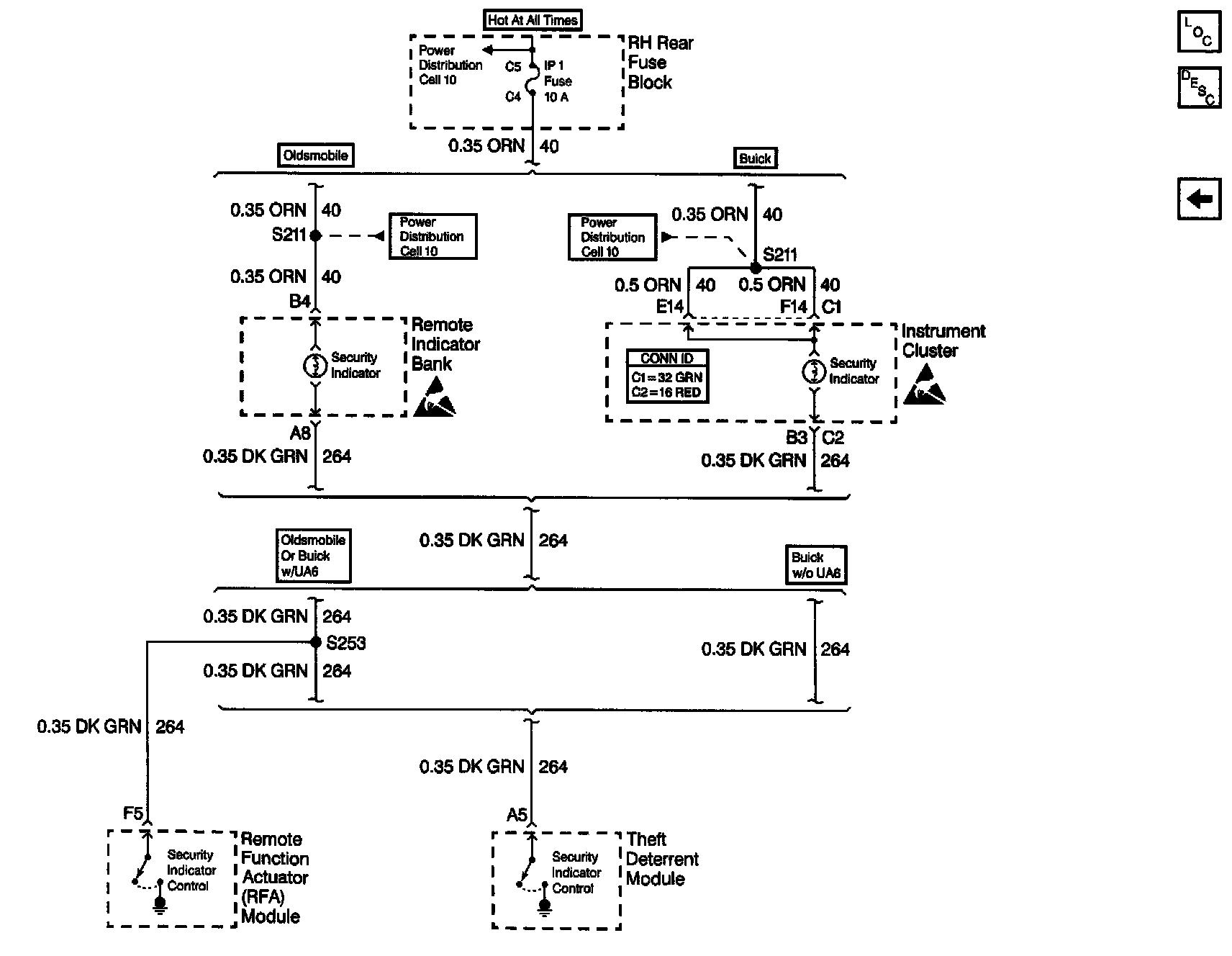

Theft Deterrent System Schematics: Security Indicator:
