C303

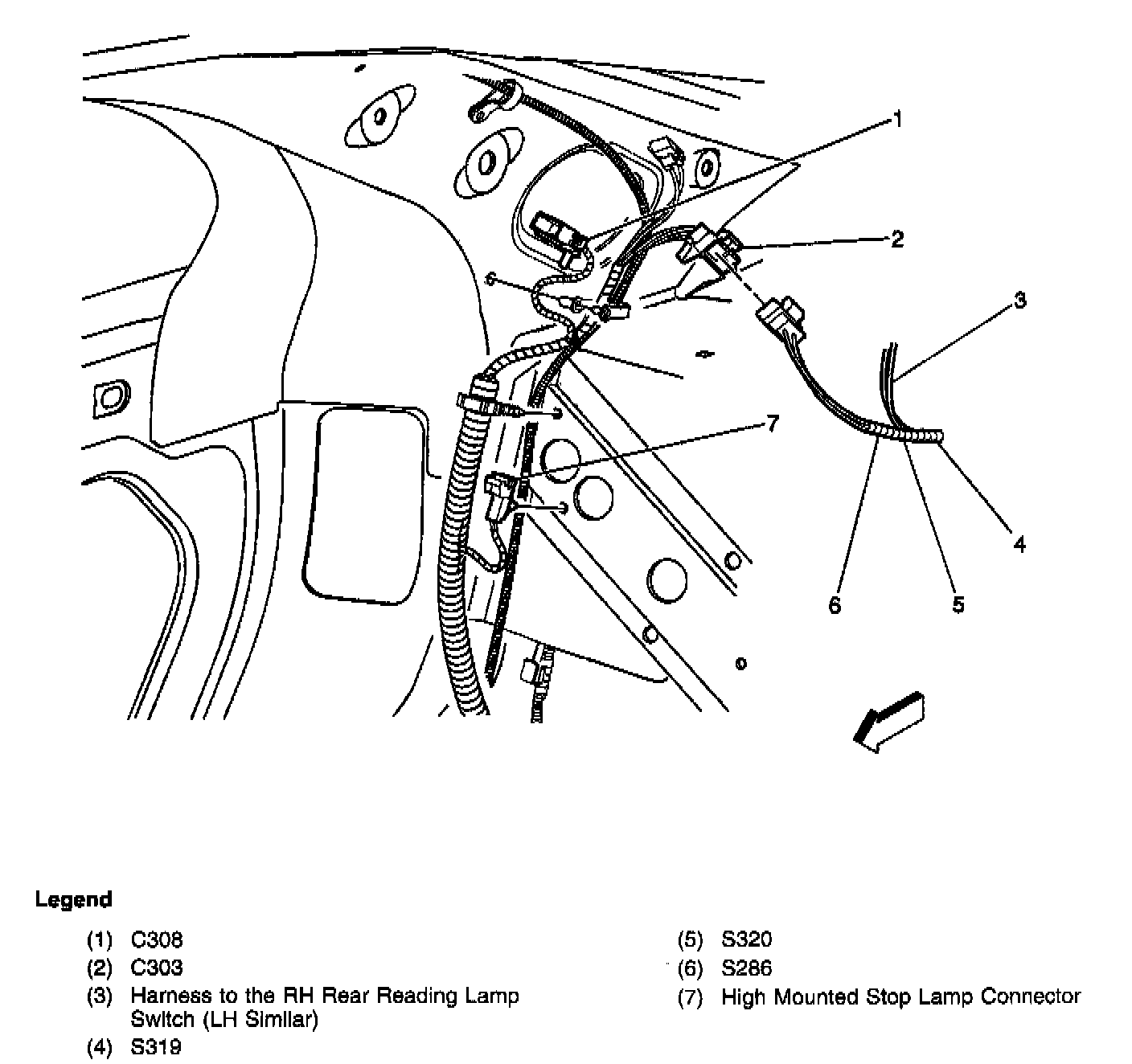

Passenger Compartment, At The Base Of The Right Rear Sail Panel:





(10 cavities) Body harness to the headliner harness, right hand rear of the passenger compartment
