C207

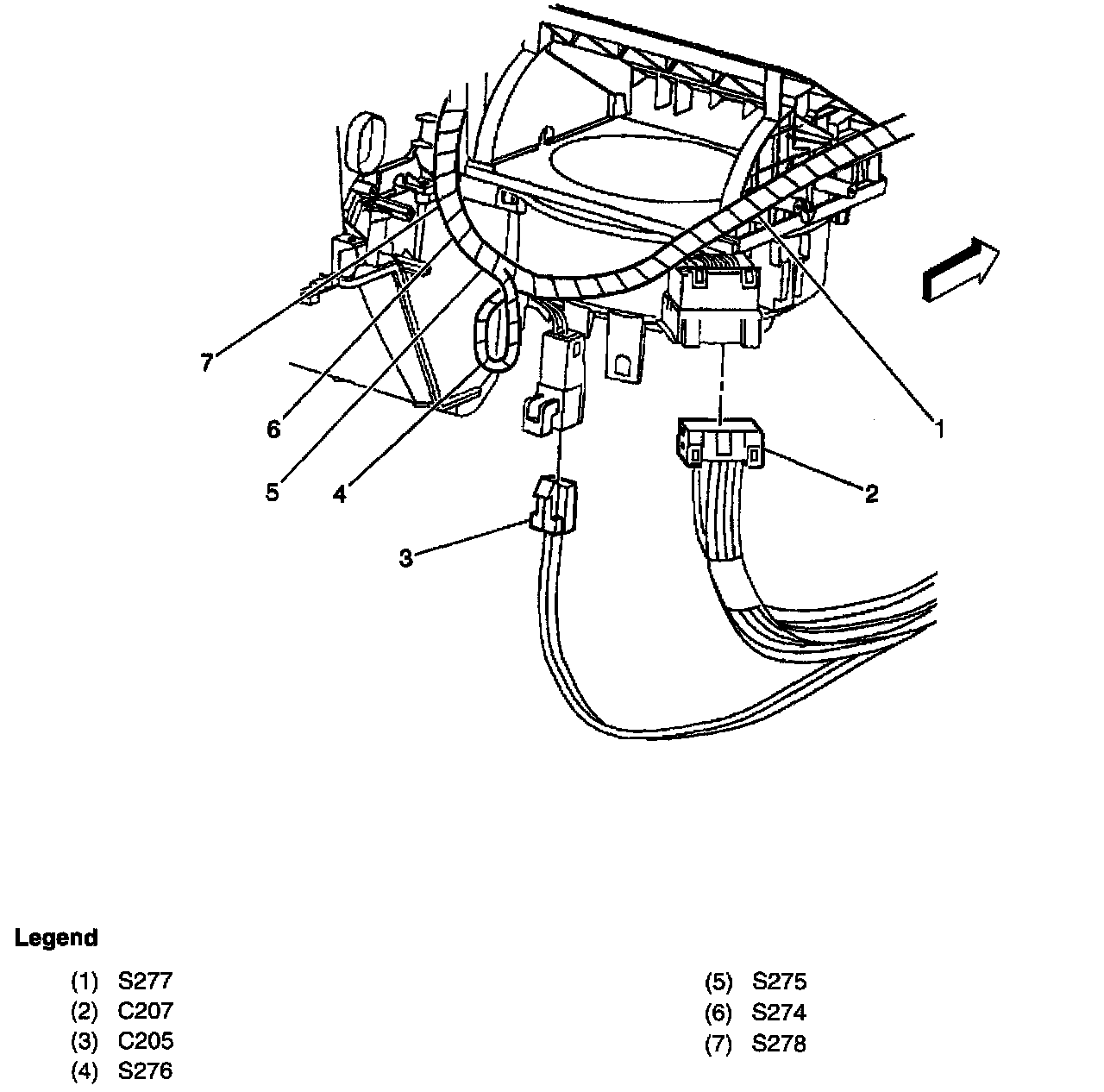

Passenger Compartment, Under The Right Side Of The Instrument Panel:





(16 cavities) Body harness to the HVAC harness, under the right hand of the instrument panel
