Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Control Module
>>
Windshield Wiper/Washer Module C1
Windshield Wiper/Washer Module C1

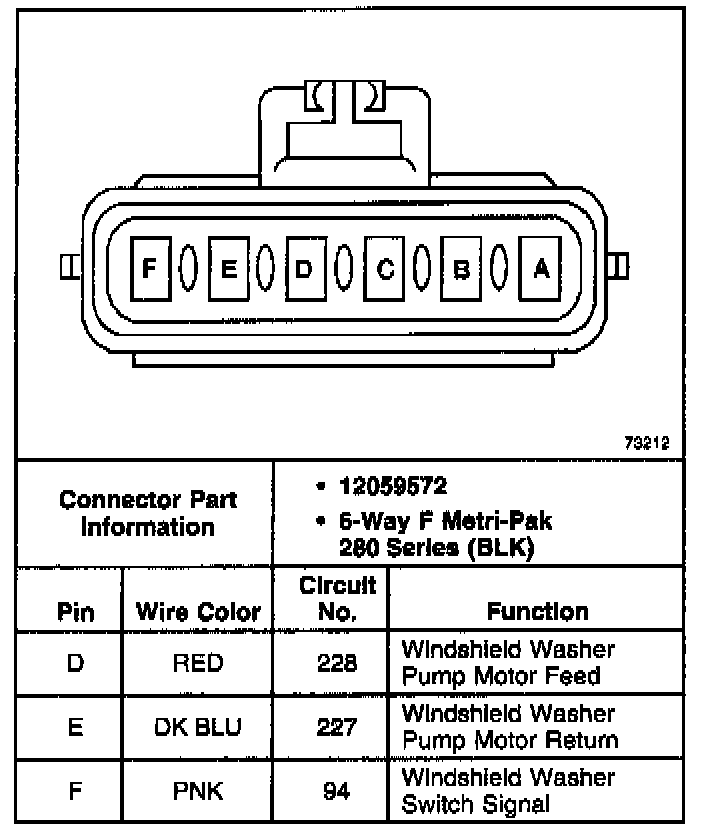

Windshield Wiper/Washer Module C1 (Part 2 Of 2):

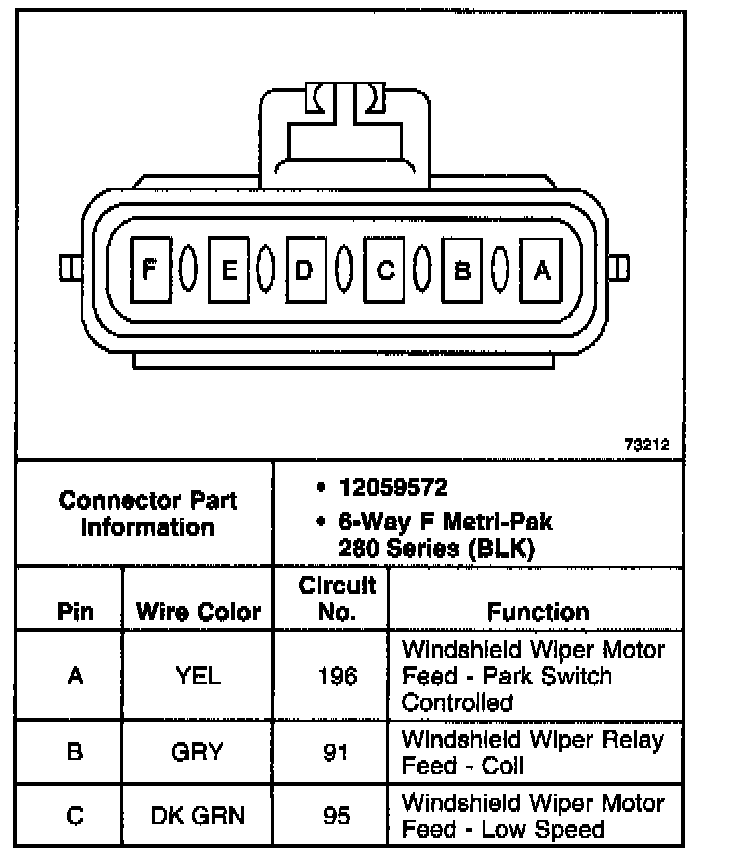

Windshield Wiper/Washer Module C1 (Part 1 Of 2):
