Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Seat Control Module
>>

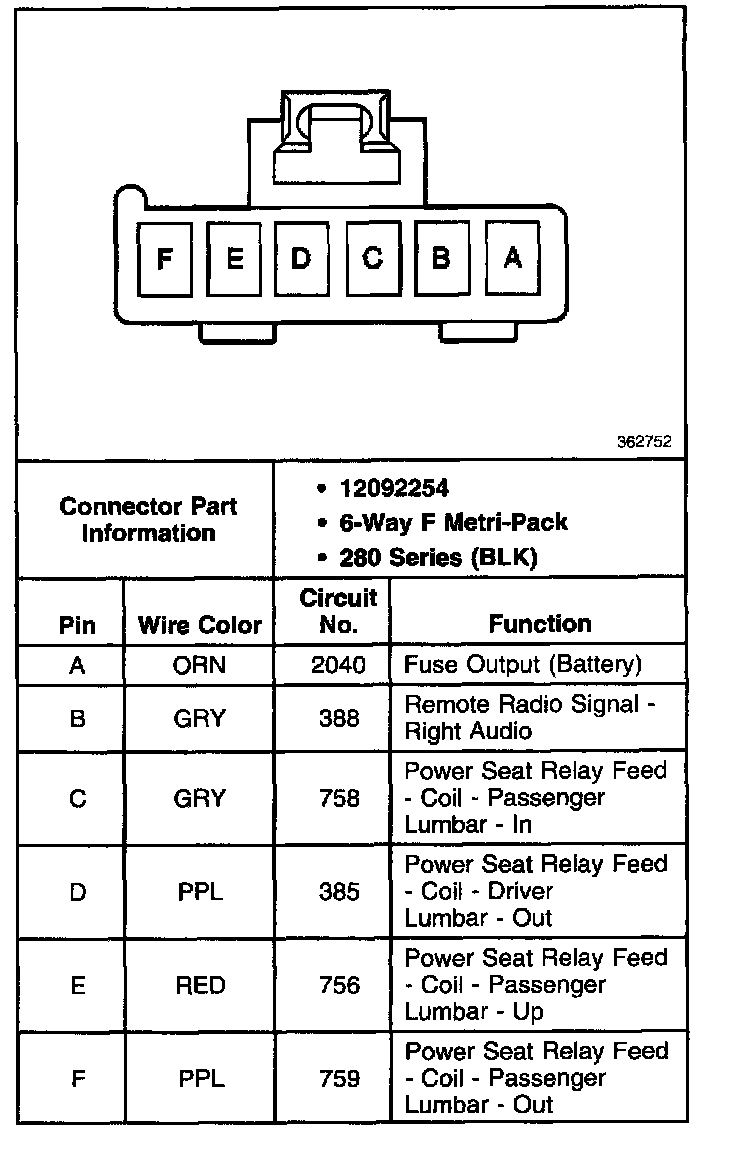

Lumbar Seat Module (C1)
Lumbar Seat Module (C1)
Lumbar Seat Module (C1):
